2.5.3 Roll paper cover (with a printer)
This section describes how to handle the roll paper cover and how to replace the roll paper.
2.5.3.1 Handling the roll paper cover
This section describes how to attach the roll paper cover and how to remove the roll paper cover.
−
Attaching the roll paper cover
(1) Open the roll paper cover.
(2) As shown in the Figure 2.5.3.1, align the groove A on the top of the HHC with the groove B on
the roll paper cover. Then, slide the roll paper cover in the direction of the arrow until it is
firmly in place.
(3) Close the printer cover.
−
Removing the roll paper cover
Perform the attaching procedure in reverse order.

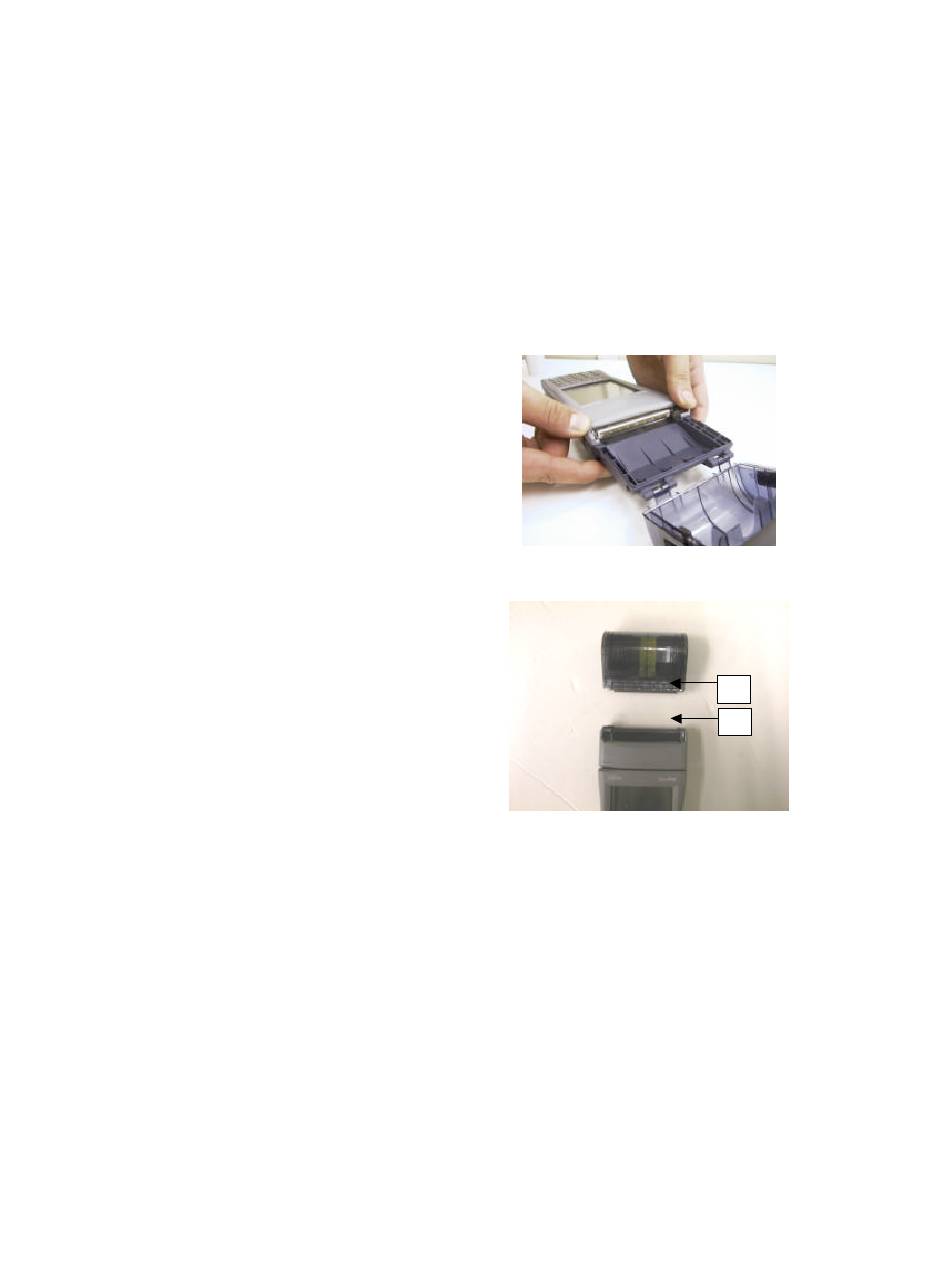

Figure 2.5.3.1 Roll paper cover
A
B
