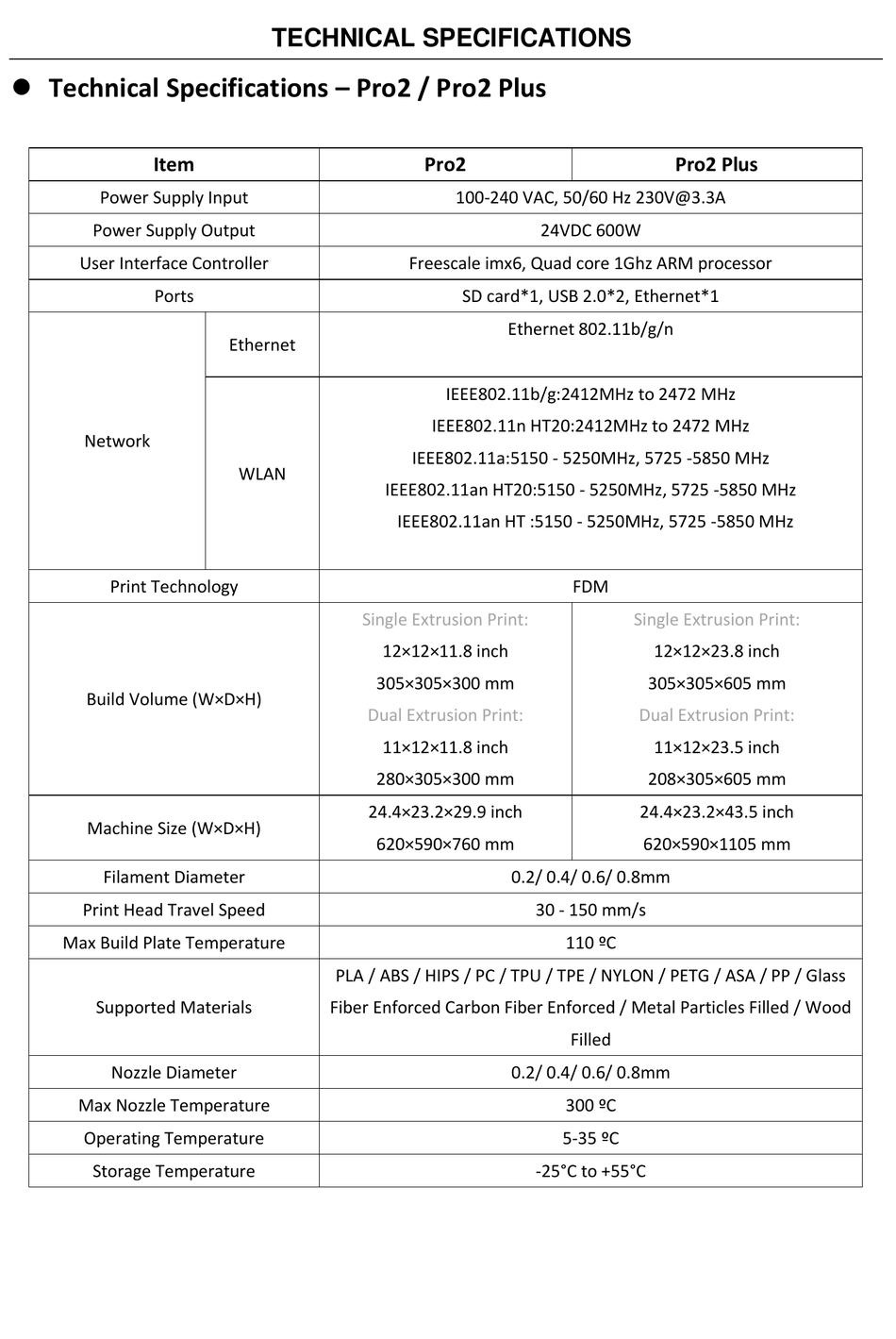

 Technical Specifications – Pro2 / Pro2 Plus
Item
Power Supply Input
Power Supply Output
User Interface Controller
Ports
Network
Print Technology
Build Volume (W×D×H)
Machine Size (W×D×H)
Filament Diameter
Print Head Travel Speed
Max Build Plate Temperature
Supported Materials
Nozzle Diameter
Max Nozzle Temperature
Operating Temperature
Storage Temperature
TECHNICAL SPECIFICATIONS
Ethernet
WLAN
IEEE802.11an HT20:5150 - 5250MHz, 5725 -5850 MHz
IEEE802.11an HT :5150 - 5250MHz, 5725 -5850 MHz
Single Extrusion Print:
12×12×11.8 inch
305×305×300 mm
Dual Extrusion Print:
11×12×11.8 inch
280×305×300 mm
24.4×23.2×29.9 inch
620×590×760 mm
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / Glass
Fiber Enforced Carbon Fiber Enforced / Metal Particles Filled / Wood
Pro2
100-240 VAC, 50/60 Hz 230V@3.3A
24VDC 600W
Freescale imx6, Quad core 1Ghz ARM processor
SD card*1, USB 2.0*2, Ethernet*1
Ethernet 802.11b/g/n
IEEE802.11b/g:2412MHz to 2472 MHz
IEEE802.11n HT20:2412MHz to 2472 MHz
IEEE802.11a:5150 - 5250MHz, 5725 -5850 MHz
FDM
0.2/ 0.4/ 0.6/ 0.8mm
30 - 150 mm/s
110 ºC
Filled
0.2/ 0.4/ 0.6/ 0.8mm
300 ºC
5-35 ºC
-25°C to +55°C
Pro2 Plus
Single Extrusion Print:
12×12×23.8 inch
305×305×605 mm
Dual Extrusion Print:
11×12×23.5 inch
208×305×605 mm
24.4×23.2×43.5 inch
620×590×1105 mm
