- Page 1 EDS-405A/408A Series Hardware Installation Guide Moxa EtherDevice™ Switch Ninth Edition, December 2014 2014 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. P/N: 1802004000018...
-
Page 2: Package Checklist
Overview The Moxa EtherDevice™ EDS-405A/408A series, which includes both 5 and 8-port smart Ethernet switches, is a cost-effective solution for your Ethernet connections. In addition, the built-in smart alarm function helps system maintainers monitor the health of your Ethernet network. Package Checklist The Moxa EDS-405A/408A switches are shipped with the following items. - Page 3 EDS-405A/408A Panel Layout (standard) 1. Grounding screw 2. Terminal block for power input PWR1/PWR2 and relay output 3. Heat dissipation vents 4. Console port 5. DIP switches 6. Power input PWR1 LED 7. Power input PWR2 LED 8. Fault LED 9.

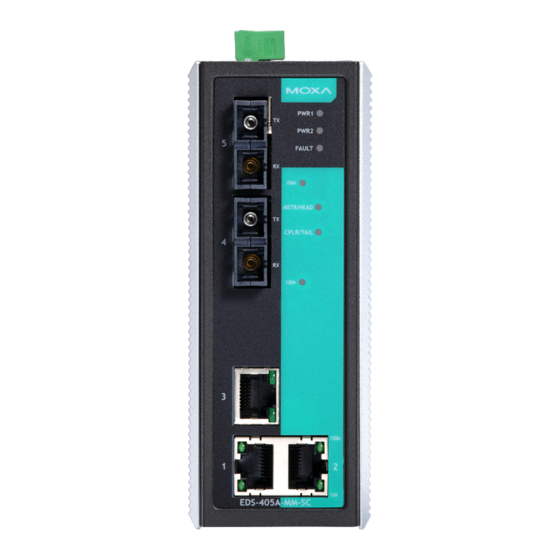

- Page 4 EDS-405A/408A-MM (SC-type) Panel Layout NOTE: The appearance of the EDS-405A-SS-SC is identical to that of the EDS-405A-MM-SC. The appearance of the EDS-408A-SS-SC is identical to that of the EDS-408A-MM-SC. 1. Grounding screw 2. Terminal block for power input PWR1/PWR2 and relay output 3.
- Page 5 EDS-405A/408A-MM (ST-type) Panel Layout 1. Grounding screw 2. Terminal block for power input PWR1/PWR2 and relay output 3. Heat dissipation vents 4. Console port 5. DIP switches 6. Power input PWR1 LED 7. Power input PWR2 LED 8. Fault LED 9.
-
Page 6: Eds-408A-3M Panel Layout (Sc/St-Type)
EDS-408A-3M Panel Layout (SC/ST-type) NOTE: The appearance of the EDS-408A-3S-SC, EDS-408A-1M2S-SC, and EDS-408A-2M1S-SC are identical to that of the EDS-408A-3M-SC. 1. Grounding screw 2. Terminal block for power input PWR1/PWR2 and relay output 3. Console port 4. DIP switches 5. Heat dissipation vents 6. - Page 7 Mounting Dimensions (unit = mm) Unit = mm (inch) - 7 -...
-
Page 8: Din-Rail Mounting
DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be fixed to the back panel of the EDS-405A/408A when you take it out of the box. If you need to reattach the DIN-Rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the following figures. -
Page 9: Atex Information
ATEX Information 1. Certificate number: DEMKO 08 ATEX 0712961X 2. Ambient range (-40°C ≤ Tamb ≤ 75°C) 3. Certification string: EDS-405A: Ex nA nC IIC T4 Gc EDS-408A: EX nA nC op is IIC T4 Gc 4. Standards covered ( EN 60079-0:2012, EN 60079-15:2010) 5. -
Page 10: Wiring The Relay Contact
ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. Wiring the Relay Contact The Relay Contact consists of the two middle contacts of the terminal block on the EDS-405A/408A’s top panel. Refer to the next section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor. -
Page 11: Communication Connections
Communication Connections EDS-408A models have 5, 6, or 8 10/100BaseT(X) Ethernet ports, and 3, 2, or 0 (zero) 100BaseFX (SC/ST-type connector) fiber ports. EDS-405A models have 3 or 5 10/100BaseT(X) Ethernet ports, and 2 or 0 (zero) 100 BaseFX (SC/ST-type connector) fiber ports. 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) ports located on the EDS’s front panel are used to connect to Ethernet-enabled devices. -
Page 12: Redundant Power Inputs
Remember to connect the Tx (transmit) port of device I to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II. If you make your own cable, we suggest labeling the two sides of the same line with the same letter (A-to-A and B-to-B, as shown below, or A1-to-A2 and B1-to-B2). -
Page 13: Turbo Ring Dip Switch Settings
Turbo Ring DIP Switch Settings EDS-405A/408A series switches are plug-and-play managed redundant Ethernet switches. The proprietary Turbo Ring protocol was developed by Moxa to provide better network reliability and faster recovery time. Moxa Turbo Ring’s recovery time is less than 300 ms (Turbo Ring) or 20 ms (Turbo Ring V2) —compared to a 3 to 5-minute recovery time for commercial switches—decreasing the possible loss caused by network failures in an industrial setting. -
Page 14: Led Indicators
NOTE If you do not enable any of the EDS-405A/408A switches to be the Ring Master, the Turbo Ring protocol will automatically choose the EDS-405A/408A with the smallest MAC address range to be the Ring Master. If you accidentally enable more than one EDS-405A/408A to be the Ring Master, these EDS-405A/408A switches will auto-negotiate to determine which switch will be the Ring Master. -
Page 15: Auto Mdi/Mdi-X Connection
TP port’s 100 Mbps link is active. 100M GREEN Blinking Data is being transmitted at 100 Mbps. (TP) TP Port’s 100 Mbps link is inactive. FX port’s 100 Mbps is active. 100M GREEN Blinking Data is being transmitted at 100 Mbps. (FX) FX port’s 100 Mbps is inactive. - Page 16 Power Input Voltage EDS-405A/408A: 12 to 45 VDC, redundant inputs EDS-408A-3S-SC-48: ±24/±48 VDC (-60 to -19 VDC or 19 to 60 VDC), redundant inputs (The mixing of power polarity system is prohibited.) Input Current (@ 24 V) EDS-405A: Max. 0.24 A EDS-408A: Max.
- Page 17 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax: +49-89-3 70 03 99-99 Fax: +886-2-8919-1231 - 17 -...
