Programming The Facp Through Gst-Ifpx-Def Defining Tool; Download Thru Usb Interface - GST -IFP4M Installation And Operation Manual

GST-IFP4M Intelligent Fire Alarm Control Panel
Installation and Operation Manual
4.2 Programming the FACP Through GST-IFPx-Def Defining
Tool
Configurations and definitions can be downloaded to the FACP through USB or Ethernet
interfaces after they are programmed by using GST-IFPx-Def (version 1.0 or above)
Defining Tool.

4.2.1 Download thru USB interface

After programming the FACP using GST-IFPx-Def Defining Tool, save the configuration
and definition to a USB stick, and then insert the USB stick into the USB port on the
SD-400 LCD Drive Board of the FACP.

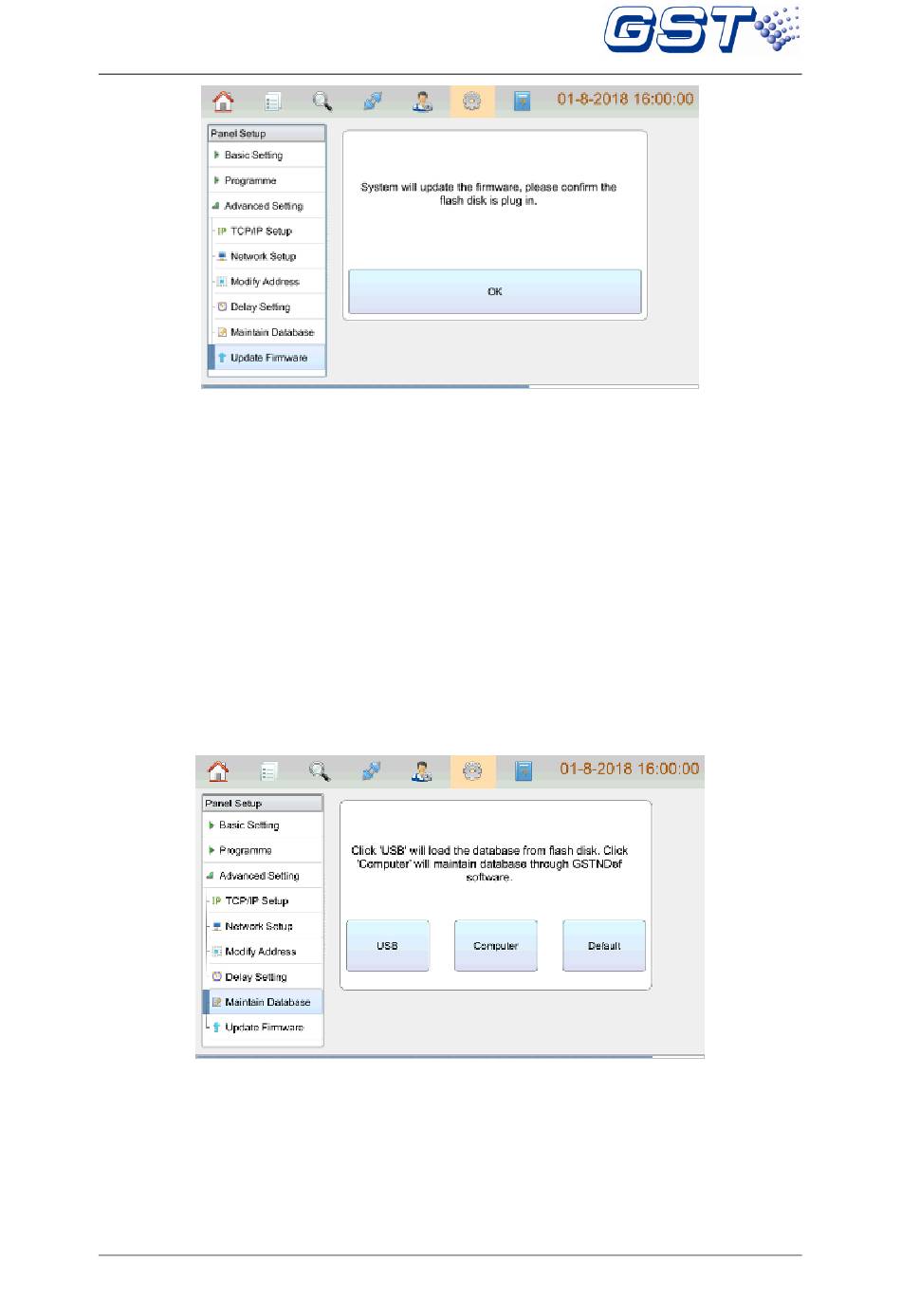

Clicking Maintain Database in Advanced Setting menu enters the screen as shown in
Fig4.37. After clicking the USB, the FACP can automatically update according to data
from U-disk.
Fig4.36
Fig 4.37
Page
62
