Summary of Contents for GST GST-FT8WN

  • Page 1 GST-FT8WN Fire Telephone Panel Installation and Operation Manual...
  • Page 2: Table Of Contents

    GST-FT8WN Fire Telephone Panel The Intelligent Solution CONTENTS GENERAL............................1 TECHNICAL SPECIFICATIONS ....................1 PANEL INSTRUCTION........................2 ....................2 PPEARANCE AND TRUCTURE .........................3 HE FRONT SURFACE ..........................3 ..........................3 NDICATORS ........................4 IGITRON ISPLAY FIRE TELEPHONE SYSTEM DESIGN..................4 .................4 TAND LONE ELEPHONE YSTEM ...................5 ETWORKED ELEPHONE YSTEM MOUNTING &...
  • Page 3: General

    The Intelligent Solution 1 General GST-FT8WN fire telephone panel is specialized for emergency communication, builds up convenient and prompt 2-way communication in case of fire and other abnormal conditions. It is an indispensable device in fire protection system. The panel has features as below:...
  • Page 4: Panel Instruction

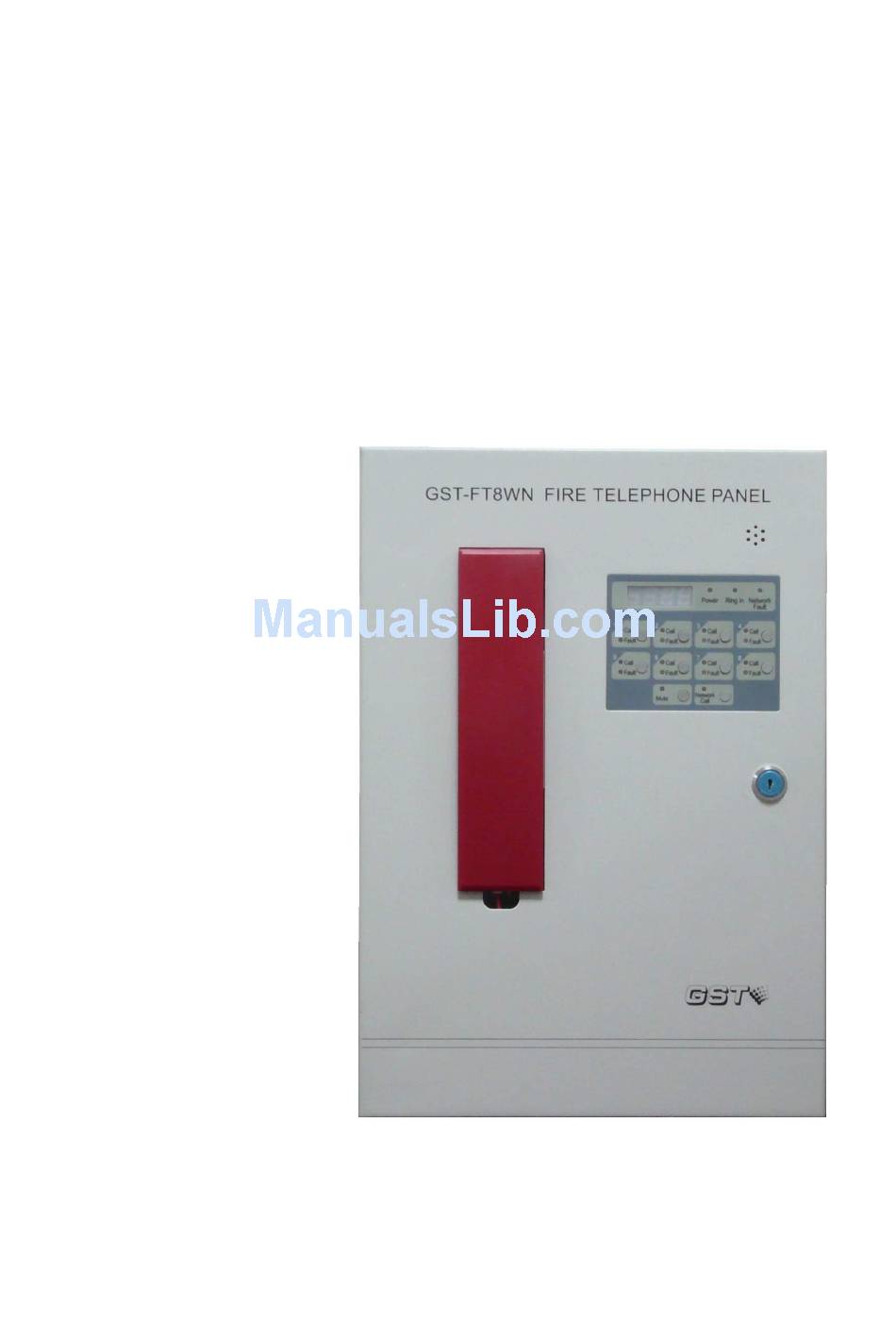

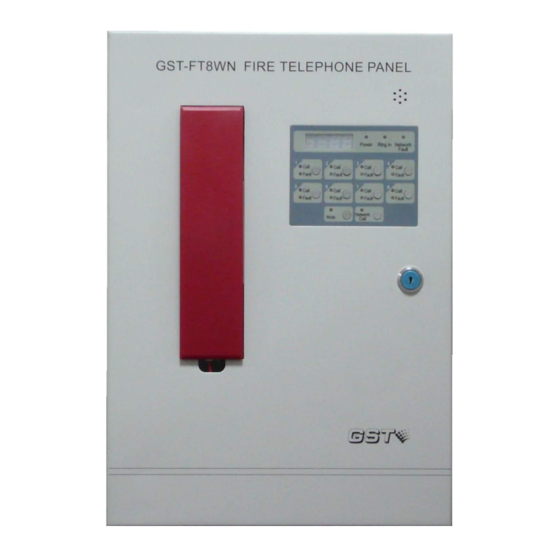

    Main panel: The No.1 panel in the fire telephone panel network Sub-panel: Panels other than No.1 in the fire telephone panel network 3 Panel Instruction Appearance and Structure GST-FT8WN fire telephone panel is wall mount type, the appearance is shown in Fig.3-1 Fig.3-1 Page 2...
  • Page 5: The Front Surface

    GST-FT8WN Fire Telephone Panel The Intelligent Solution The front surface Fig. 3-2 The Keys Description “Mute” Stop the alarm sound caused by fault “Network Call” Answer or start network call Zone 1-8 Answer, call or hang up the corresponding zone.
  • Page 6: Digitron Display

    GST-FT8WN Fire Telephone Panel The Intelligent Solution “Power” LED Green, lit based on usual power supply “Mute” Red, lit when panel sound alarm silenced “Rev” Green, lit when panel receiving network data “Trans” Red, lit when panel sending network data “Rev”...
  • Page 7: Networked Fire Telephone System

    GST-FT8WN Fire Telephone Panel The Intelligent Solution Networked Fire Telephone System The system consists of a group of panels as many as 8. The panel with the address 1 is the main panel and the rests are sub-panels. Please refer to commission section for setting up addresses.
  • Page 8: Mounting Holes

    GST-FT8WN Fire Telephone Panel The Intelligent Solution Note: the impedance of single line not more than 20 Mounting Holes Fig. 5-1 Fig. 5-1 shows the mounting holes of the panel Hole distance in the vertical direction 318mm Hole distance in the horizontal direction 218 mm...
  • Page 9: System Commissioning

    GST-FT8WN Fire Telephone Panel The Intelligent Solution System Commissioning Please Make Sure the Correct Wiring before Commissioning. Set panel address For standalone fire telephone system, the address can be assigned 1 or keep the default setting There must be one panel assigned 1 in the network fire telephone system Opening the door of the panel, the red PIN switch in the left corner is using for panel address setting.
  • Page 10: User Guide

    GST-FT8WN Fire Telephone Panel The Intelligent Solution 6 User Guide Panel Call Handset Press a key of zone 1 to 8, the corresponded zone will be called with “Call” LED slow-flashing. The conversation will be set when handset picked-up, with “Call” LED lit showing status.
  • Page 11: Troubleshooting

    GST-FT8WN Fire Telephone Panel The Intelligent Solution 7 Troubleshooting Zone Fault The zone fault shows an open or short circuit between panel and handsets, or the End of Line Resistor not connected. Check the cable by multi-meter, whether the resistance is roughly 10k .
  • Page 12 GST China Gulf Security Technology Co., Ltd. No. 80, Changjiang East Road, QETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502528 Fax: +86 (0) 335 8508942 Email: sales@gst.com.cn www.gst.com.cn GST UK Global System Technology PLC Lion Court, Staunton Harold Hall,...
