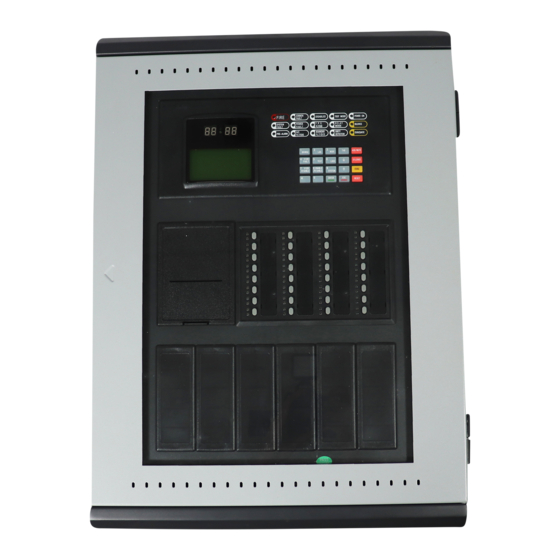

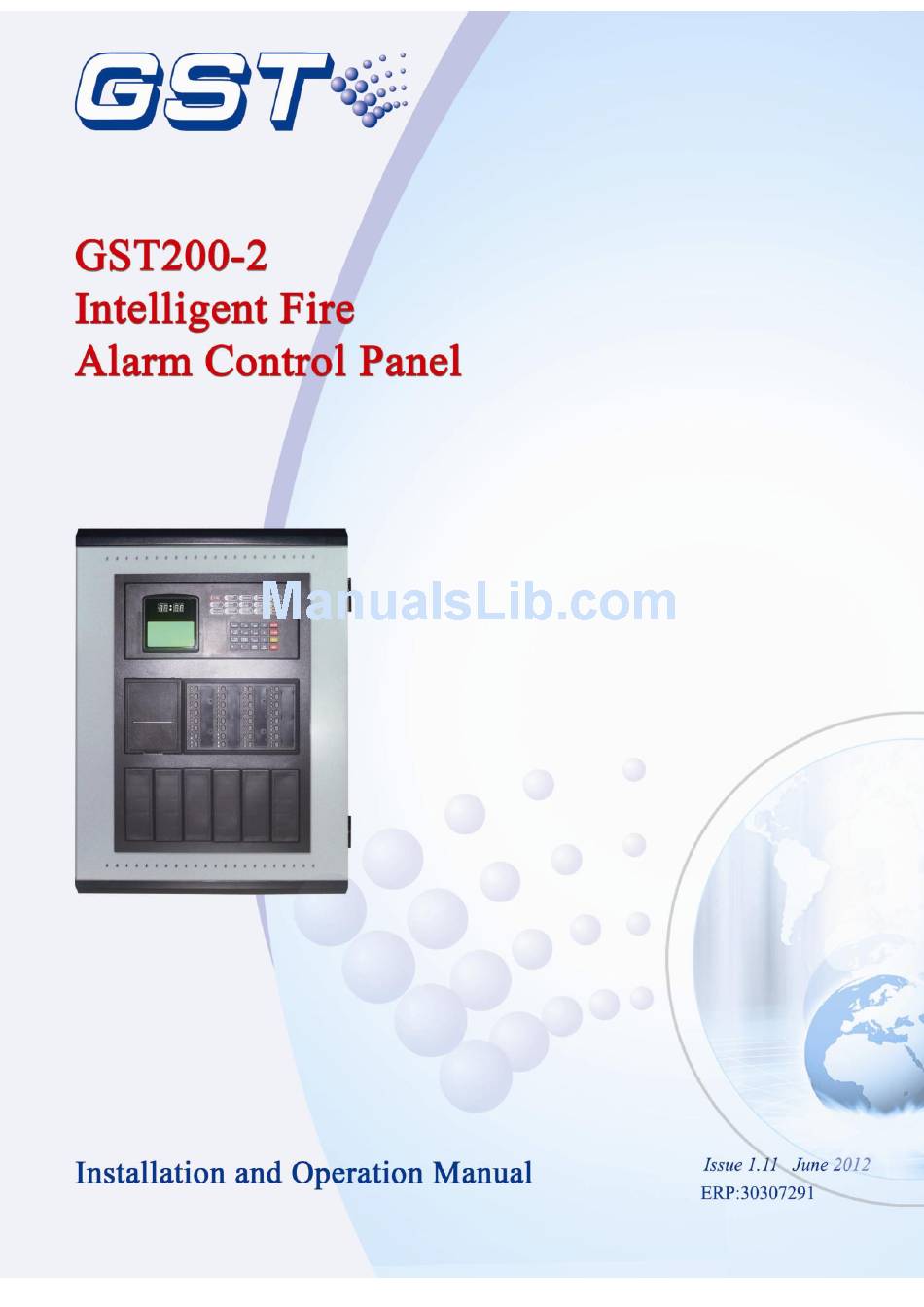

GST GST200-2 Installation And Operation Manual

Intelligent fire alarm control panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GST200-2 and is the answer not in the manual?

Questions and answers

Marcelle da silva justino
February 12, 2025

Qual é a senha do operador

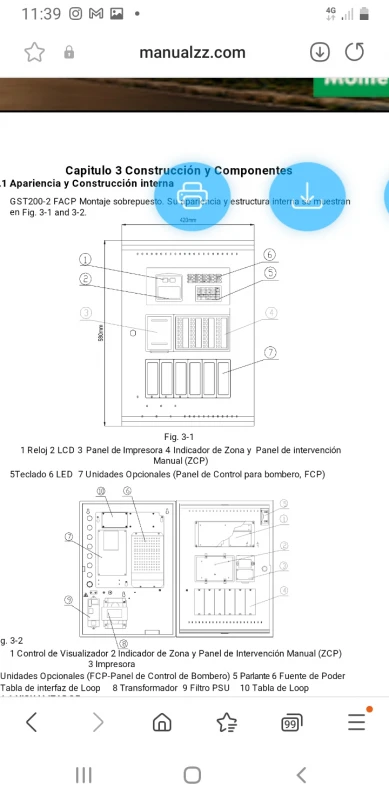

User image 67acb08ab35d5
0
1 comments:
Mr. Anderson
February 12, 2025

The operator password for GST model GST200-2 is not provided in the given context. However, the manual describes the process for modifying the operator and manager passwords.

This answer is automatically generated

0

Related Manuals for GST GST200-2

Summary of Contents for GST GST200-2

  • Page 2: Table Of Contents

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual CONTENTS Installation Precautions ....................1 Preface EN 54 Information ................... 2 Chapter 1 Product Introduction................... 3 Chapter 2 Technical Specifications ................4 2.1 Operating Voltage ....................4 2.2 Standby Batteries ....................4 2.3 Communication Loop Parameters ................
  • Page 3 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual 4.7 Field Device Commission..................21 Chapter 5 Display and Disposal of System Information ........22 5.1 Normal Information ....................22 5.2 Fire Alarm ......................22 5.2.1 Fire Alarm Screen ................... 22 5.2.2...

  • Page 4: Installation Precautions

    Consult with the appropriate Authority Having Jurisdiction (AHJ) for confirmation of the requirements.  GST200-2 Fire Alarm Control Panel (FACP) shall only be installed and serviced by trained specialist.  Disconnect all sources of power before servicing. Control unit and associated equipment may be damaged by removing and/or inserting cards, modules, or interconnecting cables while the unit is energized.

  • Page 5: Preface En 54 Information

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Preface EN 54 Information  GST200-2 Intelligent Fire Alarm Control Panel (FACP) complies with the EN 54 requirements of EN 54-2 1997+A1: 2006 and EN 54-4 1997+A1: 2002+A2: √ 2006. In addition to the basic requirements of these standards, the panel conforms to the following optional requirements.

  • Page 6: Chapter 1 Product Introduction

    Installation and Operation Manual Chapter 1 Product Introduction GST200-2 Intelligent Fire Alarm Control Panel (FACP) is designed to comply with EN 54-2 standard with qualities of simple installation, operation, and easy maintenance. It is used in fire alarm system with the following features: ...

  • Page 7: Chapter 2 Technical Specifications

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Chapter 2 Technical Specifications 2.1 Operating Voltage +10%  Input Voltage: 220V/230VAC -15%  Frequency: 50Hz/60Hz  Input Current: 0.5A  Fuse: 2A delay  Recommended Wiring: 1.5mm or above screened cable, complying with local installation code.

  • Page 8: Rs232 Communication Loop

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual  Nexans NX 200 and 200 Plus (LPCB tested)  Prysmian FP 200 and 200 Gold  Draka Firetuf and Firetuf Plus And all LPCB approved Fire cables  Recommended Cable Length ≤1000m 2.3.2 RS232 Communication Loop...

  • Page 9: Output (+, -)

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual  Output Voltage: 21VDC ～27VDC  Output Current: 0mA～500mA  End of Line Resistor: 4.7kΩ 2.5.2 F.P.E. OUTPUT (+, -)  Output Voltage: 21VDC ～27VDC  Output Current: 0mA～500mA ...

  • Page 10: Chapter 3 Construction And Components

    Installation and Operation Manual Chapter 3 Construction and Components 3.1 Appearance and Internal Construction GST200-2 FACP is flush-mounted. Its appearance and internal structure are shown in Fig. 3-1 and 3-2. Fig. 3-1 1 Clock 2 LCD 3 Printer panel 4 Zone indication and manual intervention panel (ZCP) 5 Keypad 6 LED 7 Optional units (Fireman’s Control Panel, FCP)

  • Page 11: Description Of Leds

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual The display area consists of clock, LCD, LED and keypad, which are shown in Fig. 3-3. Fig. 3-3 3.1.2 Description of LEDs  FIRE: Red. It illuminates when the FACP detects an alarm condition of connected detectors.

  • Page 12: Description Of Keys

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual  S/C FLT/DIS: Yellow. It flashes when SOUNDER CIRCUIT OUTPUT is in fault condition. It illuminates when SOUNDER CIRCUIT OUTPUT is disabled. It goes out automatically after the fault or disabled condition is cleared.

  • Page 13: Zone Indication And Manual Interventional Panel (Zcp)

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual  SYSTEM: System set-up key, used for setting system time, modifying operator password and manager password, setting network system, setting beginning zone number, setting output mode, system initialization and viewing supervisory data of addressable devices.

  • Page 14: Components

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual  The key of a zone is used to activate/silence sounder strobes in the zone. 3.1.4.2 Device Operation  Command LED: Red. It illuminates when start command is given and goes out when stop command is given or the FACP resets.
  • Page 15 GST200-2 provides two kinds of network cards: Local Network Card (RS485 card) and Monitor & Control Card (RS232 card). Their structures are shown in Fig. 3-6.

  • Page 16: Peripheral Devices

    5. 20P data cable connecting with main board. 6. Standard RS232 interface connecting with GMC. Note: You need to include an RS232 card in your first order of GST200-2 FACP. Only with this card, device definition and C&E equations can be downloaded from PC.

  • Page 17: Repeater Panel

    FACP at the fire control center or by manual call points. A series of GST addressable sounder strobes such as I-9403 can be connected to the loop of GST200-2. After activated, it will generate strong audible/ visual alarm signal.

  • Page 18: Chapter 4 Installation

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Chapter 4 Installation The steps below are guidance for installation of the FACP. Check if you have received all items ordered. Install the cabinet. Power up the FACP and carry out start-up inspection.

  • Page 19: Start-Up Check

    4.4 Connections of Peripheral Devices 4.4.1 Connection of Mains Power  GST200-2 Fire Alarm Control Panel receives power from a 220V/230VAC, 50Hz/60Hz supply. The current flows through a filter to the transformer. The transformer converts the input mains voltage to 27VAC.

  • Page 20: Connection Of Batteries

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Fig. 4-2a 4.4.2 Connection of Batteries Refer to the Standby Battery Calculations section for the size of the batteries required for a particular installation. Connect the batteries according to Fig. 4-2b and then connect with the battery terminal...
  • Page 21 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Description:  CLASS CHANGE (XT3): Shorting this terminal can enable SOUNDER CIRCUIT OUTPUT (XT7) to output.  FAULT OUTPUT (XT8): Fault relay is closed in normal condition, and it’s opened in fault condition.
  • Page 22 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Diode Diode End-of-line SOUNDER CIRCUIT Resistor 4.7kΩ Sounder Sounder OUTPUT (XT7) Fig. 4-4 A 4.7kΩ resistor is connected at the SOUNDER CIRCUIT OUTPUT (XT7) as factory default. Please remove it and keep it well before connection. Connect the loop in correct polarity and add the resistor to the end of the line.

  • Page 23: Connection Checking And Device Registration

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual 4.4.3.4 Connection of Class A Loop A Class A loop is shown in Fig. 4-7. Loop LOOP OUT Addressable Isolator (XT4) Field Devices Addressable Loop LOOP IN Isolator Field Devices (XT2) Fig.

  • Page 24: Device Definition

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual FACP will register the devices automatically. Please check if the number of devices, programming, and operation state is in compliance with the project design and remove any problems. 4.6 Device Definition Please define devices and C&E equations by the software GstDef2.1 Defining Tool...

  • Page 25: Chapter 5 Display And Disposal Of System Information

    Installation and Operation Manual Chapter 5 Display and Disposal of System Information GST200-2 can be started after installation according to description in Chapter 4. Turn on the power supply, and main and standby power switch on the FACP, the FACP executes self-test and enter normal standby state.

  • Page 26: Disposal Of Fire Alarm Signal

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual 001 0f 003 !FIRE! 05:25 Zone:001－Zone 1 002/003 Device-30 ------------------------------------- Last !Fire! Zone:003 Zone 3 Device-061 Fig. 5-3  001 0f 003 !FIRE! 05:25 // There are fire alarms in three zones and this is the first.

  • Page 27: Fault

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Step 1: Evacuate the people in field. Step 2: Call the fire department. Step 3: Initiate extinguishing equipment. If it is a false alarm, please take the following measures. Step 1: Press SILENCE to stop the sound.
  • Page 28 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual  The keypad cannot be used.  The panel can monitor fire alarm.  The panel can reset automatically after the fault is removed.  Field device fault: If there is trouble with one of the field devices, the panel reports fault with it, and ...

  • Page 29: Disposal Of Fault Message

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual 5.3.2 Disposal of Fault Message There are two kinds of fault message. One is system fault, like power fault, and loop fault. The other is field device fault, like fault with detectors and modules etc.

  • Page 30: Chapter 6 Description Of System Operation

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Chapter 6 Description of System Operation 6.1 Keypad 6.1.1 Keypad Functions Most of the keys have double functions. Lower mark is a character and upper mark is a command that is only activated in monitoring state. Most functional keys are controlled by password.

  • Page 31: User Operation Instruction (No Password Requirement)

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual GST CO., LTD. Press ENTER confirm Fig. 6-2 6.2 User Operation Instruction (No Password Requirement) 6.2.1 Changing displayed time The clock usually displays in hour and minute. In normal monitoring state, pressing ENTER, month and date are displayed.
  • Page 32 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Browse Browse Loop1: 012 Loop2: 020 Sum ：012 Loop1 L1N001 Optical Loop2 L1N002 Optical Browse L1N003 Optical Zone：01 office1 L1N004 Sounder NO.001 Optical Sensitivity：Nominal Office1 Fig. 6-4  L1N001 Optical // Loop number, device address and device type.
  • Page 33 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Browse ENTER 2 Group (012)(020) ENTER Group:01(001)Sum:004 Browse Group:02(002)Sum:016 Group: 01 Sum: 004 L2N001 Sounder Browse L2N002 SM Vent Group: 01 office1 L2N003 Sounder NO.001 Sounder L2N004 SM Vent Output: Persist Office1 Fig.
  • Page 34 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Browse Sum:32 N01: L02N001 Sounder N02: Zone 01 N03: L01N004 Sounder Fig. 6-8  Sum:32 // Total number of keys on ZCP  N01: L02N001 Sounder // Key No. 1 is defined as a sounder of Loop 2 whose address is 001.
  • Page 35 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual special conditions. Event: It is the message generated by the FACP when there is fire alarm or action of device.  A result is composed of the following items. 01 004 13 00...
  • Page 36 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual 001 of 003 Disable 12:01 Z001-L2-N004Sounder Office1 Fig. 6-11  001 of 003 Disable 12:01 //There are three disabled devices in the system and this is the first.  Z001-L2-N004Sounder //The zone number, loop number, address and device type of the disabled device.

  • Page 37: Silencing The Panel

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual zone.  Zone Part Disabled // The zone is partially disabled. 6.2.3 Silencing the panel Pressing ACK/MUTE can stop the sound of speaker; pressing ACK/MUTE again, the FACP is still in mute state. It will only sound by priority when new event appears.
  • Page 38 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual *Disable/Enable* 1 Disable Devices 2 Enable Devices 3 Dis/En-able Output 4 Dis/En-able Delays 5 Delete Net Disable Fig. 6-14 6.3.4.1 Disabling a Device In the screen shown in Fig. 6-14, input number “1”, you can enter disable screen as shown in Fig.
  • Page 39 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Disabling a point Loop: 1 Point: 000 Fig. 6-17 Entering 1-digit loop number (1 or 2) and 3-digit point number (any number between 1 to 242), and then pressing ENTER will disable the selected device.
  • Page 40 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual 6.3.4.2 Enabling Devices In the screen shown in Fig. 6-14, input number 2, you can enter device enable screen as shown in Fig. 6-20. Same as disabling devices, you can also enable all devices of a zone, a single device (single-device enable) , all loop sounders, or enable a device by user code.

  • Page 41: User Mode

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Note: If the fire alarm is from a manual call point, then the system will output immediately despite any delay settings. 6.3.4.5 Deleting Disabled Information in Network Entering number 5 in the screen of Fig. 6-14 will enter the screen for deleting disabled information in network, as shown in Fig.
  • Page 42 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual shown in Fig. 6-26. *Browse Mode* 1 Zone Mode 2 Loop Mode Fig. 6-26 In this screen, choosing “1 Zone Mode” can browse system messages by zone, and choosing “2 Loop Mode” can browse by loop.

  • Page 43: Device Start/Stop Through Zcp

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual displays pre-alarm message, indicating the position of the alarm and the remaining delay time.  During the 15-second delay time, if ACK/MUTE is pressed, the alarm sound will stop, and the delay time will be increased by PAS DELAY (0-180s) setup.
  • Page 44 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Pressing TEST can enter test mode setup screen as shown in Fig. 6-31. *Test Mode* 1 Display Test 2 Each Zone In Test 3 Stop a Zone Test 4 Stop All Zone Test Fig.

  • Page 45: Instructions For System Administrator (Manager Password Required)

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual 6.3.7.4 Exiting Test Mode for All Zones Entering 4 in the screen shown in Fig. 6-31 will enter the screen for all zones to exit test mode, as in Fig. 6-34.

  • Page 46: Network Setup

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Password Change 1. Operator Password 2. Manager Password Fig. 6-37 Entering “1” or “2” can choose the password to modify, the system enters the window in Fig. 6-38. Modify Password...

  • Page 47: Setting Up Beginning Zone Number

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Input “3” on the screen in Fig. 6-35, the screen shown in Fig. 6-41 will be displayed. *NETWORK SETUP* 1. NET Local Address 2. NET Event Display Fig. 6-41 In the above screen, ...

  • Page 48: Customize

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual *Zone Start Number* Please Input 001 Fig. 6-44 6.4.5 Customize Entering number 5 in the screen in Fig. 6-35 will enter the customize screen, as shown in Fig. 6-45. *Customize* 1.
  • Page 49 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Selecting “2. C&E Outputs” on the screen of Fig. 6-46 will set Sounder A on loop interface board and F.P.E. and the zonal sounder to output by C&E.  The above Default Output does not take effect.

  • Page 50: System Initialization

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual 6.4.6 System Initialization Entering “6” on the screen shown in Fig. 6-35 can initialize system data. 6.4.7 Viewing Supervisory Data of Addressable Devices Entering “7” on the screen shown in Fig. 6-35 will enter the window shown in Fig. 6-49.

  • Page 51: Chapter 7 Standby Battery Calculations

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Chapter 7 Standby Battery Calculations Equation for calculating the battery capacity: Battery capacity（Ah）=I ×T ) ×T Qmax Qmin Lmax Fout In which: ＝0.75A, which is the quiescent current when the FACP is full-loaded;...

  • Page 52: Chapter 8 Maintenance

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Chapter 8 Maintenance The FACP shall only be repaired by specially trained technical service personnel. Please disconnect the power before repair! 8.1 Replacing the Battery Type of battery: Sealed lead-acid battery Recommended period for replacing the battery: 5 years (25℃)
  • Page 53 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Table 8-2 Problems Possible Causes Solutions No indication on a. AC input fuse blown a. Replace fuse. the panel or b. Power is abnormal b. Check and replace low-voltage abnormal switch power.

  • Page 54: Appendix 1 Internal Connection Diagram

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Appendix 1 Internal Connection Diagram To Enclosure 1 Main Board 2 Switch Board 3 LCD 4 Printer 5 Speaker 6 Loop Interface Board 7 Power Board 8 Transformer 9 Power Filter 10 ZCP 11 Loop Board...

  • Page 55: Appendix 2 Internal Fault Description

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Appendix 2 Internal Fault Description Problems Description Causes AC Power AC power fault No AC power Bat Fault Battery fault No battery or low voltage BATHighZ Battery high Battery aging or loose connection.

  • Page 56: Appendix 3 Device Type List

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Appendix 3 Device Type List Undefine Undefined Ionization detector R+F.Heat' Rate of rise and fixed temperature detector Optical Photoelectrical smoke detector Fix Temp Fixed temperature detector Gas Det Gas detector...
  • Page 57 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual WTR.CURT Solenoid valve for water curtain Gas Dump Gas start-up GasAbort Gas stop Net Unit Net unit Repeater Repeater panel Module Flash-locks valve DryPower Dry powder fire extinguisher FoamPump Foam pump...

  • Page 58: Appendix 4 Operation Menu

    GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual Appendix 4 Operation Menu Menu BROWSE 1 Loop Devices 2 Zone Devices 3 Group Devices 4 In Test Mode Zones 5 COM Devices (Network devices) 6 Access (Displaying ZCP information) 7 Browsing C&E...
  • Page 59 GST200-2 Intelligent Fire Alarm Control Panel Installation and Operation Manual SYSTEM [Manager Password Required] Time/Date Password Change Network Setup Zone Start Number Customize Initialize System Devices debug ACK/MUTE (Silencing the FACP or acknowledging a fire alarm during the first stage of PAS delay)
  • Page 60 Gulf Security Technology Co., Ltd. No. 80, Changjiang East Road, QETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502434 Fax: +86 (0) 335 8502532 service.gst@fs.utc.com www.gst.com.cn...
