Summary of Contents for Planet IGTP-802T
- Page 1 1000BASE-X to 10/100/1000BASE-T 802.3at PoE Industrial Media Converter IGTP-802T/IGTP-802TS/IGTP-805AT User’s Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ................5 1.1 Package Contents ............... 5 1.2 How to Use This Manual ............5 1.3 Product Features ..............6 1.4 Product Specifications ............8 1.5 Physical Dimensions ............11 2. Installation ................13 2.1 Product Description ............13 2.1.1 Product Overview ............15 2.1.2 Converter Front Panel ..........15 2.1.3 LED Indicators ............16... - Page 3 PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
- Page 4 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET 1000BASE-X to 10/100/1000BASE-T 802.3at PoE Industrial Media Converter User's Manual For Models: IGTP-802T/IGTP-802TS/IGTP-805AT Revision: 2.0 (September, 2018) Part No: EM-IGTP-80xT_v2.0 (2350-AH1170-002)
-
Page 5: Introduction
In the following section, the term “Industrial 802.3at PoE Media Converter” means the IGTP-802T/IGTP-802TS/IGTP-805AT. 1.2 How to Use This Manual This Industrial 802.3at PoE Media Converter User Manual is... -
Page 6: Product Features
1.3 Product Features Physical Port „ 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af/802.3at PoE Injector „ 1 1000BASE-SX/LX SC Fiber interface (IGTP-802T/IGTP-802TS) „ 1 SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode (IGTP-805AT) Power over Ethernet „ Complies with IEEE 802.3at/af PoE Plus end-span PSE „... - Page 7 Hardware „ LED Indicators –System: Power 1, Power 2 and Fault LED –Fiber port: LNK/ACT –10/100/1000BASE-T port: LNK/ACT, 1000, PoE-in-use „ DIP switch: LFP (Link Fault Passthrough) mode selection Industrial Case and Installation „ IP30 metal case „ DIN-rail and wall-mount design „...
-
Page 8: Product Specifications
1.4 Product Specifications Product IGTP-802T IGTP-802TS IGTP-805AT Ethernet Interface 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance. Copper Auto-negotiation, auto MDI/MDI-X with PoE injector function 1000BASE-X Fiber-optic SFP (LC) Connector Type Multi-mode: Single-mode: 50/125µm or 9/125µm optic Fiber Cable 62.5/125µm fiber optic fiber Fiber Cable Distance 220m &... - Page 9 Hardware Specifications Twisted-pair: 10/20Mbps for half/full duplex 100/200Mbps for half/full duplex Speed 1000/2000Mbps for full duplex Fiber Optic: 200Mbps / 2000Mbps for full duplex Back pressure for half duplex mode Flow Control IEEE 802.3x pause frame for full duplex mode Maximum Frame Size System: Power 1, Power 2 and Fault LED (green)
- Page 10 Provides one relay output for power failure Alarm Alarm relay current carry ability: 1A @ DC 24V 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA / TIA-568 100-ohm STP (maximum 100 Cables meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber Standards Conformance...
-
Page 11: Physical Dimensions
1.5 Physical Dimensions „ IGTP-80xT Industrial 802.3at PoE Media Converter dimensions (W x D x H): 135 x 87 x 32 mm „ IGTP-802T/IGTP-802TS: 163.00 28.00 40.00 48.80 28.00 28.00 18.00 28.00 107.00 9.00 39.70 48.80 46.50 87.80 Side View 135.00... - Page 12 „ IGTP-805AT: 163.00 Side View Dimensions ( unit = mm )
-
Page 13: Installation
PoE deployment range, the IGTP-80xT is integrated with fiber interface for farther distance applications. The IGTP-80xT’s fiber connector type is as follows: „ IGTP-802T Fiber SC connector supporting 1000BASE-SX multi-mode and transmission distance up to 550m. „ IGTP-802TS Fiber SC connector supporting 1000BASE-LX single- mode and transmission distance up to 10km. - Page 14 With the long fiber distance support, the IGTP-80xT still sustains the transmission performance as high as 1000Mbps. It works in the high- performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x flow control and the LFP (Link Fault Passthrough) function in the DIP switch design.
-
Page 15: Product Overview

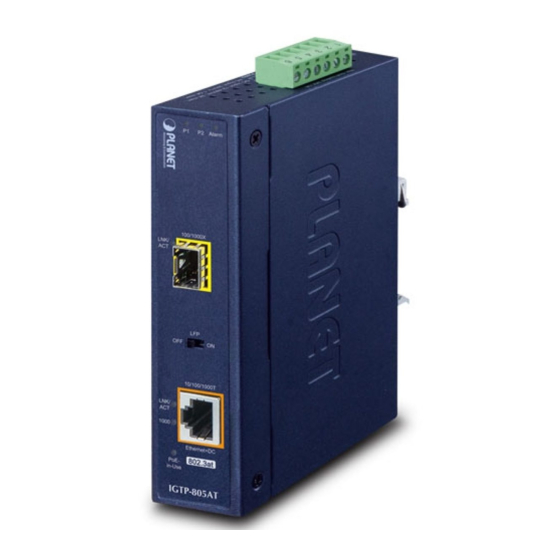

Converter. 2.1.2 Converter Front Panel Figure 2-1 & 2-2 shows the front panel of Industrial 802.3at PoE Media Converter. Fault 1000BASE-SX/LX LNK/ 10/100/1000T LNK/ 1000 Ethernet+DC 802.3at PoE- in-Use IGTP-802T Figure 2-1: IGTP-802T/802TS Front Panel Figure 2-2: IGTP-805AT Front Panel... -
Page 16: Led Indicators
Lit: indicates either power 1 or power 2 has no power. Gigabit Fiber Interface Color Function Lit: indicates that the Fiber Optical Port is successfully connecting to the network at Fiber 1000Mbps (IGTP-802T/IGTP-802TS), at LNK/ Green 100Mbps/1000Mbps (IGTP-805AT). Blinks: indicates the fiber optical port is receiving or sending data. Gigabit TP Interface... -
Page 17: Converter Upper Panel
2.1.4 Converter Upper Panel The upper panel of the Industrial 802.3at PoE Media Converter consists of one terminal block connector within two DC power inputs. Figure 2-3 shows the upper panel of the Industrial 802.3at PoE Media Converter. 1 2 3 4 5 6 V1+ V1- V2+ V2- Input... -
Page 18: Wiring The Fault Alarm Contact
2. Tighten the wire-clamp screws for preventing the wires from loosening. Power 1 Fault Power 2 1. The wire gauge for the terminal block should be in the range between 12 and 24 AWG. 2. The DC power input range is 12V ~ 48V DC and supports 24V AC. -
Page 19: Mounting Installation
In the installation steps below, this Manual uses IGS- 801(PLANET 8 Port Industrial Gigabit Switch) as the example. However, the steps for PLANET Industrial Switch & Industrial Media/Serial Converter are similar. -
Page 20: Din-Rail Mounting
2.2.1 DIN-rail Mounting The DIN-rail bracket is screwed on the Industrial Equipment when out of factory. Please refer to the following figures to screw the DIN-rail bracket on the Industrial Equipment. To hang the Industrial Equipment, follow the steps below: Step 1: Screw the DIN-rail bracket on the Industrial 802.3at PoE Media Converter. - Page 21 Step 3: Check whether the DIN-rail bracket is tightly on the track. Step 4: Please refer to the following procedure to remove the Industrial 802.3at PoE Media Converter from the track. Step 5: Lightly pull out the lower part of the DIN-rail bracket to remove it from the track.
-
Page 22: Wall-Mount Plate Mounting
2.2.2 Wall-mount Plate Mounting To install the Industrial 802.3at PoE Media Converter on the wall, please follow the instructions described below. Step 1: Remove the DIN-rail bracket from the Industrial 802.3at PoE Media Converter; loosen the screws to remove the DIN-rail bracket. -
Page 23: Fiber Installation
Converter to the fiber network. TX, RX must be paired at both ends. Step 4: Connect the DC power to the IGTP-802T/IGTP-802TS and verify that the Power LED lights up. Step 5: Turn on the power of the device/station; the PWR LED (Green) should light when all cables are attached. - Page 24 Fiber Switch PoE IP Camera LOCATION A LOCATION B Figure 2-5: IGTP-805AT 100/1000BASE-X Installation It is recommended to use PLANET MFB/MGB series 100BASE-FX/1000BASE-SX/LX/LX IGTP-805AT. If you insert an SFP transceiver that is not Note supported, the IGTP-805AT will not recognize it.
- Page 25 The following list the available Modules for IGTP-805AT. „ Gigabit Ethernet Transceiver (1000BASE-X SFP) Speed Connector Wavelength Operating Model Fiber Mode Distance (Mbps) Interface (nm) Temp. 0 ~ 60 MGB-GT 1000 Copper 100m degrees C 0 ~ 60 MGB-SX 1000 Multi Mode 550m 850nm...
- Page 26 „ Gigabit Ethernet Transceiver (1000BASE-BX, Single Fiber Bi-direc- tional SFP) Speed Connector Fiber Wavelength Wavelength Operating Model Distance (Mbps) Interface Mode (TX) (RX) Temp. 1310nm 1550nm MGB-LA10 Single 0 ~ 60 1000 10km MGB-LB10 (LC) Mode degrees C 1550nm 1310nm 1310nm 1550nm MGB-LA20...
-
Page 27: 802.3At Poe Installation
„ Fast Ethernet Transceiver (100BASE-BX, Single Fiber Bi-directional SFP) Speed Connector Fiber Wavelength Wavelength Operating Model Distance (Mbps) Interface Mode (TX) (RX) Temp. 1310nm 1550nm MFB-FA20 Single 0 ~ 60 20km MFB-FB20 (LC) Mode degrees C 1550nm 1310nm 1310nm 1550nm MFB-TFA20 Single -40 ~ 75... -
Page 28: Link Passthrough Function
3. Link Passthrough Function The LFP function includes the Link Fault Passthrough function (LLCF/ LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the issue of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function. -
Page 29: Link Loss Return (Llr)
If the connection breaks, the IGTP-80xT whose link is lost forwards to the switch/hub which generates a trap to the management station. The administrator can then determine the source of the issue. Management Switch/Hub Media Media Switch/Hub Management Station w/SNMP Converter Converter w/SNMP... - Page 30 Management Switch/Hub Media Media Switch/Hub Station Station w/SNMP Converter Converter LFP ON LFP OFF Fiber Cable LED lit = established link LED unlit = no link If one of the optical conductors is bad (as shown in the diagram box below), the converter with LLR enabled will return a no-link condition to its link partner.
-
Page 31: Troubleshooting
4. Troubleshooting This chapter contains information to help you solve issues. If the IGTP-80xT is not functioning properly, make sure the IGTP-80xT was set up according to instructions in this manual. The Power LED is not lit Solution: Check the power cable connection between power adapter and IGTP-80xT. -
Page 32: Cable Connection Parameter
5. Cable Connection Parameter The wiring details are shown below: 100FX Fiber Optical Cables: Standard Fiber Type Cable Specification 100BASE-FX (1300nm) Multi-mode 50/125μm or 62.5/125μm Multi-mode 50/125μm or 62.5/125μm 100BASE-FX (1310nm) Single-mode 9/125μm 100BASE-BX-U Single-mode 9/125μm (TX: 1310nm/RX: 1550nm) 100BASE-BX-D (TX: 1550nm/RX: 1310nm) 1000X Fiber Optical Cables: Standard Fiber Type Cable Specification... -
Page 33: Appendix A: Networking Connection
Appendix A: Networking Connection A.1 Switch’s RJ45 Pin Assignments 1000Mbps, 1000BASE-T Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- 10/100Mbps, 10/100BASE-TX RJ45 Connector Pin Assignment MDI Media Dependent MDI-X Media Dependent Contact Interface Interface -Cross... -
Page 34: Rj45 Cable Pin Assignments
A.2 RJ45 Cable Pin Assignments The standard RJ45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color- coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Straight Cable SIDE 1 SIDE 2 1 = White/Orange... - Page 35 : IGTP-805AT、IGTP-802T、IGTP-802TS * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address : 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2014/30/EU).
