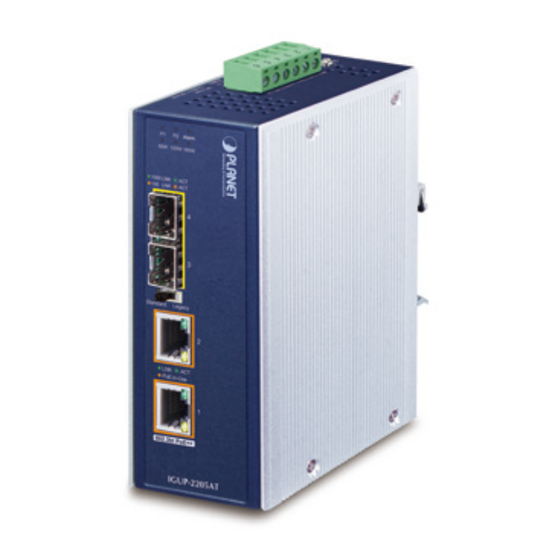

- Page 1 Industrial 100/1000X to 10/100/1000T 802.3bt PoE++ Media Converter series IGUP-1205AT/IGUP-2205AT User's Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ................. 3 2. Product Specifications ................4 3. Hardware Introduction ................7 3.1 Three-View Diagram............... 7 3.2 LED Definition: ................10 3.3 Wiring the Power Inputs ............... 11 3.4 Wiring the Alarm Contact ............. 12 3.5 Grounding the Device ..............13 4. -
Page 3: Package Contents
100/1000X 10/100/1000T 802.3bt PoE++ Media Converter series, IGUP-1205AT and IGUP-2205AT. In the following sections, the term “Industrial PoE++ Media Converter” means the IGUP-1205AT or IGUP-2205AT. Open the box of the Industrial PoE++ Media Converter and carefully unpack it. -
Page 4: Product Specifications
2. Product Specifications Model IGUP-1205AT IGUP-2205AT Hardware Specifications Copper Port 1 x 10/100/1000BASE-T 2 x 10/100/1000BASE-T 2 x 1000BASE-SX/LX/BX SFP interface SFP Slot Compatible with 100BASE-FX SFP Back pressure for half duplex mode Flow Control IEEE 802.3x pause frame for full duplex mode Maximum Frame Size 9K System:... - Page 5 Enclosure IP30 metal case Installation DIN-rail kit and wall-mount ear ESD Protection 6KV DC 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA/TIA-568 100-ohm STP (maximum 100 meters) Cables 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber Power Over Ethernet IEEE 802.3bt Power over Ethernet Plus Plus PoE Standard Backward compatible with IEEE 802.3at PoE+ Standard (BT) mode: 90W...
- Page 6 IEC60068-2-32 (free fall) Stability Testing IEC60068-2-27 (shock) IEC60068-2-6 (vibration) Environment Operating: -40~75 degrees C Temperature Storage: -40~85 degrees C Operating: 5~90% (non-condensing) Humidity Storage: 5~90% (non-condensing)
-
Page 7: Hardware Introduction
Top View Mounting Kit Side View Front View Side View Rear View P2 Alarm 30W 60W 90W 1000 DIN-Rail Kit Standard Legacy PoE-in-Use 802.3bt PoE++ IGUP-1205AT Mounting Kit Bottom View Unit: mm Figure 1: IGUP-1205AT Three-View Diagram... - Page 8 Top View Mounting Kit Side View Front View Side View Rear View P2 Alarm 60W 120W 180W 1000 DIN-Rail Kit Standard Legacy PoE-in-Use 802.3bt PoE++ IGUP-2205AT Mounting Kit Bottom View Unit: mm Figure 2: IGUP-2205AT Three-View Diagram...
- Page 9 Front View P2 Alarm P2 Alarm 30W 60W 90W 60W 120W 180W 1000 1000 Standard Legacy Standard Legacy PoE-in-Use PoE-in-Use 802.3bt PoE++ 802.3bt PoE++ IGUP-1205AT IGUP-2205AT Figure 3: IGUP-1205AT/IGUP-2205AT Front View...
-
Page 10: Led Definition
Lights to indicate DC power input 2 has power. Alarm Lights to indicate that DC power has failed. IGUP-1205AT (30W, 60W, 90W) Lights to indicate the system consumes over 30-/60- /90-watt PoE power budget. Blinks to indicate the system consumes less than 30-/60-/90-watt PoE power budget. -
Page 11: Wiring The Power Inputs
■ Gigabit Fiber Interface Color Function Lights to indicate that the fiber optic port is successfully connecting to the network at 1000Mbps. Green Blinks to indicate the fiber optic port is receiving or sending data. Fiber LNK/ACT Lights to indicate that the fiber optic port is successfully connecting to the network at 100Mbps. Amber Blinks to indicate the fiber optic port is receiving or sending data. 3.3 Wiring the Power Inputs The 6-contact terminal block connector on the top panel of Industrial PoE++ Media Converter is used for two 12-56V DC redundant power inputs. -
Page 12: Wiring The Alarm Contact
2. Tighten the wire-clamp screws for preventing the wires from loosening. Power 1 Alarm Power 2 1. The wire gauge for the terminal block should be in the range between 12 and 24 AWG. 2. The DC power input range is 12-56V DC. Note PWR1 and PWR2 must provide exactly the same DC voltage for power load balance while operating with dual power input. -
Page 13: Grounding The Device
1. The wire gauge for the terminal block should be in the range between 12 and 24 AWG. 2. Alarm relay circuit accepts up to 24V, max. 1A currents. Note 3.5 Grounding the Device Users MUST complete grounding wired with the device; otherwise, a sudden lightning could cause fatal damage to the device. -
Page 14: Hardware Installation
Converter’s components and guides you to installing it on the DIN rail and wall. Please read this chapter completely before continuing. This following picture tells the user how to install the device, and the device is not IGUP-1205AT or IGUP-2205AT. Note 4.1 DIN-rail Mounting Installation... - Page 15 You must use the screws supplied with the wall-mounting brackets. Damage caused to the parts by using incorrect screws would invalidate your warranty. Caution...
-
Page 16: Fiber And Poe Installation
Industrial 802.3bt PoE++ Media Converter. If there is any IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt devices needed to power on, the IGUP-1205AT/IGUP-2205AT can provide you a way to supply power for this Ethernet device conveniently and easily. The IGUP-1205AT/IGUP-2205AT needs 12-56V DC input and it injects the DC power into the pin of the twisted-pair cable (Pins 1, 2, 3 and 6). -
Page 17: Customer Support
Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET web site first to check if it could solve your issue. If you need more support information, please contact PLANET support team. PLANET online FAQs: http://www.planet.com.tw/en/support/faq.php...
