Huskvarna, 2018-03-12
Safety and Operating Instructions
Dear customer,
thank you for choosing a Husqvarna quality product. We hope that you will genuinely enjoy it.
Please note that the enclosed manual contains Atlas Copco references.
The Husqvarna Group is vouching for the quality of this product.
If you have any questions, please do not hesitate to contact our local sales or service point.
Husqvarna AB
561 82 Huskvarna, Sweden
Advertisement
Table of Contents
Related Manuals for Atlas Copco LP 8504
Summary of Contents for Atlas Copco LP 8504
- Page 1 Dear customer, thank you for choosing a Husqvarna quality product. We hope that you will genuinely enjoy it. Please note that the enclosed manual contains Atlas Copco references. The Husqvarna Group is vouching for the quality of this product. If you have any questions, please do not hesitate to contact our local sales or service point.
- Page 2 8504 Safety and operating instructions Trench compactor © 2015 Construction Tools EOOD | No. 9800 1147 01d | 2015-11-11 Original instructions...
-
Page 4: Table Of Contents
LP 8504 Contents Contents Introduction............... . 5 About the Safety and operating instructions. - Page 5 Contents LP 8504 Cable control..............21 Operating.
-
Page 6: Introduction
Safety and operating instructions Introduction Thank you for choosing a product from Atlas Copco. Since 1873, we have been committed to finding new and better ways of fulfilling our customers' needs. Through the years, we have developed innovative and ergonomic product designs that have helped customers improve and rationalize their daily work. -
Page 7: Safety Instructions
Safety and operating instructions LP 8504 Appropriate work overall or similar clothing (not ● Safety instructions loose-fitting) that covers your arms and legs. To reduce the risk of serious injury or death to Drugs, alcohol or medication yourself or others, read and understand the Safety... - Page 8 LP 8504 Safety and operating instructions Release the filler cap slowly to let pressure ► WARNING Transmitter hazard escape. If the operator is not fully familiar with the control system when operating the machine, this may lead ► Never overfill the fuel tank.
- Page 9 Safety and operating instructions LP 8504 Avoid eating, drinking, and using tobacco products ► WARNING Dust and fume hazard in areas where there is dust or fumes. Dusts and/or fumes generated or dispersed when using the machine may cause serious and permanent ►...
- Page 10 LP 8504 Safety and operating instructions WARNING Projectiles WARNING Vibration hazards Failure of the work piece, of accessories, or even of Normal and proper use of the machine exposes the the machine itself may generate high velocity operator to vibration. Regular and frequent exposure projectiles.
-
Page 11: Transport, Precautions
WARNING Concealed object hazard During operating, concealed wires and pipes ► Always use original parts and accessories constitute a danger that can result in serious injury. approved by Atlas Copco. Check the composition of the material before ► Change damaged parts immediately. ►... -
Page 12: Overview

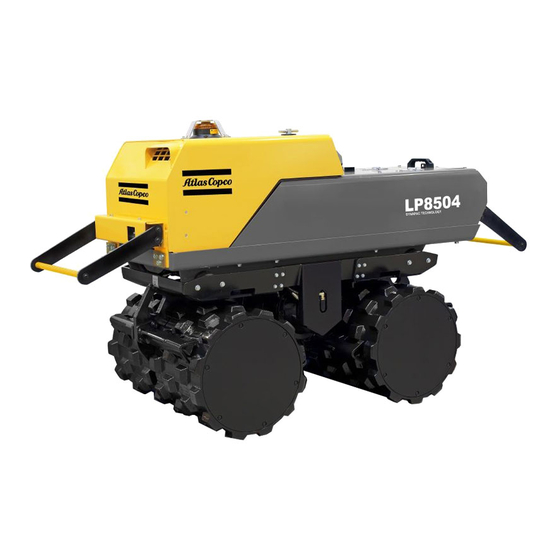

Design and function The trench compactor LP 8504 is a radio controlled trench compactor. It has a robust design and is suitable for compaction of medium to deep layers of cohesive and granular soils on limited areas such as trenches, construction back-fills and on roads. -
Page 13: Labels
Safety and operating instructions LP 8504 Transmitter Horn Start/Stop switch, engine Indicator for low battery voltage Construction Tools EOOD Type Operating mass kg Rated power kW Year of Mfg roduct dentification umber Made in Sweden Made in Sweden Joystick Transmitter on/off... -
Page 14: Noise Level Label
LP 8504 Safety and operating instructions The CE symbol means that the machine is Safety label EC-approved. See the EC Declaration of Conformity which is delivered with the machine for more information. Noise level label Hot surfaces in the engine compartment. Keep your hands at a safe distance from the danger zone. -
Page 15: Handbrake Label
Safety and operating instructions LP 8504 Never walk or stand under a lifted machine. Handbrake label ► ► Only lift the machine by a hook on the frame. Never lift the machine by the lifting eye at the ► engine. -
Page 16: Installation
LP 8504 Safety and operating instructions Use the front and rear towing attachment points Filling procedure ♦ to secure the machine. 1. Stop the engine and let it cool down before filling the tank. The transmitter must be placed under the rear ♦... -
Page 17: Transmitter
Safety and operating instructions LP 8504 NOTICE When operating the machine, follow the The extra battery can be charged in the receiver ♦ instructions in the manual; never sit or stand on the on the machine during operation. The battery machine when it is working. -
Page 18: Pairing Function
LP 8504 Safety and operating instructions 1. Insert and turn the battery disconnector to locked mode. 2. Activate the pairing mode, by pressing the black button on the receiver. For radio or general indication, a LED labelled RX is used. -
Page 19: Antenna
Safety and operating instructions LP 8504 Transmitter display Event information Pairing Pairing Pairing info Pairing RX-TX... Pairing ready Pairing info Pairing RX-TX- Link OK Pairing ready! Restart system BlueTooth BlueTooth connected Pairing info Pairing RX-TX- Link OK BlueTooth error Pairing info... -
Page 20: Start And Stop
LP 8504 Safety and operating instructions The tilting angle is measured on a hard level 1. Check the engine oil level. ♦ surface with the machine stationary. Vibration switched OFF and all tanks full. 20° 2. Fill the fuel tank with fuel. -
Page 21: Starting The Engine, Hatz
Safety and operating instructions LP 8504 NOTICE If the charging symbol and oil pressure symbol do not extinguish, the machine must be shut off. Fault tracing and repair must be performed by authorized service personnel before the machine is started again. -
Page 22: Stopping The Engine, Hatz
LP 8504 Safety and operating instructions 5. Push the start/stop switch (D) back. The buzzer Symbol Description (E) sounds when the engine stops. Radio contact established between transmitter and receiver. Alarm, charging. Alarm, low oil pressure. Fault codes: 05: Tilt switch activated. -
Page 23: Operating
Safety and operating instructions LP 8504 The machine can be operated by cable control. Operation ♦ Mount the cable on the machine. The machine must always be operated at the highest engine revs when vibration is used, the engine revs switch (A) is then in position +. -
Page 24: Control
LP 8504 Safety and operating instructions To operate the machine when both of the contact Control sensors are activated, press and hold the horn button for more than 1 second. Hold the button while operating with the joystick. When taking a break ♦... -
Page 25: Desktop Charger
Safety and operating instructions LP 8504 to trickle charging (13.3 V) when the battery is fully LED indicator Battery status charged. Yellow Battery verification Battery storage and trickle charging Orange Fast charge Never leave a machine with a discharged battery. A... -
Page 26: Checking The Engine, Hatz
LP 8504 Safety and operating instructions Maintenance routines: Cleaning dust extractor valve ♦ Check and replenish engine oil. See engine ♦ Check air intake. Clean if necessary manual for more information. ♦ Check dust extractor valve (A) for free flow. -
Page 27: Checking Hydraulic Oil Level
Safety and operating instructions LP 8504 Checking hydraulic oil level Cleaning the machine ♦ Wipe off the oil level gauge (A). ♦ Do not spray water directly onto electrical components or the instrument panel. ♦ Place a plastic bag over the fuel filler cap and secure with a rubber band. -
Page 28: After The First 150 Hours Of Operation
LP 8504 Safety and operating instructions 1. Unscrew the drain plug (A) on the draining hose Hydraulic system, replacing the oil filter and drain off all the oil. Use a container with at 1. Clean the area around the filter cover and then least a 2.5 litre capacity. -
Page 29: Diesel Engine, Replacing The Fuel Filter
Safety and operating instructions LP 8504 7. Clean or replace the cartridge. Diesel engine, replacing the fuel filter 1. The replacement intervals for fuel filters depend 8. Assemble in reverse order. Check the seal insert on how heavily contaminated the fuel is. -
Page 30: Checking Battery Connectors
LP 8504 Safety and operating instructions 4. Pump with the hand pump (C) until the fuel is Every 500 hours of operation free from air. Tighten the bleeding screw (B). (yearly) Maintenance routines: Change the hydraulic oil and the hydraulic oil filter. -
Page 31: Disposal
Safety and operating instructions LP 8504 Disposal A used machine must be treated and disposed of in such a way that the greatest possible portion of the material can be recycled and any negative influence on the environment is kept as low as possible, and in accordance with local restrictions. -
Page 32: Technical Data
LP 8504 Safety and operating instructions Technical data Machine data LP 8504 Hatz Engine Type Hatz 2G40, 2-cylinder Diesel Power kW (hp) 12.5 (17.5) Rated speed r.p.m. 2,500 Cooling system Air cooled + hydraulic oil cooler + fan Air filter... -
Page 33: Weights
Safety and operating instructions LP 8504 Weights 630 mm (24.8 in.) 850 mm (33.5 in.) Net weight, kg (lbs) 1,548 (3,413) 1,650 (3,638) Operating weight EN500, kg (lbs) 1,573 (3,468) 1,675 (3,693) Radio equipment Transmitter Operating voltage Battery NiMh 1500 mAh. The transmitter can be operated without battery via cable control. -
Page 34: Noise And Vibration Data
LP 8504 Safety and operating instructions Noise and vibration data Noise Vibration Declared values Declared values Sound pressure Sound power Three axes values EN ISO 11201 2000/14/EC EN500-4:2011 permitted guaranteed measured dB(A) working value Type at operator's ear dB(A) rel 1pW... -
Page 35: Dimensions
Safety and operating instructions LP 8504 Dimensions mm (in.) 850 (33.5) 535 (21.1) 1385 (54.5) 2330 (91.7) 630 (24.8) 630 (24.8) 405 (15.9) 295 (11.6) 850 (33.5) 630 (24.8) © 2015 Construction Tools EOOD | No. 9800 1147 01d | 2015-11-11... -
Page 36: Ec Declaration Of Conformity
LP 8504 Safety and operating instructions EC Declaration of Conformity EC Declaration of Conformity (EC Directive 2006/42/EC) We, Construction Tools EOOD, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive) and 2000/14/EC (Noise Directive), and the harmonised standards mentioned below. - Page 41 Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers, and drawings. www.atlascopco.com...
