Atlas Copco LPD Series Safety And Operating Instructions Manual

Atlas Copco LPD Series Safety And Operating Instructions Manual

Hydraulic post drivers
Hide thumbs Also See for LPD Series:

Advertisement

Quick Links

LPD
T, RV
Safety and operating instructions
Hydraulic post drivers
© 2015 Construction Tools EOOD | No. 3392 5036 01f | 2015-03-10
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlas Copco LPD Series

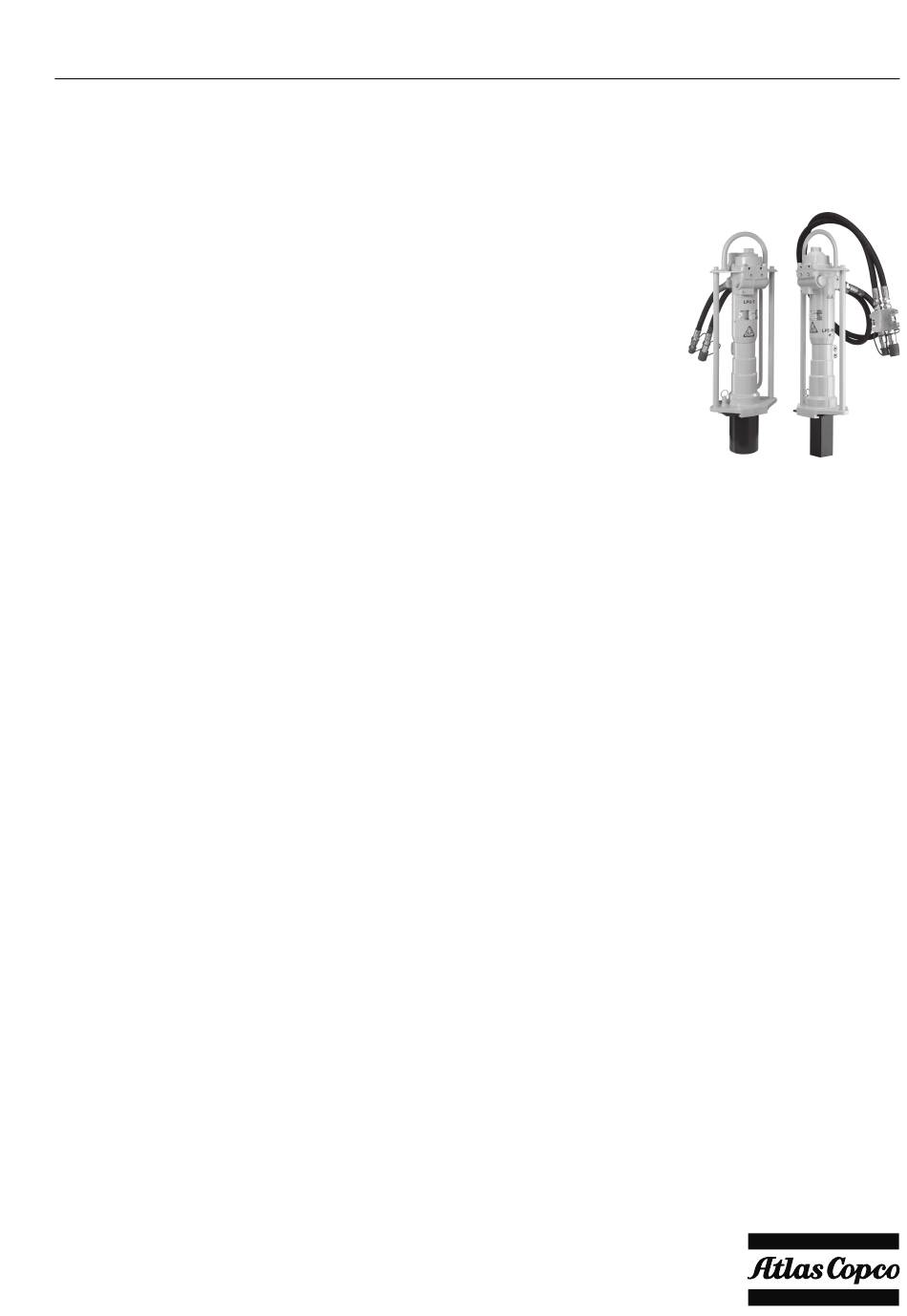

  • Page 1 T, RV Safety and operating instructions Hydraulic post drivers © 2015 Construction Tools EOOD | No. 3392 5036 01f | 2015-03-10 Original instructions...
  • Page 3: Table Of Contents

    LPD T, RV Contents Contents Introduction............... . 5 About the Safety and operating instructions.
  • Page 5: Introduction

    Safety and operating instructions Introduction Thank you for choosing a product from Atlas Copco. Since 1873, we have been committed to finding new and better ways of fulfilling our customers' needs. Through the years, we have developed innovative and ergonomic product designs that have helped customers improve and rationalize their daily work.
  • Page 6: Safety Instructions

    Safety and operating instructions LPD T, RV Drugs, alcohol or medication Safety instructions WARNING Drugs, alcohol or medication To reduce the risk of serious injury or death to Drugs, alcohol or medication may impair your yourself or others, read and understand the Safety judgment and powers of concentration.
  • Page 7: Operation, Precautions

    LPD T, RV Safety and operating instructions Never rest the post or the adaptor in a post driver ► CAUTION Skin eczema on your foot or against your body. Hydraulic oil can cause eczema if it comes in contact with the skin. ►...
  • Page 8 Safety and operating instructions LPD T, RV Operate and maintain the machine as ► WARNING Projectiles recommended in the operating and safety Failure of the work piece, of accessories, or even of instructions the machine itself may generate high velocity projectiles.
  • Page 9 LPD T, RV Safety and operating instructions See the ”Noise and vibration declaration statement” WARNING Vibration hazards for the machine, including the declared vibration Normal and proper use of the machine exposes the values. This information can be found at the end of operator to vibration.
  • Page 10: Maintenance, Precautions

    ► Never modify the machine. Modified machines are not covered by warranty or product liability. ► Always use original parts and accessories approved by Atlas Copco. Change damaged parts immediately. ► ► Replace worn components in good time. WARNING Accessory hazards...
  • Page 11: Overview

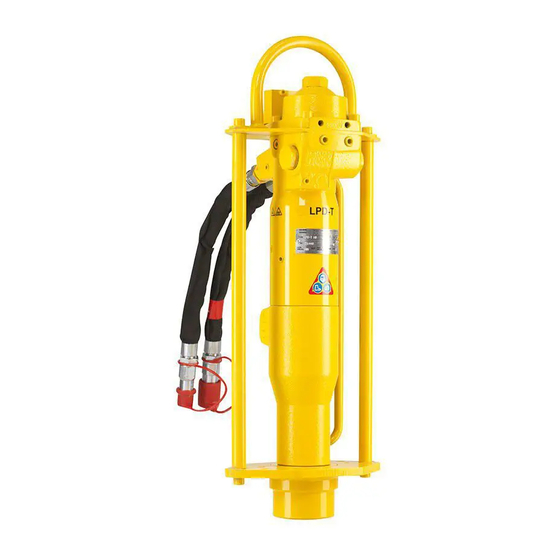

    LPD T, RV Safety and operating instructions Overview Main parts To reduce the risk of serious injury or death to yourself or others, read the Safety instructions section found on the previous pages of this manual before operating the machine. Design and function LPD is a hydraulic powered post driver designed for ramming of various types of sign posts, wood piles,...
  • Page 12: Labels

    Safety and operating instructions LPD T, RV Data plate Construction Tools EOOD xxxxx Maximum permitted hydraulic oil flow Machine type Maximum relief valve setting The warning symbol together with the book symbol means that the user must read the safety and operating instructions before the machine is used for the first time.
  • Page 13: Accumulator

    LPD T, RV Safety and operating instructions and the connection marked T (tank) is the oil outlet. Accumulator Always connect both hoses and make sure that all hose connections are tight. Never carry the machine by the hose. Quick-release couplings The original hydraulic hoses are fitted with Flat-Face The accumulator must only be charged with Nitrogen.
  • Page 14: Adaptors

    Safety and operating instructions LPD T, RV of the power source is 172 bar (limited by safety Start and stop valve adjustment). WARNING Operating pressure Connecting the post driver If the maximum operating pressure for the hydraulic Ensure that the hydraulic supply meets the machine is exceeded, it can result in material requirements of the post driver, see "Technical data".
  • Page 15: Stopping The Post Driver

    LPD T, RV Safety and operating instructions 4. Insert the post into the post driver. It is possible Disconnecting the post driver to use a optional drive cap. 1. Isolate the hydraulic supply. 2. Disconnect the hoses by pulling up the locking rings and pulling up the couplings.
  • Page 16: Every Month

    Safety and operating instructions LPD T, RV Make sure that all the attached and related ♦ equipment, such as hoses and flow dividers are properly maintained. Clean the quick-release couplings before use. ♦ Every month ♦ Check torque tightness of all fasteners. ♦...
  • Page 17: Technical Data

    LPD T, RV Safety and operating instructions Technical data Problem Cause Solution LPD fails to operate No flow from supply Check output with flow and pressure tester Hoses incorrectly fitted Check that pressure feed is connected to P port on the LPD Main spool jammed or damaged Remove and check, clean all associated parts...
  • Page 18: Noise And Vibration Data

    Safety and operating instructions LPD T, RV These declared values were obtained by laboratory type testing in accordance with the stated directive or standards and are suitable for comparison with the declared values of other machines tested in accordance with the same directive or standards. These declared values are not suitable for use in risk assessments and values measured in individual work places may be higher.
  • Page 19: Ec Declaration Of Conformity

    LPD T, RV Safety and operating instructions EC Declaration of Conformity EC Declaration of Conformity (EC Directive 2006/42/EC) We, Construction Tools EOOD, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive) and 2000/14/EC (Noise Directive), and the harmonised standards mentioned below.
