Atlas Copco CS 14 Safety And Operating Instructions Manual

Crawler for christensen core drilling rig

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Atlas Copco Exploration Products

Christensen core drilling rig

CS 14 Crawler

Safety and Operating

instructions - Appendix

| No.3705 0901 84 | 2010-06-29

Table of Contents

Need help?

Do you have a question about the CS 14 and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlas Copco CS 14

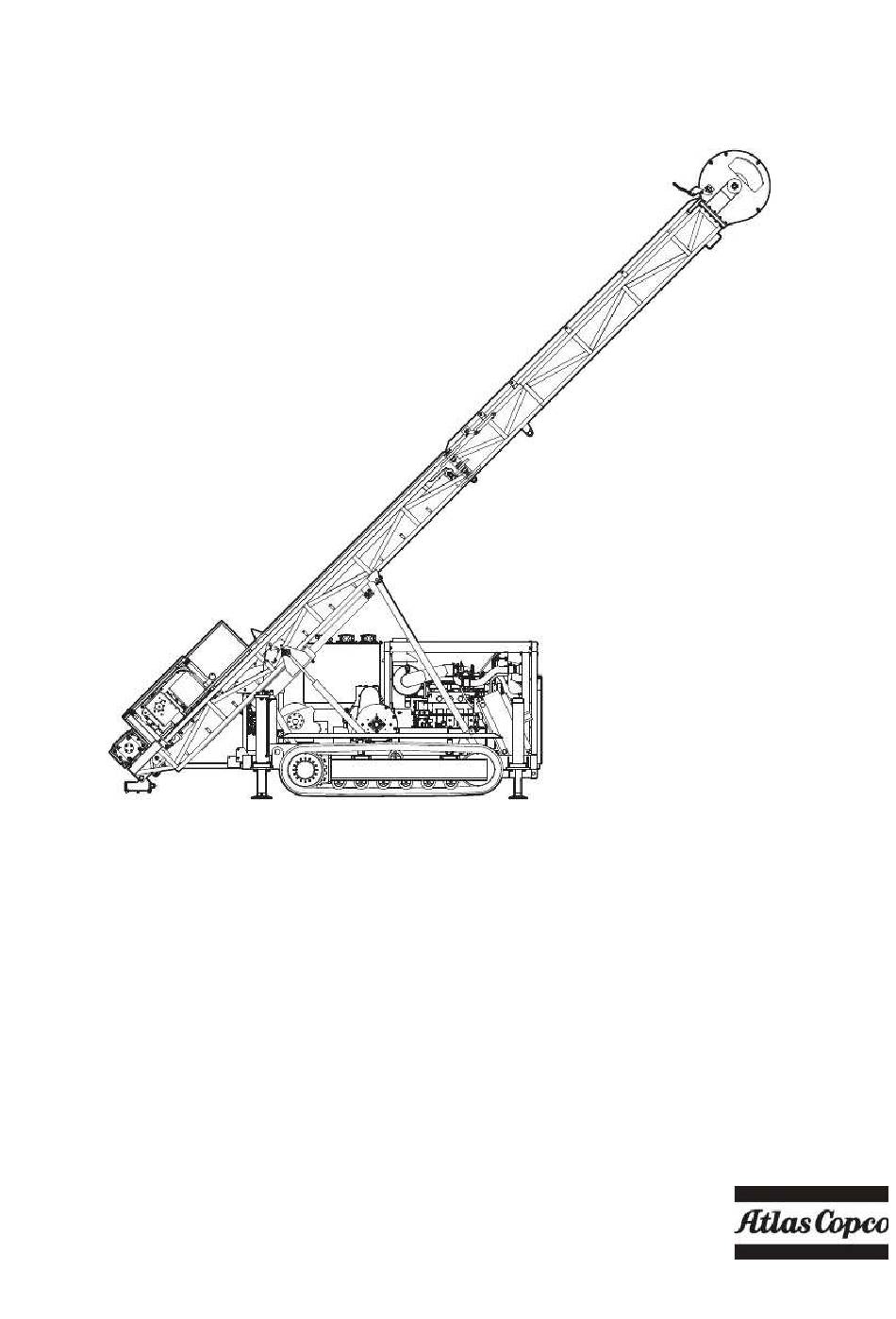

Page 1 CS 14 Crawler CS 14 Crawler Safety and Operating Safety and Operating instructions - Appendix instructions - Appendix © 2010 Atlas Copco Craelius AB © 2010 Atlas Copco Craelius AB | No.3705 0901 84 | 2010-06-29 | No.3705 0901 84 | 2010-06-29...
Page 2: Table Of Contents
Additional parts CS 14 Crawler ........
Page 4: Introduction
Safety and operating instructions Introduction CS 14 Crawler Safety and Operating instructions - Appendix is a supplement to the regular documentation for the CS CHRISTENSEN 14 drill rig and shall be added to the Safety and Operating instructions for the CS CHRISTENSEN 14 drill rig These instructions are intended for operators of the Atlas Copco equipment.
Page 5: Safety Instructions
Storage, repair, maintenance and disposal Storage, repair, maintenance and disposal of the equipment may only be undertaken by persons who: © 2010 Atlas Copco Craelius AB | 2010-06-18 02 Safety Instructions CS14C Ed.0...
Page 6: Safety Area
WARNING Compressed air When drilIing with compressed air, the rock cuttings are carried out of the bore in the form of small cuttings, © 2010 Atlas Copco Craelius AB | 2010-06-18 02 Safety Instructions CS14C Ed.0...
Page 7: Maintenance, Precautions
When overhead electrical power lines exist at, or near a drilling site, consider all wires to be alive and dangerous. If the rig comes in contact with electric © 2010 Atlas Copco Craelius AB | 2010-06-18 02 Safety Instructions CS14C Ed.0...
Page 8 A discarded pressure vessel that has not been  punctured must be treated like a pressure vessel. Take care when evacuating the accumulator.  WARNING Electric shock © 2010 Atlas Copco Craelius AB | 2010-06-18 02 Safety Instructions CS14C Ed.0...
Page 9: Signs And Stickers
Use approved ear protectors.  injuries.  Keep out of the hazardous area during operation. Slip risk GDE00034 A GDE00003 A Preprogrammed cycle can cause severe injuries. © 2010 Atlas Copco Craelius AB | 2010-06-28 03 Signs and stickers Ed.0...
Page 10: Regulatory Signs
The battery switch must be turned on when drilling is  in progress. Switch off the battery switch when rig is not in  operation. If this is not done the battery will be discharged. © 2010 Atlas Copco Craelius AB | 2010-06-28 03 Signs and stickers Ed.0...
Page 11 Read the instructions.  Emergency stop.  Fill with engine oil  GDE00019 A Use safety belt.  GDE00016 A  Read the instructions. Fill with brake fluid.  © 2010 Atlas Copco Craelius AB | 2010-06-28 03 Signs and stickers Ed.0...
Page 12 This rig is equipped with data boxes. Isolate or remove data boxes when giving the  battery a booster charge or carrying out welding on the rig. © 2010 Atlas Copco Craelius AB | 2010-06-28 03 Signs and stickers Ed.0...
Page 13: Information Signs
GDE00023 A Lifting eye GDE00030 A Washer fluid GDE00024 A Water inlet GDE00031 A Emergency reverse button GDE00025 A Air intake GDE00032 A GDE00026 A Fuel GDE00027 A © 2010 Atlas Copco Craelius AB | 2010-06-28 03 Signs and stickers Ed.0...
Page 14: Other Signs
See the CE Declaration of Conformity which is delivered with the machine for more information. Identity plates All elecrical components have their own sign with an identifying name. © 2010 Atlas Copco Craelius AB | 2010-06-28 03 Signs and stickers Ed.0...
