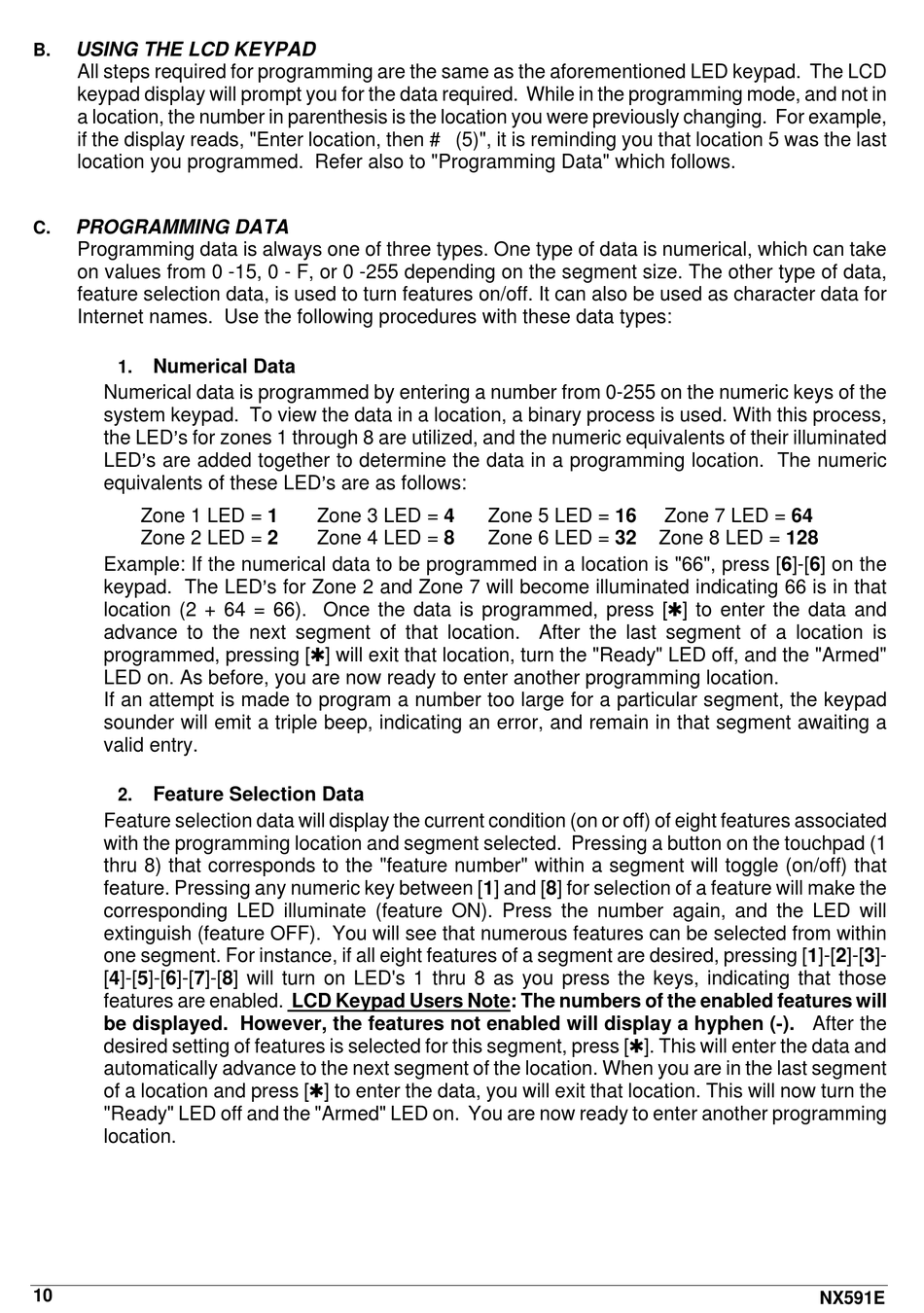

USING THE LCD KEYPAD

B.
All steps required for programming are the same as the aforementioned LED keypad. The LCD
keypad display will prompt you for the data required. While in the programming mode, and not in
a location, the number in parenthesis is the location you were previously changing. For example,
if the display reads, "Enter location, then # (5)", it is reminding you that location 5 was the last
location you programmed. Refer also to "Programming Data" which follows.

PROGRAMMING DATA

C.
Programming data is always one of three types. One type of data is numerical, which can take
on values from 0 -15, 0 - F, or 0 -255 depending on the segment size. The other type of data,
feature selection data, is used to turn features on/off. It can also be used as character data for
Internet names. Use the following procedures with these data types:

Numerical Data

1.
Numerical data is programmed by entering a number from 0-255 on the numeric keys of the
system keypad. To view the data in a location, a binary process is used. With this process,
the LED=s for zones 1 through 8 are utilized, and the numeric equivalents of their illuminated
LED=s are added together to determine the data in a programming location. The numeric
equivalents of these LED=s are as follows:
Zone 1 LED = 1
Zone 2 LED = 2
Example: If the numerical data to be programmed in a location is "66", press [6]-[6] on the
keypad. The LED=s for Zone 2 and Zone 7 will become illuminated indicating 66 is in that
location (2 + 64 = 66). Once the data is programmed, press [r] to enter the data and
advance to the next segment of that location. After the last segment of a location is
programmed, pressing [r] will exit that location, turn the "Ready" LED off, and the "Armed"
LED on. As before, you are now ready to enter another programming location.
If an attempt is made to program a number too large for a particular segment, the keypad
sounder will emit a triple beep, indicating an error, and remain in that segment awaiting a
valid entry.

Feature Selection Data

2.
Feature selection data will display the current condition (on or off) of eight features associated
with the programming location and segment selected. Pressing a button on the touchpad (1
thru 8) that corresponds to the "feature number" within a segment will toggle (on/off) that
feature. Pressing any numeric key between [1] and [8] for selection of a feature will make the
corresponding LED illuminate (feature ON). Press the number again, and the LED will
extinguish (feature OFF). You will see that numerous features can be selected from within
one segment. For instance, if all eight features of a segment are desired, pressing [1]-[2]-[3]-
[4]-[5]-[6]-[7]-[8] will turn on LED's 1 thru 8 as you press the keys, indicating that those
features are enabled. LCD Keypad Users Note: The numbers of the enabled features will
be displayed. However, the features not enabled will display a hyphen (-). After the
desired setting of features is selected for this segment, press [r]. This will enter the data and
automatically advance to the next segment of the location. When you are in the last segment
of a location and press [r] to enter the data, you will exit that location. This will now turn the
"Ready" LED off and the "Armed" LED on. You are now ready to enter another programming
location.
10
Zone 3 LED = 4 Zone 5 LED = 16
Zone 4 LED = 8 Zone 6 LED = 32
Zone 7 LED = 64
Zone 8 LED = 128
