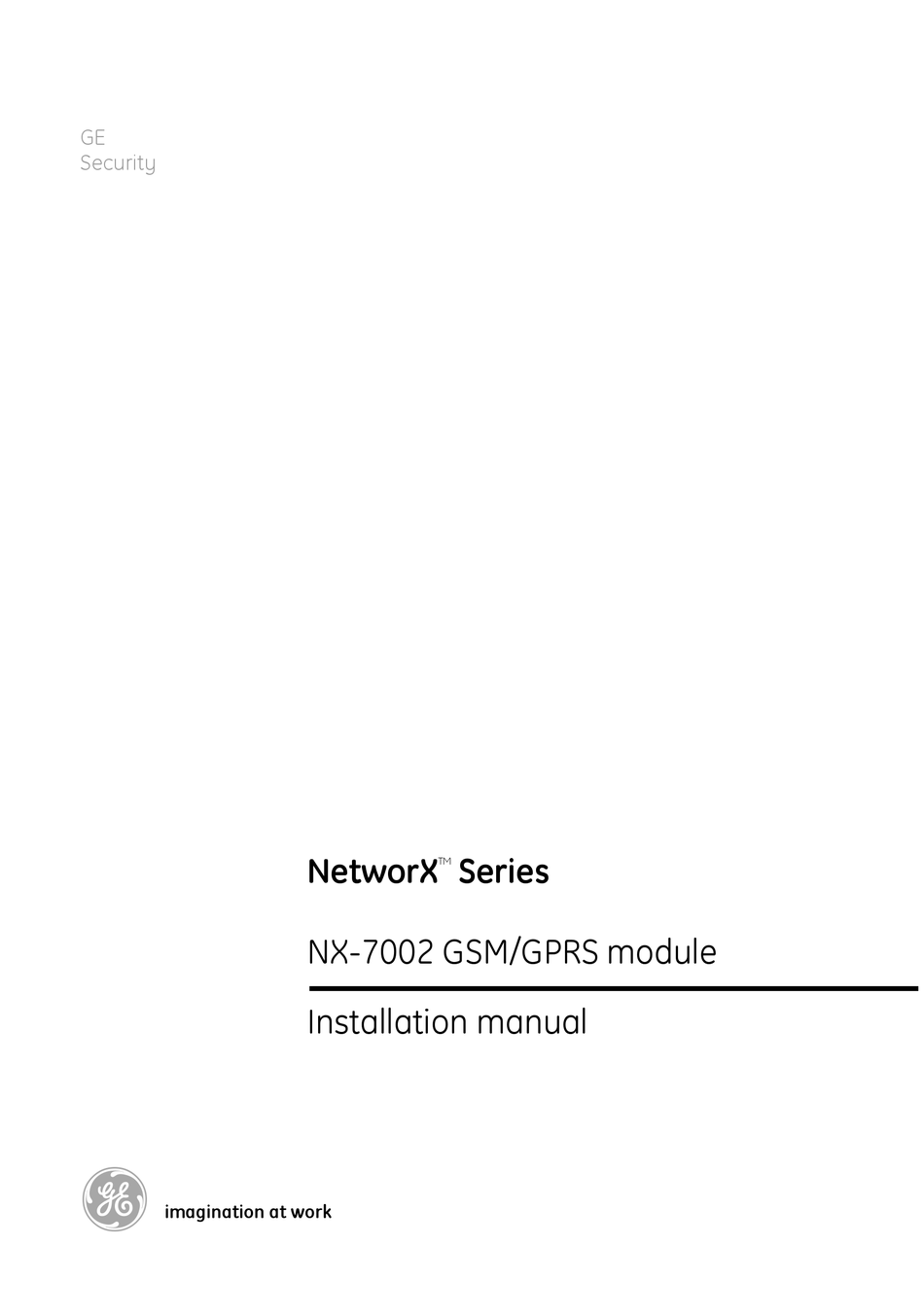

- Page 1 Security NetworX NX-7002 GSM/GPRS module Installation manual imagination at work Series...
- Page 2 NX-7002 Installation manual Page 2 09/02/05...
-
Page 3: Table Of Contents
CONTENTS ...3 GENERAL INFORMATION...4 ORDERING INFORMATION ...4 FEATURE DEFINITIONS ...5 PROGRAMMING HE NX-7002 GPRS MODULE ...7 NX-7002 ROGRAMMING THE VIA THE ENTERING THE PROGRAM MODE... 7 SELECTING THE MODULE TO PROGRAM... 7 PROGRAMMING A LOCATION... 7 EXITING A LOCATION... 7 EXITING THE PROGRAM MODE... -
Page 4: General Information
The NX-7002 is the GPRS module that can be added to the NetworX range of panels (NX-8- EUR, NX-6-EUR and NX-4-EUR). The NX-7002 GPRS module features include: • Wireless event reporting. • Six programmable report destinations. • Selectable reportable events from eight partitions. •... -
Page 5: Feature Definitions
EATURE DEFINITIONS Contact ID reporting protocol. Circuit Switched Data. This is the communication used to upload/download data. It is similar to a modem but it is wireless and built in to the NX-7002 (see locations 0, 162 segment 10 and location 168). - Page 6 SIM card PUK code See PUK code Short Message Service. SMS is a service for sending short text messages to mobile phones (see locations 1, 145, 163, 164, 167). Transparent mode Data is transferred directly from one modem to another modem (see location 0 segment 1). NX-7002 Installation manual Page 6 09/02/05...
-
Page 7: Programming He Nx-7002 Gprs Module
ROGRAMMING HE Programming the NX-7002 via the LED keypad ENTERING THE PROGRAM MODE To enter the program mode, press [*]-[8]. At this time, the five function LED’s (Stay, Chime, Exit, Bypass and Cancel) will begin to flash. Next, enter the “Go To Program Code” (factory default is [9]-[7]-[1]-[3]). -
Page 8: Exiting The Program Mode
EXITING THE PROGRAM MODE When all the desired changes in programming have been made, it is time to exit the program mode. Pressing the [Exit] key will exit this programming level and then return to the “Select a Module to Program” level. If no additional modules are to be programmed, pressing the [Exit] key again will exit the program mode. -
Page 9: Feature Selection Data
Once the data is programmed, press the [*] key to enter the data and advance to the next segment of that location. After the last segment of a location is programmed, pressing the [*] key will exit that location, turn the “Ready” LED off and the “Armed” LED on. As before, you are now ready to enter another programming location. -
Page 10: Start Up, Enrolling And Testing The Nx-7002
TART UP ENROLLING AND TESTING THE Inserting the SIM card Note: You must be free of all static electricity when handling electronic components. • Always power down the system before inserting a SIM Card. • Locate the SIM card holder •... -
Page 11: Enrolling The Sim Card On The Gsm Network
Enrolling the SIM card on the GSM network • Insert the SIM card. See Inserting the SIM card for more information. • Power up the NX-7002 GPRS module. • Enter programming mode. See Programming he NX-7002 GPRS module for more information. -
Page 12: Testing The Rssi Value
Testing the RSSI value During the enrolling procedure, it is mandatory to check the RSSI value (signal strength) of the NX-7002 GPRS module and record it in the system documentation. The RSSI value is linked to the signal level of the GSM network and ranges from 0-31 with 99 as unknown. The RSSI value may change due to environmental circumstances, for example, additional furniture or metal constructions. -
Page 13: Programming The Locations
ROGRAMMING THE LOCATIONS LOCATION 0 MODULE MODE OF OPERATION FEATURE SELECTION (8 segments) This location contains the system characteristics. Segment 1 Segment 2 Segment 3 Segment 4 Segment 5-8 NX-7002 Installation manual Enable site initiated downloading (*98 from a keypad) Enable remote initiated downloading This setting enables the PC to dial into the NX-7002. - Page 14 LOCATION 1 DESTINATION SELECTION FOR REPORT CONTROL 1 (1 segment) The NX-7002 contains up to six report controls. Each report control can be defined for SMS reporting, TCP/IP reporting or email reporting (not yet available). This location contains the report destination for report control 1. Select from the table below. DATA Disabled TCP/IP 1...
- Page 15 LOCATION 4 EVENT SELECTION FOR REPORT CONTROL 1 BY PARTITION (16 segments, feature selection data) All events for report control 1 are enabled by default. Select the partition(s) to include in the event report. Enabled events are formatted into one or more messages according to pre- configured settings and sent to the selected report destination.
- Page 16 LOCATION 12 EVENT SELECTION FOR REPORT CONTROL 3 BY PARTITION (16 segments, feature selection data) All events for report control 3 are disabled by default. See location 4. LOCATION 13 DESTINATION SELECTION FOR REPORT CONTROL 4 (1 segment) This location contains the report destination for report control 4. See location 1. LOCATION 14 BACKUP DESTINATION SELECTION FOR REPORT CONTROL 4 (1 segment) This location contains the backup report destination for report control 4.
- Page 17 LOCATION 24 EVENT SELECTION FOR REPORT CONTROL 6 BY PARTITION (16 segments, feature selection data) All events for report control 6 are disabled by default. See location 4. LOCATION 25 PRIMARY REPORTING FLAG FOR REPORT CONTROLS (1 segment) The NX-7002 contains up to six report controls. Turn on the relevant option to enable primary reporting for that report control.
- Page 18 LOCATION 62 NAME OF GPRS ACCESS POINT - APN, characters 33 - 48 (16 segments) See location 60. LOCATION 63 NAME OF GPRS ACCESS POINT - APN, characters 49 – 64 (16 segments) See location 60. LOCATION 64 - LOCATION 100 RESERVED LOCATION 101 DHCP ASSIGNED IP ADDRESS (4 segments)
- Page 19 LOCATION 144 TCP/IP 2 LINE NUMBER (4 segments) See location 141. LOCATION 145 SMS 1 ACCOUNT NUMBER (8 segments) The SIA account number used for SMS reporting. SIA account numbers are 6 digits long. Enter the first digit of the SIM PIN code in segment 3 (segment 1 and 2 are not used). Press * to move to the next segment.
- Page 20 LOCATION 162 TIMERS AND COUNTERS (16 segments, numerical data) Location 162 contains the duration of various system timing functions. Segment 1 Segment 2 Segment 3 Segment 4 Segment 5 Segment 6 Segment 7 Segment 8 Segment 9 Segment 10 Segment 11 Segment 12 Segment 13 Segment 14...
- Page 21 LOCATION 164 SMS 1 FORMAT (1 segment) The communicator format used to transmit to the SMS 1 report destination from the NX-7002 GPRS module. Consult the instructions for your central station receiver to determine which format is compatible. SIA reporting over SMS can be set to one of three modes: DATA SIA Separate Events SIA Combined Events...
- Page 22 LOCATION 165 SMS 2 PHONE NUMBER (20 segments) See location 163. LOCATION 166 SMS 2 FORMAT (1 segment) See location 164. Note: By default, not more than 20 SMS messages will be transmitted in a 24 hour time period. If needed, this number can be changed (see location 162 segment 3). LOCATION 167 SMS SERVICE CENTRE NUMBER (20 segments) This number is mandatory when SMS reporting is used.
- Page 23 LOCATION 174 DEVICE STATUS FLAGS (2 segments) This location contains specific status information of the GSM/GPRS module. If the option is ”On”, the status condition is true. Segment 1 Segment 2 LOCATION 175 GSM MODEM MANUFACTURER (READ ONLY) (16 segments) This location displays the manufacturer of the GSM/GPRS modem used on the NX-7002.
-
Page 24: Nx-7002 For Primary Or Backup Reporting
NX-7002 FOR PRIMARY OR BACKUP REPORTING NX-7002 for primary reporting The NX-7002 can be configured to be the primary transmitter. In this case, the NX-7002 acts as the main alarm reporting device. If the NX-7002 fails, for example, if there is no GSM coverage or there is jamming, if the network of the provider is down or there are technical problems on the receiver side, another device (the onboard dialler of the panel or an auxiliary dialler) can be configured to act as backup. - Page 25 The NX-7002 can be configured as the backup device of an auxiliary dialler (NX-590 TCP/IP module or NX-570 ISDN module): • Select the desired report control in location 1. • Enable the Autotest report options. • Ensure that the reporting format used with the auxiliary dialler is the same as the reporting format used in the NX-7002.
-
Page 26: Nx-7002 Programming Worksheets
NX-7002 DESCRIPTION Segment 1 (Circle Numbers To Program) Enable site initiated downloading (*98 from a keypad) Enable remote initiated downloading Remote initiated download must be from known source Enable remote download at test time Enable auto-answer incoming CSD GSM download call Callback required for incoming CSD GSM download call Use V.110 for site-initiated CSD GSM calls... - Page 27 DESCRIPTION Segment 1 Segment 2 Segment 3 Segment 4 Segment 5 Segment 6 Segment 7 Segment 8 Segment 9 Segment 10 Segment 11 Segment 12 Segment 13 Segment 14 Segment 15 Segment 16 DESTINATION SELECTION FOR REPORT CONTROL 3 BACKUP DESTINATION SELECTION FOR REPORT CONTROL 3 REPORT DELAY FOR REPORT CONTROL 3 Segment 1...
- Page 28 DESCRIPTION Segment 1 Segment 2 Segment 3 Segment 4 Segment 5 Segment 6 Segment 7 Segment 8 Segment 9 Segment 10 Segment 11 Segment 12 Segment 13 Segment 14 Segment 15 Segment 16 DESTINATION SELECTION FOR REPORT CONTROL 5 BACKUP DESTINATION SELECTION FOR REPORT CONTROL 5 REPORT DELAY FOR REPORT CONTROL 5 Segment 1...
- Page 29 DESCRIPTION Segment 1 Segment 2 Segment 3 Segment 4 Segment 5 Segment 6 Segment 7 Segment 8 Segment 9 Segment 10 Segment 11 Segment 12 Segment 13 Segment 14 Segment 15 Segment 16 PRIMARY REPORTING FLAGS FOR REPORT CONTROL 1 TO 6 Segment 1 (Circle Numbers To Program) On = Report Control 1 is Primary Reporting Flag / Off = Report Control 1 is Backup for control panel On = Report Control 2 is Primary Reporting Flag / Off = Report Control 2 is Backup for control panel...
- Page 30 DESCRIPTION Account number partition 1 Account number partition 2 Account number partition 3 Account number partition 4 Account number partition 5 Account number partition 6 Account number partition 7 Account number partition 8 TIMERS AND COUNTERS Segment 1 Max Number of network attempts Segment 2 Report attempts for Fail To Communicate Segment 3...
- Page 31 DESCRIPTION DEVICE STATUS FLAGS (read only) Segment 1 On = Communication with GSM modem OK On = SIM card PIN is OK On = Logged in to the GSM network On = Sending SMS On = Using GSM audio connection On = Using GSM CSD connection On = Connected to GPRS network On = SIM card PUK code required...
-
Page 32: Installation Guidelines
NSTALLATION GUIDELINES • Avoid installing the module: Where temperatures exceed 49°C or fall below 0°C. In the immediate vicinity of electronic equipment. In humid rooms. The module is not hermetically sealed and excess moisture on the circuit board can eventually cause an electrical fault. •... -
Page 33: Nx-7002 Layout And Description
NX-7002 Future use (VVMIQ) SIM card holder GPRS modem Connect antenna to this connector Header for software upgrade Connect to battery Connect main panel battery leads to these connectors Audio tap connector (CON5) If the NX-7002 uses the voice channel for event reporting, the special audio cable (included) needs to be stuffed between this connector of the NX-7002 and the Audio Tap connector of the control panel. -
Page 34: Technical Specifications
Technical specifications NX-7002 Power supply voltage Current consumption - Nominal - Maximum Battery Operating temperature Humidity Dimensions (PCB board only) WxHxD Weight (PCB board only) NX-7002 Installation manual ECHNICAL SPECIFICATIONS 12Vdc 30mA at 13.8Vdc up to 2 Amps peak max. 12V/7.2Ah 0 - 49°... -
Page 35: Appendix 1: Reporting Fixed Codes In Contact-Id And Sia
1: R PPENDIX EPORTING FIXED CODES IN The table below lists the event codes sent for the following reports (if enabled) when using Contact ID or SIA formats. REPORT MANUAL TEST AUTOTEST OPEN (User Number) CLOSE (User Number) CANCEL (User Number) DOWNLOAD COMPLETE START PROGRAM END PROGRAM... - Page 36 REPORT FAIL TO CLOSE ZONE ACTIVITY FAULT ZONE ACTIVITY RESTORE RF JAMMING RF JAMMING RESTORE SMOKE DETECTOR CLEAN ME SMOKE DETECTOR CLEAN ME RESTORE THE NUMBER IN PARENTHESES FOLLOWING THE EVENT IS THE NUMBER THAT WILL BE REPORTED AS THE ZONE NUMBER. IF THERE ARE NO PARENTHESES, THE ZONE WILL BE “0”.
-
Page 37: Appendix 2: Operator Id Codes
PPENDIX This appendix provides a list of operator codes and the associated operator name. Operator name Belgium Proximus Belgacom Mobile Mobistar Base Denmark TDC Mobil A/S Sonofon Hi3G Denmark ApS Telia A/S Denmark Orange A/S France Orange France Bouygues Telecom Germany T-Mobile Deutschland GmbH Vodafone D2 GmbH... - Page 38 Operator name Spain Vodafone Espana S.A. Retevision Movil S.A Telefonica Moviles Espana S.A. Sweden TeliaSonera Mobile HI3G Access AB Tele 2 AB Vodafone Sverige AB Swefour AB United Kingdom O2 (UK) Limited Vodafone Ltd Hutchison 3G UK Ltd T-Mobile (UK) Limited T-Mobile (UK) Limited T-Mobile (UK) Limited Orange PCS Ltd...
- Page 39 EMEA Distribution is a division of GE Security EMEA bvba COPYRIGHT ©2005 © GE Security EMEA bvba. All rights reserved. GE Security EMEA bvba grants the right to reprint this manual for internal use only. GE Security EMEA bvba reserves the right to change information without notice.
