Recommended Tools
Screw Gun
Tape Measure
Level
Hardware Used
#8 x
3
" Flat Head Wood Screws
/
4
#8 x 1
1
" Flat Head Wood Screws
/
4

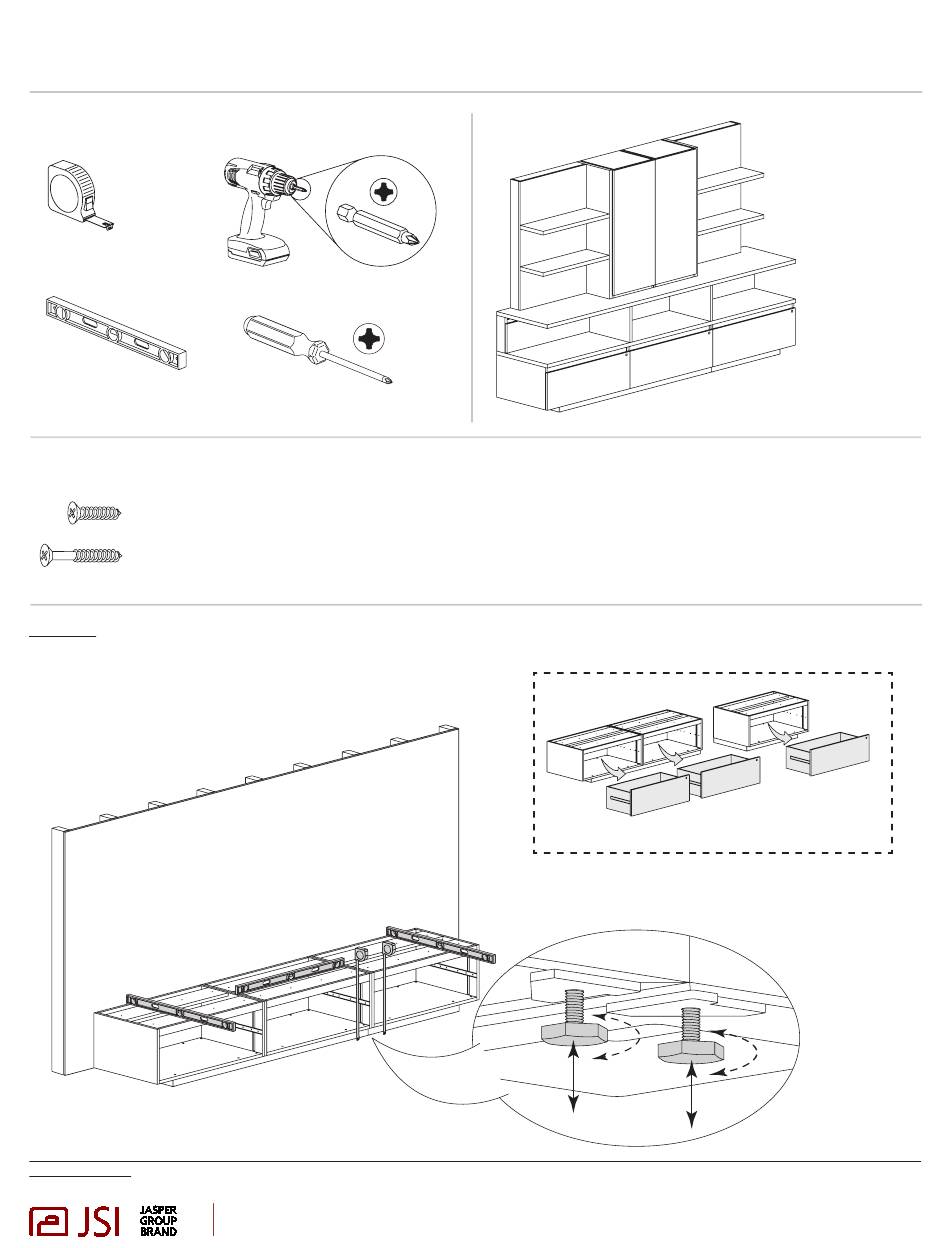

Step 1
Level Lateral Files
• Position lateral files in desired location against wall.
• Level all lateral files front-to-back and side-to-side
by rotating adjustable glides.
• Lateral files that share same worksurface are to
be adjusted to same height.
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
#2 Phillips Head Bit
#2 Phillips Screw Driver
jsifurniture.com
812.482.3204
800.457.4511
812.482.1548
Note: Remove Drawers for easier installation
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F
Installation Instructions
Wall Storage
Configuration
Page 1 of 3
Form No. INST-AP001
12/13/16
