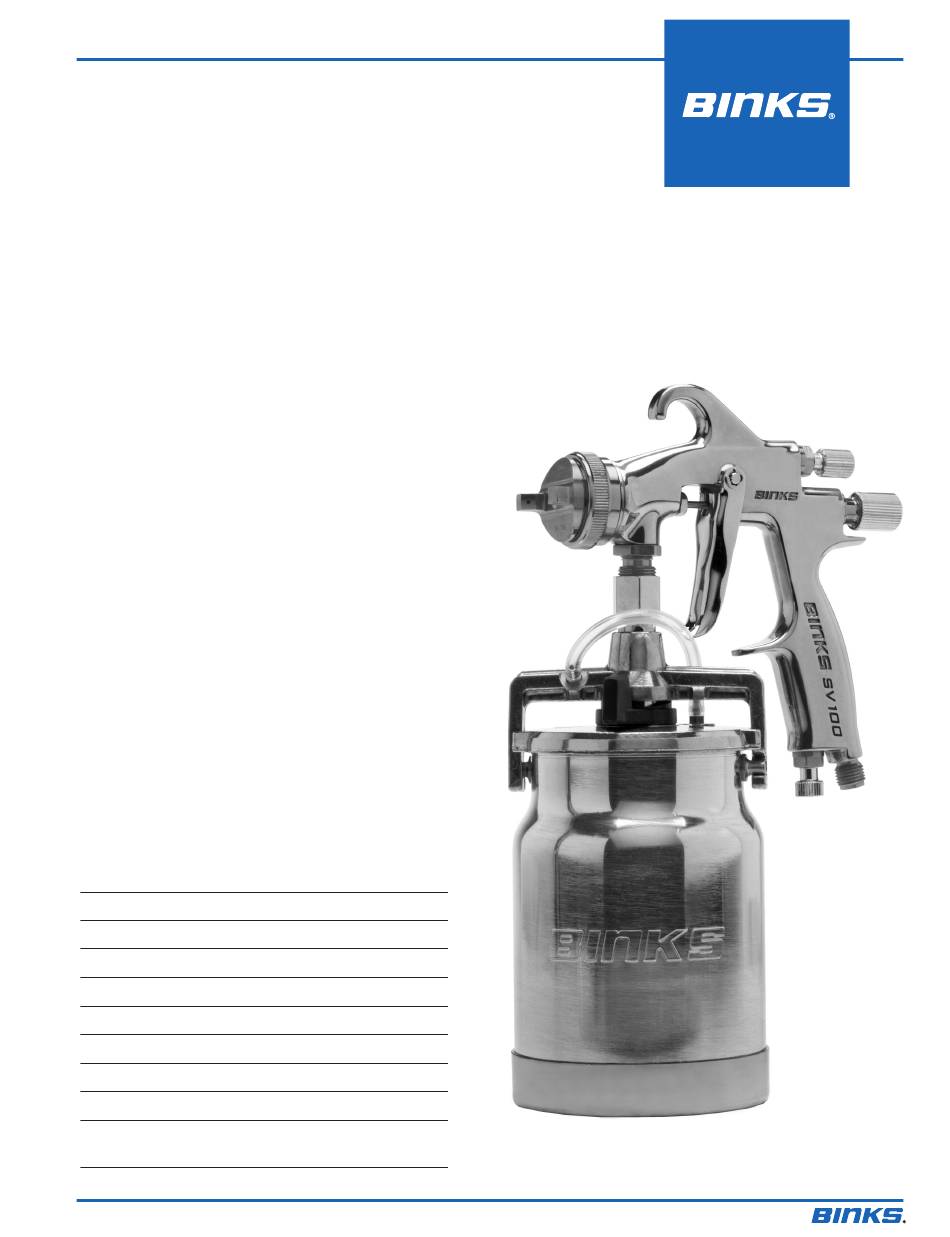

SERVICE MANUAL

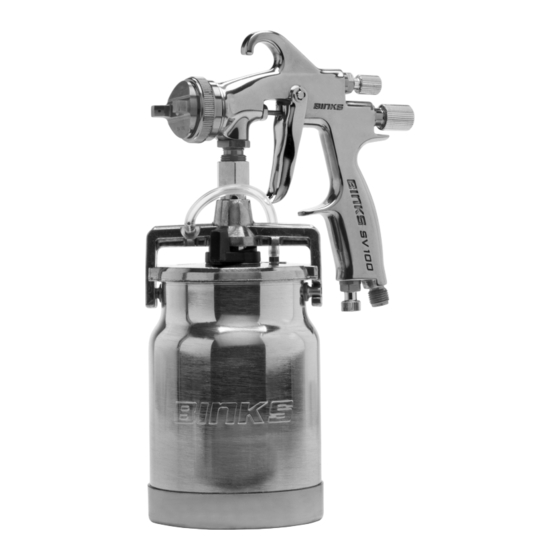

BINKS SV100 CONVENTIONAL
SUCTION FEED SPRAY GUN
The following instructions provide the necessary
information for the proper maintenance of the Binks
SV100 suction feed spray gun. Please read and
understand all the information in this document in
order to get the maximum performance from your
new SV100 suction spray gun.
The SV100 spray gun is the result of quality
engineering and development activity. The result is
an ergonomic product with reduced triggering effort
and fine atomization. The specification table details
the operating parameters of the gun. In addition,
the relatively low air flow rate of the SV100 spray
gun will help in containing overspray.
The SV100 spray gun should be operated under the
safety directions outlined in this literature. Your
safety and the safety of others depend on your
thorough understanding of the material contained
on the Part Sheet.
If you have any questions or do not understand the
content in this literature, call your nearest service
representative.
SPECIFICATIONS
Max. Air Pressure:
175psi/12 bar
Gun Body:
Cast Aluminum
Fluid Path:
Stainless Steel
Fluid Nozzle:
Stainless Steel
Fluid Needle:
Stainless Steel
Fluid Inlet Size:
3/8" NPS(M)
Air Inlet Size;
1/4" NPS(M)
Gun Weight:
1.17 lbs. (532 g)
SV100-630K
@30 psi 8 cfm
Air Consumption:
@50 psi 11 cfm
77-2876-R7.3 (11/2015)
1 / 8
EN
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Binks SV100
Summary of Contents for Binks SV100
-
Page 1: Specifications
The specification table details the operating parameters of the gun. In addition, the relatively low air flow rate of the SV100 spray gun will help in containing overspray. The SV100 spray gun should be operated under the safety directions outlined in this literature. - Page 2 IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT. FOR FURTHER SAFETY INFORMATION REGARDING THIS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300). Binks reserves the right to modify equipment specification without prior notice. 2 / 8...
- Page 3 Achieving a fine spray finish without the use of a good separator filter is virtually impossible. A Binks regulator / separator filter serves a double purpose. It eliminates blistering and spotting by keeping air free of oil and water, and it gives precise air pressure control at the gun.
-
Page 4: Parts List
BINKS SV100 CONVENTIONAL SUCTION FEED SPRAY GUN PARTS LIST (When ordering, please specify Part No.) ITEM PART ITEM PART DESCRIPTION QTY. DESCRIPTION QTY. SV100-630K AIR CAP ...........1 SGK-457 AIR ADJUSTING VALVE ASSEMBLY ..1 — FLUID TIP 1.8 mm w/GASKET ....1 —... - Page 5 BINKS SV100 CONVENTIONAL SUCTION FEED SPRAY GUN SPRAY TECHNIQUE AIR NOZZLE, FLUID NOZZLE, OPERATING THE SV100 FLUID NEEDLE The first requirement for a good resultant SPRAY GUN finish is the proper handling of the gun. 1. All nozzles and needles are precision The gun should be held perpendicular to made.
- Page 6 NOTES 6 / 8 77-2876-R7.3 (11/2015)
- Page 7 NOTES 77-2876-R7.3 (11/2015) 7 / 8...
-
Page 8: Warranty Policy
WARRANTY POLICY Binks products are covered by Finishing Brands one year materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Finishing Brands, will void all warranties. For specific warranty information please contact the closest Finishing Brands location listed below.
