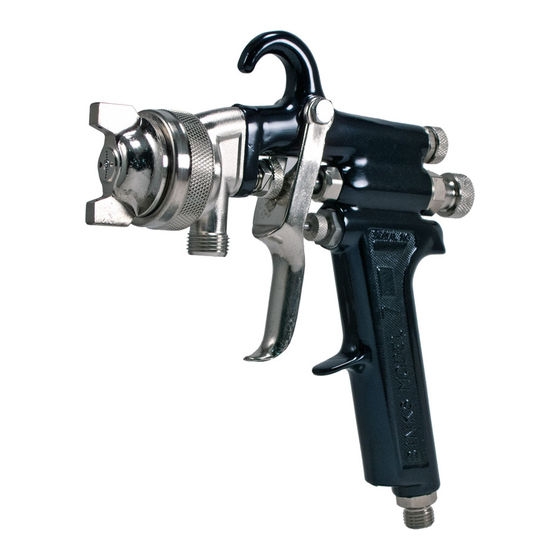

Your new Binks spray gun is exceptionally
rugged in construction, and is built to stand
up under hard, continuous use. However, like
any other fine precision instrument, its most
efficient operation depends on a knowl edge
of its construction, operation, and mainte-
nance. Properly handled and cared for, it will
produce beautiful, uniform finishing results
long after other spray guns have worn out.

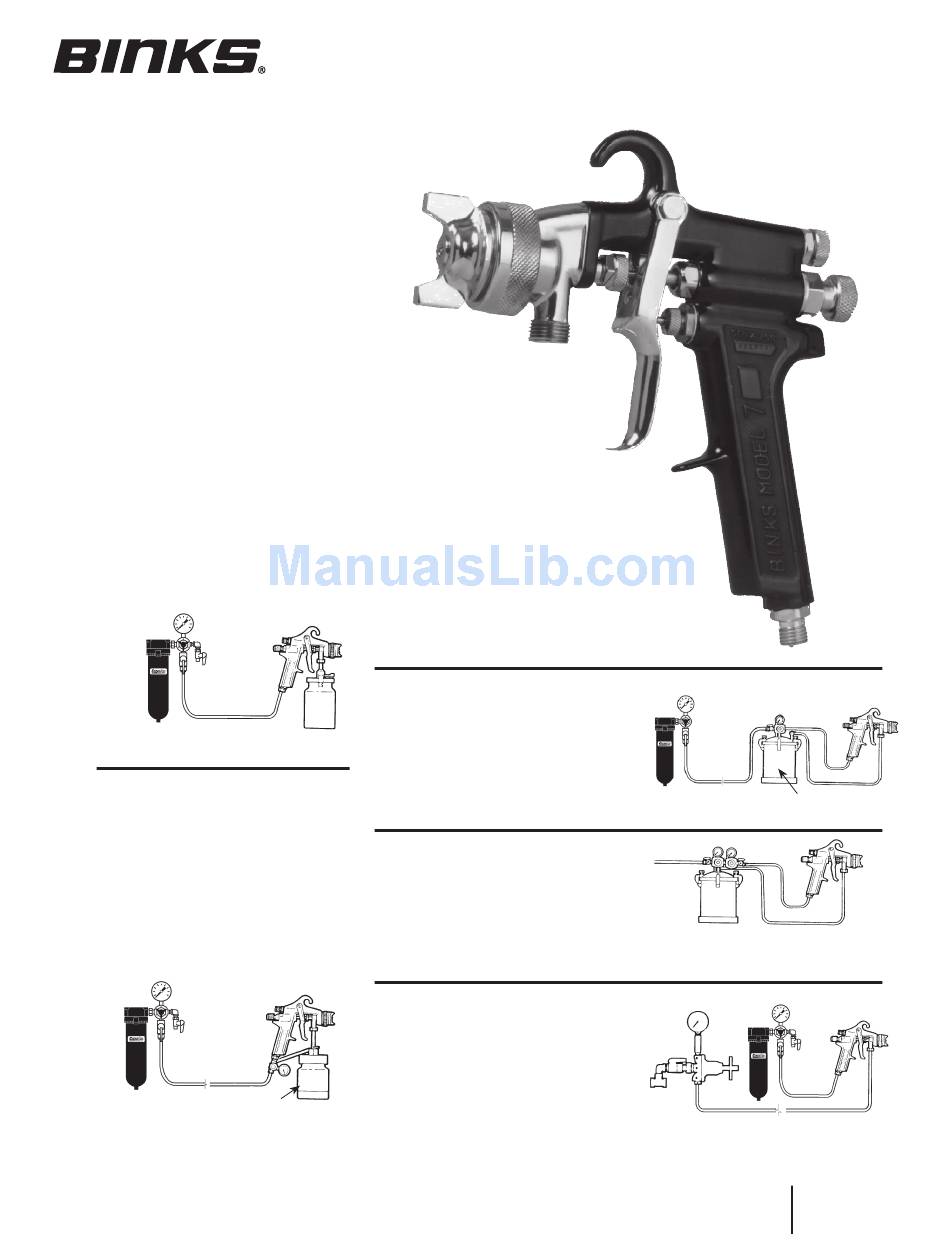

TyPeS of InSTallaTIon

SIPHon feeD CUP HooKUP
Air pressure for atomization is regulated at
extractor. The amount of fluid is adjusted by
fluid control screw on gun, viscosity of
paint, and air pressure (see figure 1).
Clean air™
filter
air
figure 1
Siphon Cup
PReSSURe feeD CUP HooKUP
For fine finishing with limited spraying.
Air pressure for atomization is regulated at
extractor; fluid pressure at cup regulator.
For heavy fluids and internal mix nozzle
spraying, fluid adjusted by control screw
on gun.
Pressure cup also available less regulator
(see figure 2).
Clean air™
filter
Cup
Regulator
air
fluid Pressure
figure 2
Cup
Binks Model 7
(6100-XXXX-X)
PReSSURe feeD TanK HooKUP
For medium production spraying
(sin gle regulator).
Air pressure for atomi zation is regulated at
extractor, fluid pressure at tank regulator
(see figure 3).
PReSSURe feeD TanK HooKUP
For portable painting operations
(double regulator).
Air pressure for atomization and fluid sup-
ply is regulated by two individual air regu-
lators on tank (see figure 4).
PReSSURe feeD CIRCUlaTInG
HooKUP
For heavy production spraying.
Air pressure atomization regulated at
extractor. Fluid pressure regulated at fluid
regulator (see figure 5).

Spray Gun

Clean air™
filter
air
Inlet
figure 3
air Supply
air
Supply
Pressure
Tank
figure 4
Clean air™
filter
fluid
Regulator
fluid
figure 5
Replaces
Part Sheet
77-1153R-22
air
fluid
Pressure
Tank
fluid
air
Part
Sheet
77-1153R-23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Binks 7

  • Page 1: Spray Gun

    Binks Model 7 Spray Gun ™ (6100-XXXX-X) Your new Binks spray gun is exceptionally rugged in construction, and is built to stand up under hard, continuous use. However, like any other fine precision instrument, its most efficient operation depends on a knowl edge of its construction, operation, and mainte- nance.
  • Page 2 Do not operate the equipment if you are uncertain about its condition. IT IS THe ReSPonSIBIlITy of THe eMPloyeR To PRovIDe THIS InfoRMaTIon To THe oPeRaToR of THe eqUIPMenT. foR fURTHeR SafeTy InfoRMaTIon ReGaRDInG BInKS anD DevIlBISS eqUIPMenT, See THe GeneRal eqUIPMenT SafeTy BooKleT (77-5300).
  • Page 3 Start Pull trigger stroke stroke trigger RIGHT The spray pattern of the Binks gun is In normal operation, the variable from round wings on the nozzle are hori- Spray width to flat with all zontal as illustrated here. adjustment patterns in between.
  • Page 4 faUlTy PaTTeRnS anD HoW To CoRReCT THeM PaTTeRn CaUSe CoRReCTIon Dried material in side-port Dissolve material in side-ports with thinner, “A” restricts passage of air. then blow gun clean. Do not poke into Greater flow of air from openings with metal instruments. cleaner side-port “B”...
  • Page 5 Binks MoDel 7 SPRay GUn GeneRal MaInTenanCe ™ SPRay GUn aIR nozzle, flUID nozzle, neeDle Keep thinner 1. Immerse only the 1. All nozzles and needles are precision made. They should be level below front end of the gun handled with care.
  • Page 6 Binks MoDel 7 SPRay GUn ™...
  • Page 7: Parts List

    • Items noT available separately. O ptional. Please order separately. ♦ Available only as a quantity pack.  ★ Available from Binks distributors only. 54-839 Heavy Duty Spring (Optional). nozzle anD neeDle SeleCTIon CHaRT CfM aT Max. aIR nozzle TyPe of flUID vISCoSITy...
  • Page 8: Air Supply

    Cross section view showing comparison of inside hose diameters (actual size). 60 lbs. regulated pressure WaRRanTy This product is covered by Binks’ 1 Year Limited Warranty. Binks Sales and Service: www.binks.com U.S.a./Canada Customer Service Toll Free Customer Service 77-1153R-23 Revisions: Trademark updates;...
