Binks Signature Series Manual

Model 95 Signature Series
Spray Gun
This handheld gun is the premier spray
gun in the Binks line. A combination
of the three best industrial spray guns,
Model 95 sets a new standard.
The Model 95 is a high production
gun with stainless steel fluid passages
which may be used with most coat-
ings. This new gun replaces Models
18, 62 and BBR spray guns, incorpo-
rating the best features of all three:
drop-forged anodized alumninum
body, stainless steel fluid passages,
adjustable floating needle valve, stain-
less steel or tungsten carbide fluid
nozzle, plated drop-forged brass self-
centering air nozzle, brass air valve
cartridge, adjustable spray pattern,
3/8" NPS(m) fluid inlet, 1/4" NPS(m)
air inlet. Weight 1 lb., 11 oz.
TYPES OF INST LL TION
SIPHON FEED CUP HOOKUP
Air pressure for atomization is regulated at
extractor. The amount of fluid is adjusted by
fluid control screw on gun, viscosity of paint,
and air pressure (see figure 1).
Extractor
ir
Siphon Cup
Figure 1
PRESSURE FEED CUP HOOKUP
For fine finishing with limited spraying.
Air pressure for atomization is regulated at
extractor; fluid pressure at cup regulator. For
heavy fluids and internal mix nozzle spray-
ing, fluid adjusted by control screw on gun.
Pressure cup also available less regulator
(see figure 2).
Oil & Water
Extractor
Cup
Regulator
ir
Fluid
Pressure Cup
Figure 2

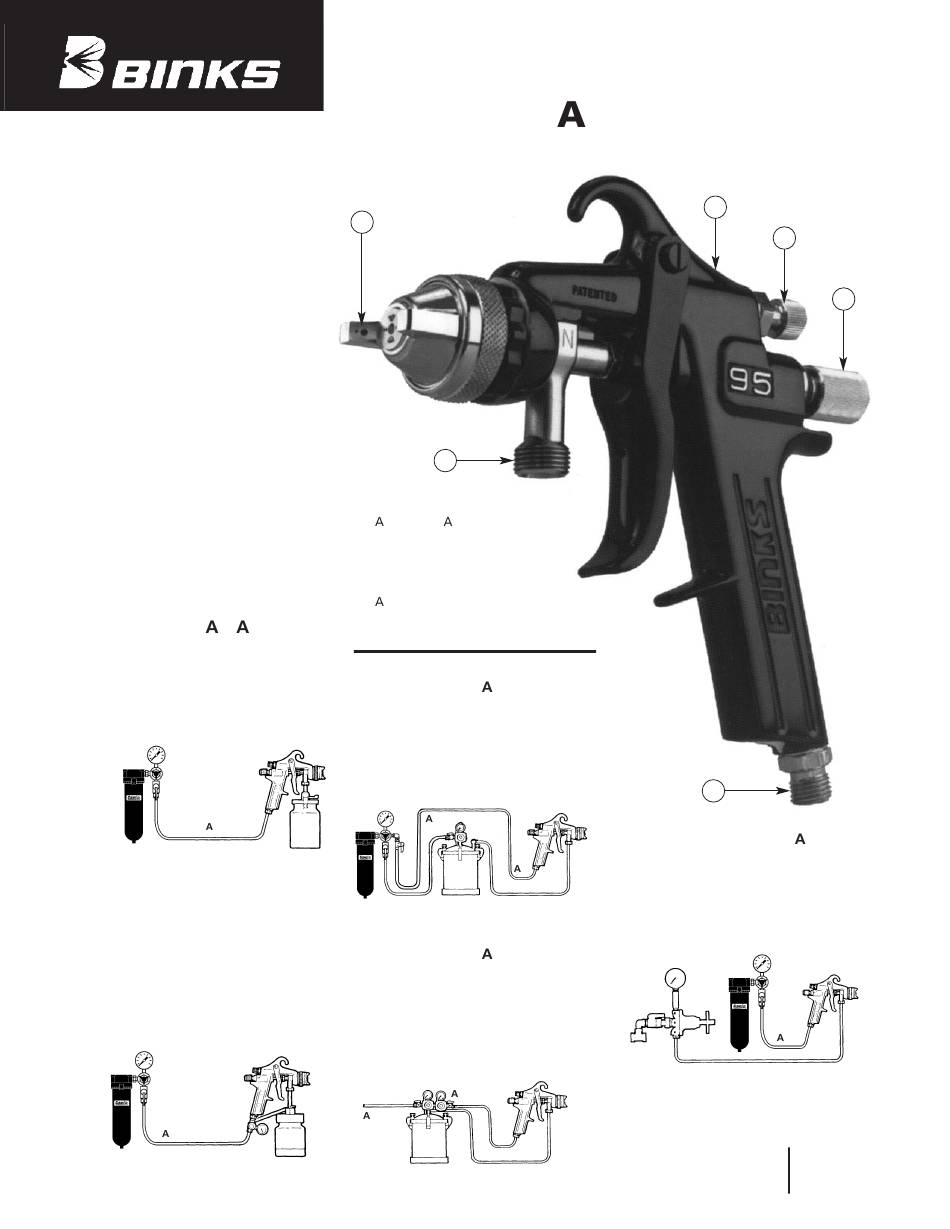

Binks Model 95
SPR Y GUN
6121-XXXX-X
1
6
Illustration Key
1. ir Nozzle ssembly
2. Gun Body
3. Side Port Controls
4. Fluid Control Knob
5. ir Connection 1/4" NPS(m)
6. Fluid Connection 3/8" NPS(m)
PRESSURE FEED T NK HOOKUP
For medium production spraying (sin-
gle regulator).
Air pressure for atomization is regulated
at extractor, fluid pressure at tank regulator
(see figure 3).
Extractor
ir
Fluid
Inlet
Outlet
ir
Pressure
Tank
Figure 3
PRESSURE FEED T NK HOOKUP
For portable painting operations
(double regulator).
Air pressure for atomization and fluid
supply is regulated by two individual air
regulators on tank (see figure 4).
ir Supply
ir
Supply
Pressure
Tank
Fluid
Figure 4
2
5
PRESSURE FEED CIRCUL TING
HOOKUP
For heavy production spraying.
Fluid
Air pressure atomization regulated at
extractor. Fluid pressure regulated at fluid
regulator (see figure 5).
Extractor
Fluid
Regulator
Figure 5
Part Sheet
77-2625R-8
3
4
ir
Fluid
Replaces Part
Sheet
77-2625R-9
