Binks Mach 1 Cub SL HVLP Gun is
the finest touch-up and specialty coat-
ings gun available today. The gun has
been ergonomically designed to give
operators superb control and comfort
over a range of uses. You feel the gun's
excellent balance and heft as soon as
you pick it up. The Mach 1 Cub SL
offers three options for fluid supply:
siphon feed, pressure assist feed, and
pressure feed tank hook-ups, making it
one of the most flexible guns for touch-
up work available. The gun body is
made of the finest forged aluminum and
machined to exacting tolerances.
Overall quality is reflected in the gun's
lustrous and durable anodized finish.
The Mach 1 Cub SL gun operates at
high efficiencies, transferring 65 percent
or more of the fluid to the substrate.
It fully meets operating pressures and
material transfer requirements of
California's South Coast Air Quality
Management District regulations as a
high volume, low pressure spray gun.
High pressure, low volume air flow is
converted to high volume, low pressure
flows within the gun body. Special air
and fluid nozzles enable the gun to
atomize fluid at low velocities, creating
a soft spray effect for high transfer
efficiencies.
The Mach 1 Cub SL gun is especially
favored in the automotive touch-up and
detailing industries and is well-suited to
other specialty finishing and small area
applications. Several options in fluid
nozzle sizes make the gun adaptable to
a variety of uses. See the Parts List on
page 2 and Fluid Nozzle Table on page
7 for these options.
This Part Sheet contains an exploded
drawing and detailed parts list to enable
a complete understanding of the gun's
construction. A basic overview of gun
operation, cleaning, care and mainte-
nance, and troubleshooting of common
problems is also provided.
noTE
Important regulatory note regarding
the use of this product appears on page 8.
Binks Cub SL HVLP
TouCH-uP and CoaTingS
SPray gun
7011-XXXX-X
3
2

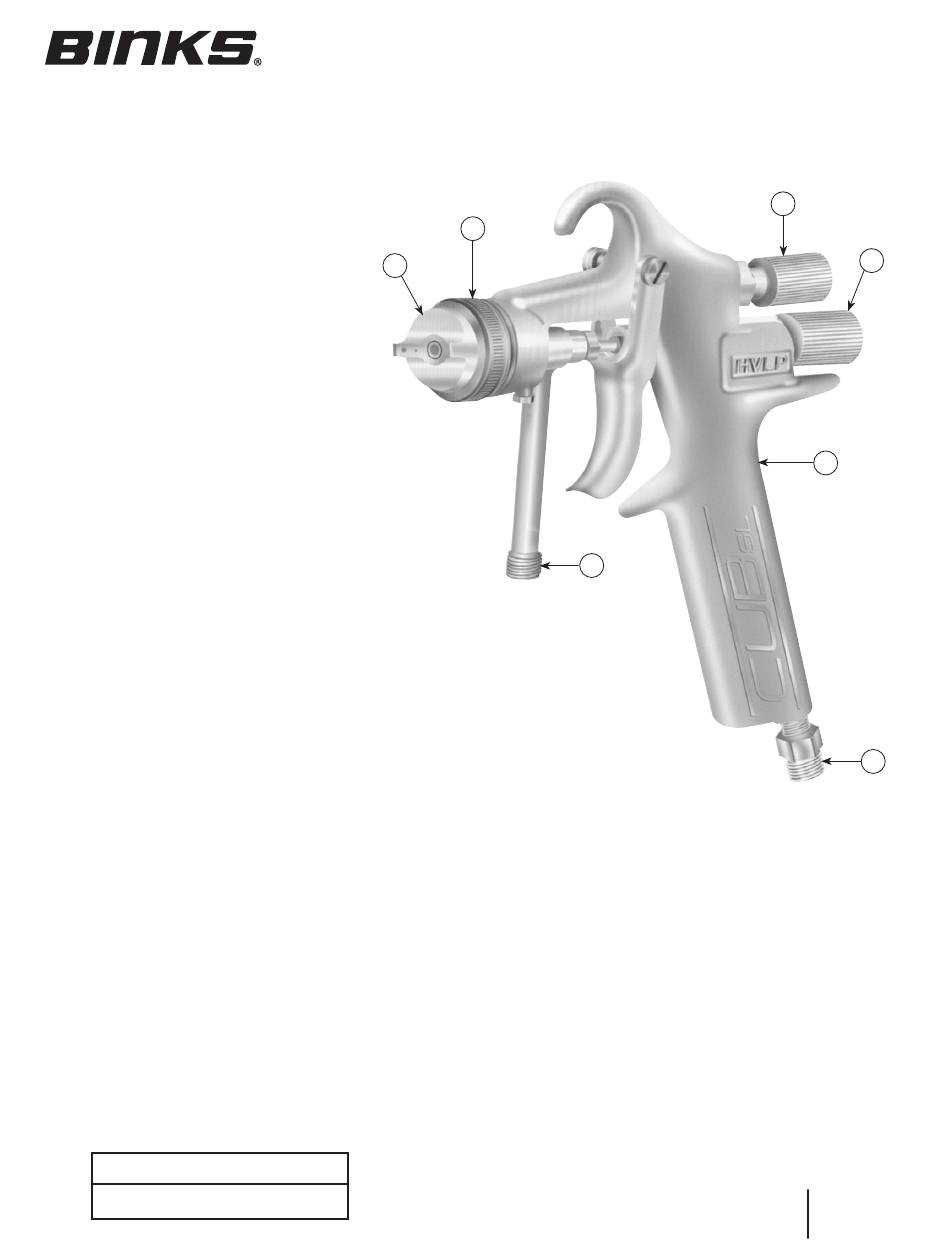

IllustratIon Key
1. Fluid Inlet, 1/4 NPS(m)
2. Air Nozzle
3. Retaining Ring
4. Fan Control
5. Fluid Control Knob
6. Gun Body
7. Air Inlet 1/4 NPS(m)
optIons:
Available cup options for siphon and pressure
assist applications.
(Sold separately):
8 Ounce Siphon Cup Assembly
8 Ounce Pressure Assist Cup Assembly
The Mach 1 Cub SL can also be used with pressure-feed
tank hook-ups. More information about these uses can
be found on page 3.
pacKage contents
Please note your Binks Mach 1 Cub SL Gun Package was shipped
with the following contents. If anything in the following list is missing,
contact 1-800-992-4657.
DescrIptIon
Mach 1 Cub SL HVLP Spray Gun
Gunners Mate ...................................54-3871
Cub SL Part Sheet .............................2734R-1
Small Brush .......................................54-4133
Gun Brush .........................................OMX-88
Product Registration Card ...............77-5177
1
81-384
81-382
part no.
Qty.
1
1
1
1
1
1
Replaces
Part Sheet
77-2734R-6
4
5
6
7
part
sheet
77-2734r-7
