INTRODUCTION
This unique spray gun is engineered with sprayer comfort,
operating simplicity, and paint usage efficiency in mind.
Ideal for automotive refinishing, test labs, touch-up spray-
ing, and small batch production spraying.
Light-weight, well balanced, and ergonomically contoured
gun handle eliminates operator fatigue.
Gravity feed spray method allows for fast paint fill and
maximum paint usage from the cup, eliminating paint
waste during the gun clean-up. It also eliminates cumber-
some pressure feed equipment. Requires only one air hose
for operation. For waterborne, solvent based materials,
ceramics, gel-coats, and wet out jobs.

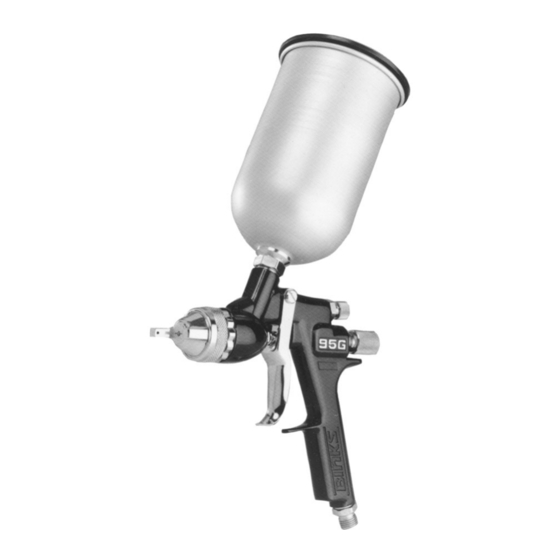

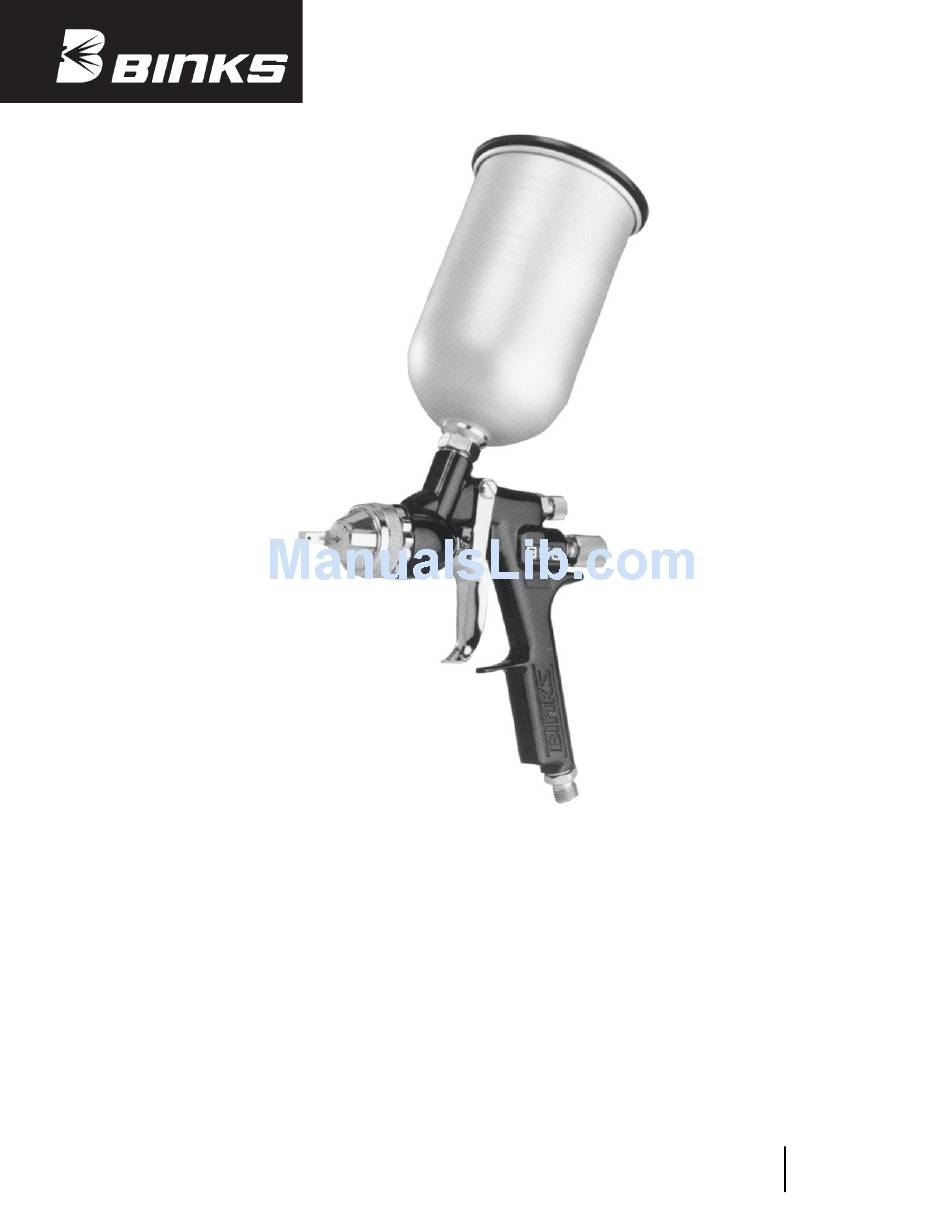

Model 95G
Gravity Feed Spray Gun
FEATURES:
• Proven technology of 60 Series air and fluid nozzles.
• Stainless steel fluid needle and nozzle.
• Light-weight gun body. (1 lb., 11 oz. with cup)
• Wide gun trigger for operator comfort during spraying.
• Precise fan pattern size adjustment.
• Offered with standard 1 liter aluminum anodized cup.
Replaces
Part
Part Sheet
Sheet
77-2652R-6
77-2652R-7
Advertisement
Table of Contents
Related Manuals for Binks 95G
Summary of Contents for Binks 95G
- Page 1 Model 95G Gravity Feed Spray Gun INTRODUCTION FEATURES: This unique spray gun is engineered with sprayer comfort, • Proven technology of 60 Series air and fluid nozzles. operating simplicity, and paint usage efficiency in mind. • Stainless steel fluid needle and nozzle.
- Page 2 FOR FURTHER SAFETY INFORMATION Inspect the equipment for worn or broken parts on a daily basis. Do not operate the equipment REGARDING BINKS AND DEVILBISS EQUIPMENT, if you are uncertain about its condition. SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300).
-
Page 3: Troubleshooting
OPERATION AND MAINTENANCE INSTRUCTIONS Your new Model 95G Gravity Feed Spray Gun is excep- CONNECTING GRAVITY FEED CUP TO GUN tionally rugged in construction and is built to stand up Screw the cup into the spray gun fluid inlet. Fill the cup under hard, continuous use. - Page 4 GENERAL SPRAY INSTRUCTIONS To reduce overspray and obtain maximum efficiency, Generally use 30 to 35 psi air at gun inlet (see below). always spray with the lowest possible fluid/air pressure Unusually heavy, difficult to atomize materials may that produces an acceptable spray pattern. require up to 50 psi at gun inlet.
- Page 5 No. 60 Series nozzles. *Fluid flow in cc/minute. Divide above fluid flow by NOTE 29.6 to convert to fluid ounces (U.S.) Pressure feed type air nozzles are not recommended to be used with Model 95G Gravity Feed Spray Gun.
-
Page 7: Parts List
HEAD INSERT ........ 54-4439† AIR CONNECTION 1/4 BSP 54-4369 ▲ HEAD INSERT SEAL RING ..........(Not Shown) 54-4227 95G GRAVITY FEED HANDLE 54-4360 TRIGGER ........ASSEMBLY ........54-4370 ▲ SEAL CARTRIDGE ASSEMBLY..54-4359 TRIGGER STUD ......54-3513 VALVE SPINDLE CAP..... -
