INTRODUCTION

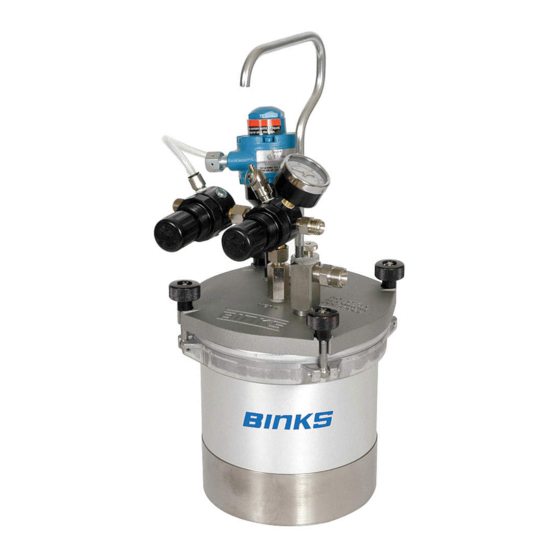

Binks Steadi-Grip "SG-2" Pressure Cup is ideal for component
spraying and industrial applications where small batch production
spraying is required. The 2 qt. capacity is sufficient to complete
large spray jobs without refilling the cup. Its lightweight and
rugged construction is excellent for portability allowing the
operator to make fluid and air control adjustments quickly and
efficiently at the spray station.
The internal construction is designed for waterborne and solvent
base materials.
Other features include:
• Stainless steel pick-up tube, fluid fittings and removable
plastic liner makes it corrosion resistant.
• "Wide-mouth" opening allows easy cleaning, plastic liner
removal and quick color change.
• Positive grip carrying handle for operator comfort.
• Wide stainless steel base for stability and corrosion
resistance.
• 0-15 psig fluid pressure range.
• Optional 0-40 psig pressure kit available for high viscosity
fluids.
• Fluid agitator on model 80-351 for metallics and paints
requiring continuous agitation
SPECIFICATIONS
MAX. WORKING PRESSURE . . . . . . . . . . . .50 psig
OVERALL HEIGHT
WITH AUXILIARY HANDLE
WITHOUT AUXILIARY HANDLE . . . . . . .11 3/4 in.
BASE DIAMETER
. . . . . . . . . . . . . . . . . . . .6 in.
DIA. ACROSS CLOSED CLAMPS . . . . . . . . . .8 1/16 in.
DIA. ACROSS OPEN CLAMPS . . . . . . . . . . .8 1/16 in.
AIR INLET & OUTLET CONNECTION SIZE . .1/4 NPS (m)
FLUID OUTLET CONNECTION SIZE . . . . . . .3/8 NPS (m)
FLUID CAPACITY . . . . . . . . . . . . . . . . . . . . .2 Qts. (U.S.)
WEIGHT
STANDARD UNIT . . . . . . . . . . . . . . . . . . .4 lb.13oz.
UNIT WITH AGITATOR . . . . . . . . . . . . . .5lb.6oz.
WARNING
!
All air and fluid pressure in the system must be relieved
before servicing the cup and before cup is filled or cleaned.
Attempting to service the cup while pressurized could
result in damage to components or personal injury.

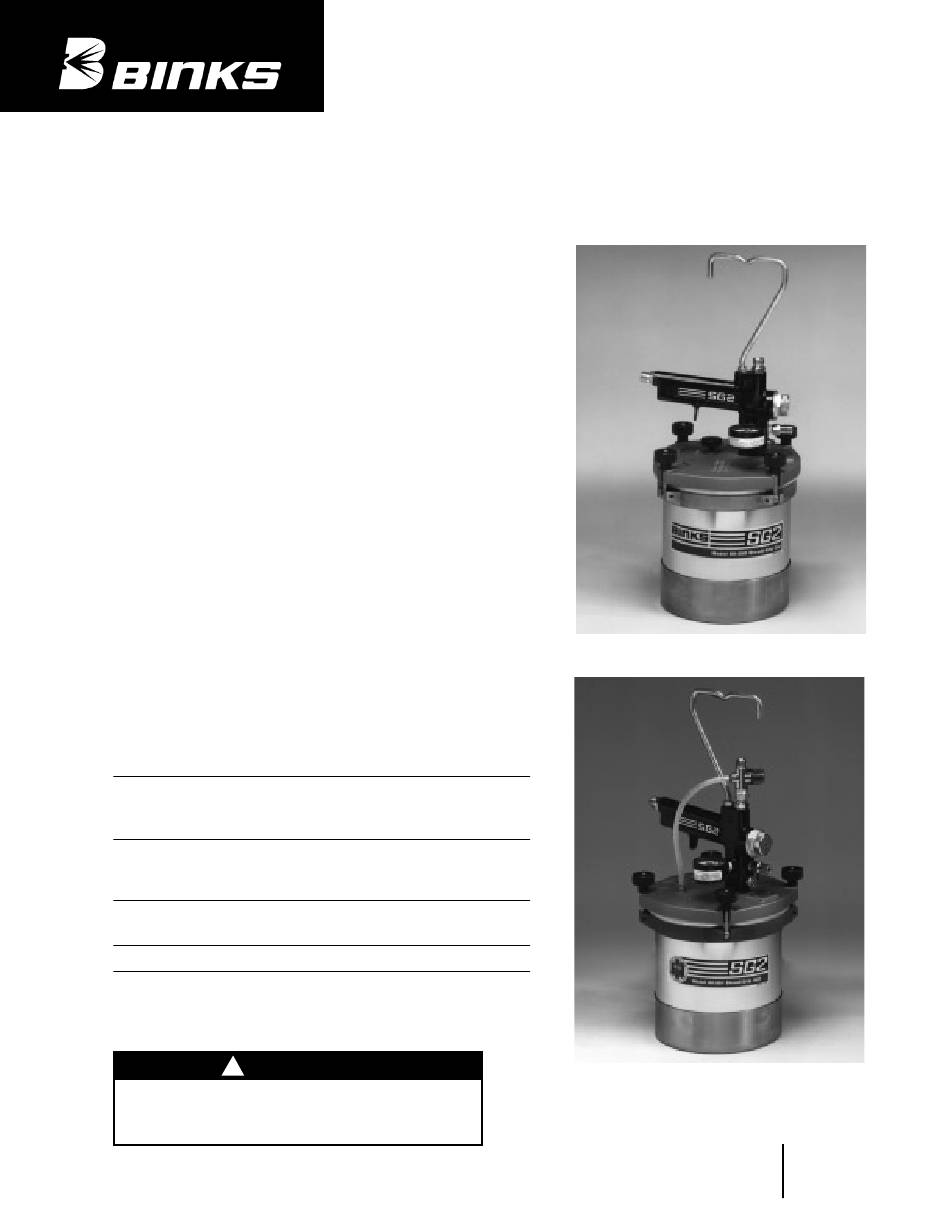

Binks STEADI-GRIP "SG-2"
2 QT. PRESSURE CUPS
Model No. 80-350 (Standard)
Model No. 80-351 • (with Agitator)
3.5 KG/cm
. . . . . . . . . .16 9/16 in.
42.06 cm
29.85 cm
15.24 cm
20.47 cm
20.47 cm
1.9 Liters
2.18 kg.
2.44 kg.
MODEL NO. 80-350 (Standard)
2
--
--
MODEL NO. 80-351 • (with Agitator)
• Available from Industrial Finishing distributors only.
Replaces
Part
Part Sheet
Sheet
2658R-3
77-2658R-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STEADI-GRIP SG-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Binks STEADI-GRIP SG-2

  • Page 1 Model No. 80-350 (Standard) Model No. 80-351 • (with Agitator) INTRODUCTION Binks Steadi-Grip “SG-2” Pressure Cup is ideal for component spraying and industrial applications where small batch production spraying is required. The 2 qt. capacity is sufficient to complete large spray jobs without refilling the cup. Its lightweight and...
  • Page 2: Setup And Operation

    SETUP AND OPERATION Refer to “TYPICAL INSTALLATION” drawing below Set up the Steadi-Grip “SG2” with the CONVENTIONAL WARNING or HVLP gun along with at least 5 ft. of air and fluid hose. Chlorinated solvents and aluminum are incompatible and Attach air hose from extractor to air inlet on handle of steadi- will cause an adverse chemical reaction, possibly resulting in grip assembly.
  • Page 3: Spray Technique

    End of Stroke Trigger Trigger Stroke WRONG RIGHT Binks STEADI- GRIP 2 OUTFIT HVLP GUN OUTFITS 98-1198 • OUTFIT MACH 1SL Gun with Standard cup consisting of: 80-350 STEADI-GRIP 2 QT. PRESSURE POT (Std.). 73-125 AIR FLOW CONTROLLER, Mounted on gun inlet.
  • Page 4 MODEL 80-350 PRESSURE CUP (Standard) • • • • • • • • • Items NOT available separately.
  • Page 5: Parts List

    AUXILIARY HANDLE .... 1 NOTE To convert to High Pressure Kit (0-40 psig), see page 8. ACCESSORIES 80-353 PRESSURE CUP REPAIR KIT (Not furnished. Please order separately) (Models 80-350, 80-351 Steadi-Grip SG-2 Pressure Cups) PART DESCRIPTION QTY. PART DESCRIPTION QTY.
  • Page 6 Model 80-351 PRESSURE CUP WITH AGITATOR Items NOT available separately.
  • Page 7 80-385 FLUID TUBE ASSEMBLY ....1 Items NOT available separately. Available only as quantity pack. ACCESSORIES AGITATOR REPAIR KIT 80-354 (Not furnished. Please order separately.) (Model 80-351 Steadi-Grip SG-2 Pressure Cup with Agitator) PART PART DESCRIPTION QTY. DESCRIPTION QTY. 80-356 CANNISTER LINER QUANTITY PACK ..12/pk.
  • Page 8: Conversion Instructions

    To convert to high pressure (0-40 psig) remove spring are provided in 80-352 kit. cap (1) and replace spring (2) with an 85-80 spring. WARRANTY This product is covered by Binks’ 1 Year Limited Warranty. Binks Worldwide Sales and Service Listing: www.binks.com Industrial Finishing Automotive Refinishing Binks has authorized distributors throughout the world.
