Binks MACH 1 Operation And Maintenance

The Binks MACH 1 HVLP gun is a
top quality high performance air spray
gun. You only have to pick it up to
feel the difference. Its superbly
balanced forged aluminum body offers
the operator extra comfort and control.
All of the gun's components are
machined and finished to exacting
tolerances and only the best materials
are used, ensuring years of peak
efficiency.
The MACH 1 HVLP airspray gun has
special nozzles and modifications that
allow it to operate at high transfer
efficiencies in compliance with the
"California South Coast Air Quality
Management District" regulations as
a "high volume, low pressure"
airspray gun.
The air inlet passage in the gun body
incorporates a venturi which limits
airflow. High pressure, low volume
airflow is converted to high volume,
low pressure at this point. Special air
and fluid nozzles enable the gun to
atomize fluid at low air pressures and
velocities, creating the "soft spray"
effect for high transfer efficiencies.
To obtain optimum performance from
your new MACH 1 HVLP airspray
gun, read all instructions carefully.
NOTE
IMPORTANT REGULATORY NOTE regarding
the use of this product appears on page 8.
Binks MACH 1, Mach 1V,
HVLP Spray Gun
MACH 1 With Adjustable Fluid Inlet
4
1
2
3

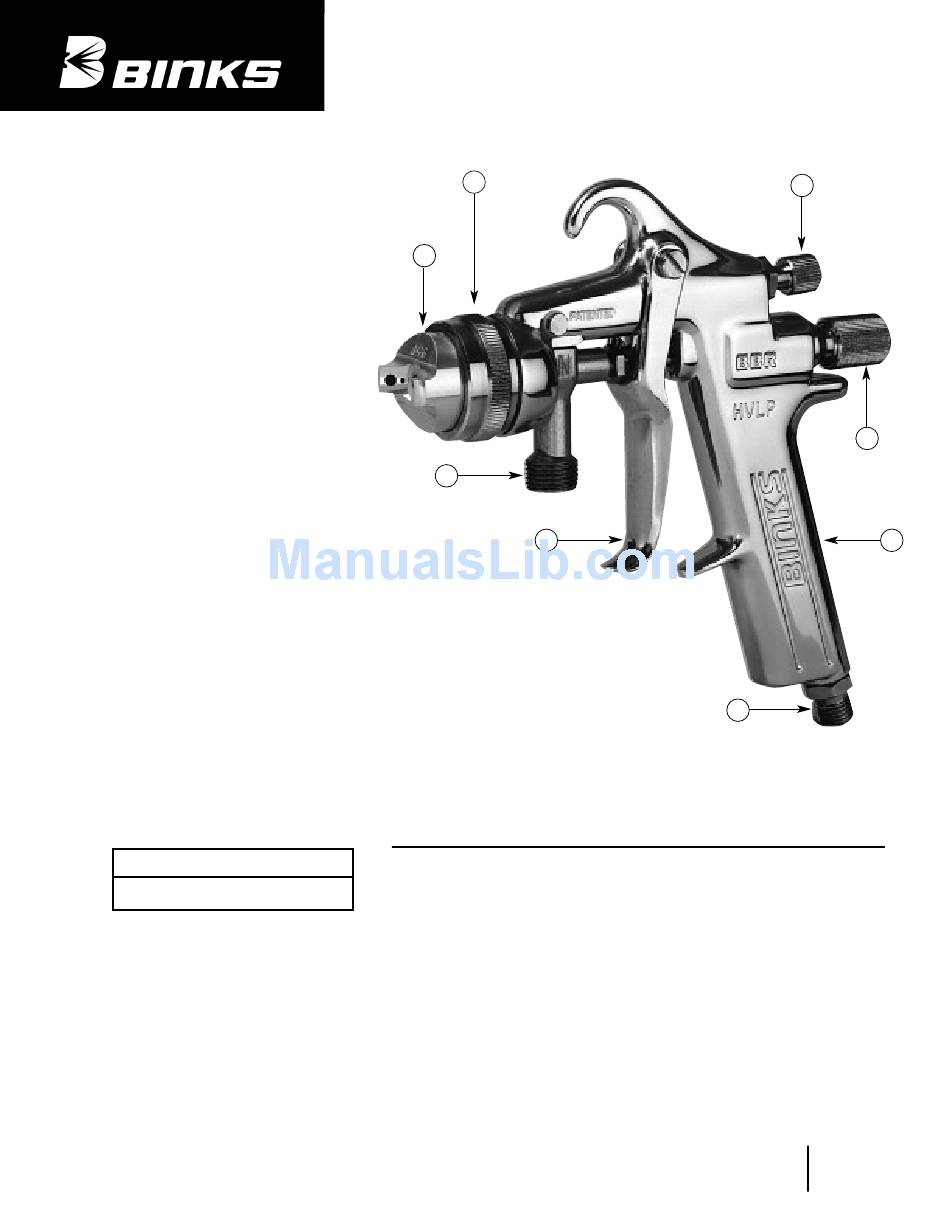

Illustration Key
1. Lightweight Air Nozzle
2. Fluid Inlet 3/8" NPS(m)
3. Extra Smooth Trigger Action
4. Stainless Steel Fluid Nozzle and Needle
5. Side Port Control
6. Fluid Control Knob
7. Forged Aluminum Body
8. Air Inlet 1/4" NPS(m)

Package Contents

Please note that your Binks MACH 1
HVLP airspray gun package was
shipped with the following contents. If
anything in the following list is miss-
ing, call 1-800-992-4657 for a prompt
shipment to you of the missing item.
5
8
1 MACH 1 Spray Gun
1 Part Sheet . . . . . . . . . . 2463
1 Gunners Mate
1 Gun Brush
Replaces
Part Sheet
2463R-8 2463R-9
6
7
Part
Sheet
