Binks SV100 Service Manual

SERVICE MANUAL

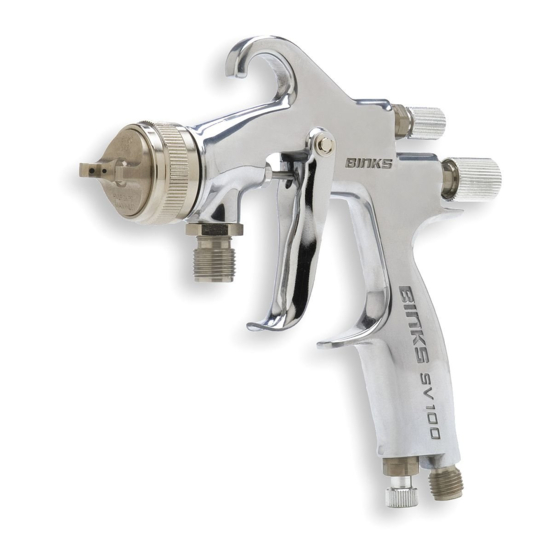

BINKS SV100™ HVLP
PRESSURE FEED SPRAY GUN
The following instructions provide the necessary information
for the proper maintenance of the Binks SV100 pressure feed
spray gun. Please read and understand all the information in this
document in order to get the maximum performance from your
new SV100 pressure spray gun.
The SV100 spray gun is the result of quality engineering and
development activity. The result is an ergonomic product with
reduced triggering effort and fine atomization. The HVLP air
cap has been specifically designed to comply with local
regulatory air quality restrictions. The specification table details
the operating parameters of the gun to achieve those compliant
conditions. In addition, the relatively low air flow rate of the
SV100 spray gun will help in containing overspray.
The SV100 spray gun should be operated under the safety
directions outlined in this literature. Your safety and the safety
of others depend on your thorough understanding of the
material contained on the Part Sheet.
If you have any questions or do not understand the content in
this literature, call your nearest service representative.
77-2874-R7.5 (6/2016)
7041-6931-1

SPECIFICATIONS

Max. Air Pressure:
For HVLP Compliance:
(with SV100-693K cap)
For HVLP Compliance:
(with SV100-690K cap)
Gun Body:
Fluid Path:
Fluid Nozzle:
Fluid Needle:
Fluid Inlet Size:
Air Inlet Size;
Gun Weight:
1 / 8
EN
175psi/12bar
26 psi inlet pressure delivers
10 psi air cap pressures at
12 cfm air volume
20 psi inlet pressure delivers
10 psi air cap pressures at
6.5 cfm air volume
Cast Aluminum
Stainless Steel
Stainless Steel
Stainless Steel
3/8" NPS(M)
1/4" NPS(M)
1.12 lbs. (507 g)
