The Binks M1-G HVLP Gravity Feed
Gun is a high quality sprayer that
produces fine finish for compliant and
non-compliant areas. A superbly bal-
anced forged aluminum body provides
you with extra comfort and control.
All components are machined and
finished to exacting tolerances and
only the best materials are used,
ensuring years of peak efficiency.
Simple to operate, the M1-G HVLP
provides exceptional finishes with
complex coatings such as primers,
base coats, clear coats, single stage
and waterborne compliant materials.
Additionally, specially designed air
and fluid nozzles enable the M1-G
HVLP to operate at more than 65%
transfer efficiency, in compliance with
air quality regulations as a high vol-
ume low pressure air spray gun.
The Binks M1-G HVLP Gravity
Feed Spray Gun includes a metal
paint cup with drip-proof cover.
To obtain optimum performance from
your new M1-G HVLP Gravity Feed
Spray Gun, read all instructions care-
fully.
NOTE
IMPORTANT REGULATORY NOTE regarding
the use of this product appears on page 9.
PACKAGE CONTENTS
Please note your Binks M1-G HVLP
Gravity Feed Spray Gun package
was shipped with the following con-
tents. If anything in the following
list is missing, call 1-800-992-4657
for a prompt shipment to you of the
missing item.
Binks Model M1-G HVLP
GRAVITY FEED SPRAY GUN
2
1

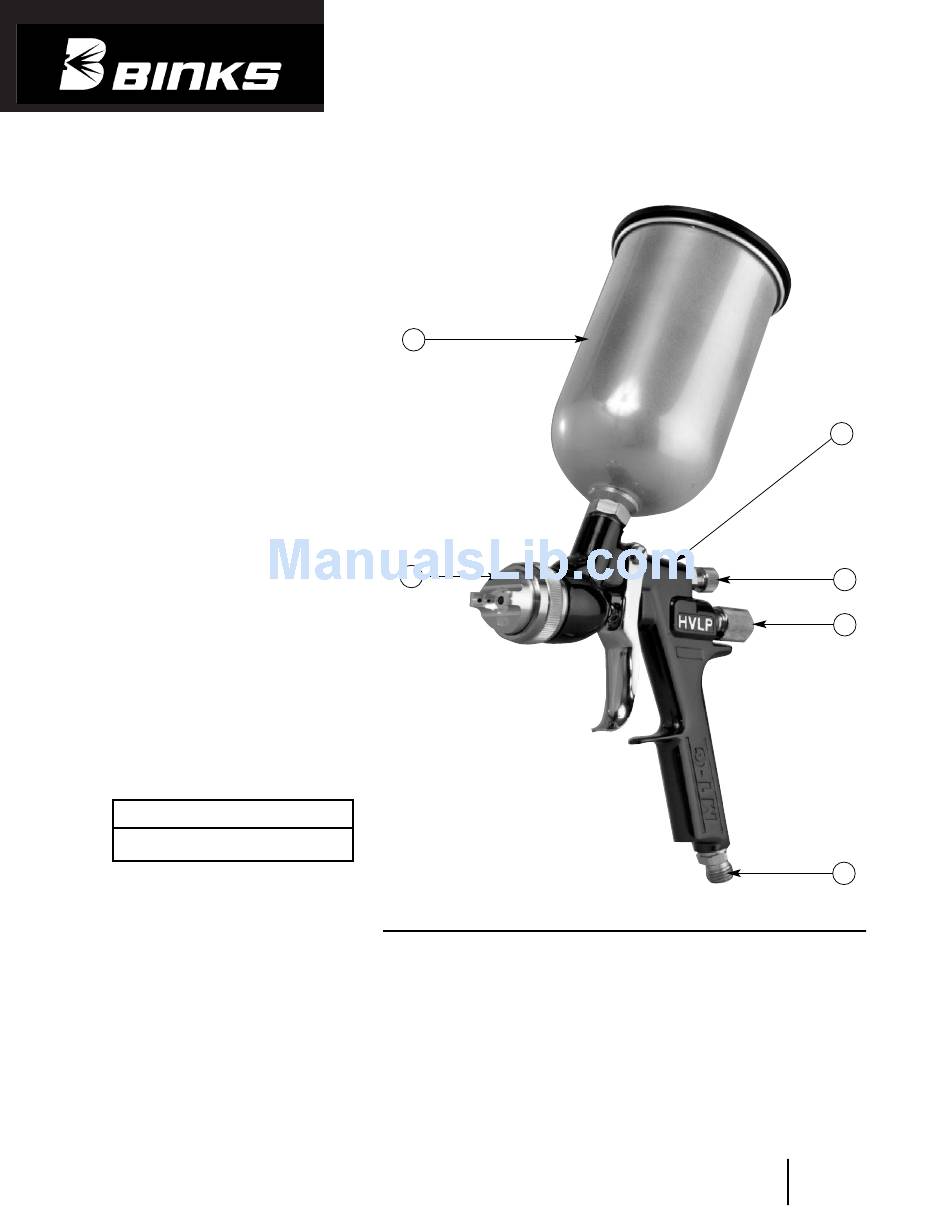

Illustration Key
1. Air Nozzle Assembly
2. Gravity Feed Cup
3. Gun Body
4. Side Port Control
5. Fluid Control Knob
6. Air Connection 1/4" NPS(m)
PART
NO.
DESCRIPTION
M1-G HVLP GRAVITY FEED SPRAY GUN ........ 1
77-2650
M1-G PART SHEET............................................ 1
54-4720
1 LITER GRAVITY FEED CUP ASSEMBLY.......... 1
SBBI-4-043 1 LITER CUP ASSEMBLY PART SHEET .............. 1
54-3871
GUNNERS MATE .............................................. 1
82-469
GUN BRUSH (ROUND)...................................... 1
192219
PLASTIC COATED GUN HOOK ........................ 1
82-221
CLEANING BRUSH (FLAT) ................................ 1
3
4
5
6
QTY.
Replaces
Part
Part Sheet
Sheet
77-2650R-6
77-2650R-7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1-G HVLP and is the answer not in the manual?

Questions and answers

Summary of Contents for Binks M1-G HVLP

  • Page 1 6. Air Connection 1/4" NPS(m) PART PACKAGE CONTENTS DESCRIPTION QTY. Please note your Binks M1-G HVLP M1-G HVLP GRAVITY FEED SPRAY GUN ..1 77-2650 M1-G PART SHEET..........1 Gravity Feed Spray Gun package 54-4720 1 LITER GRAVITY FEED CUP ASSEMBLY..1 was shipped with the following con- SBBI-4-043 1 LITER CUP ASSEMBLY PART SHEET ....
  • Page 2 FOR FURTHER SAFETY INFORMATION Inspect the equipment for worn or broken parts on a daily basis. Do not operate the equipment REGARDING BINKS AND DEVILBISS EQUIPMENT, if you are uncertain about its condition. SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300).
  • Page 3: Troubleshooting

    Additionally, open containers for storage or disposal In order to comply with these new air quality laws Binks of solvent or solvent-containing cloth or paper used for recommends one of the following two methods to clean surface preparation and clean-up may not be used.
  • Page 4: Maintenance

    MAINTENANCE TO REPLACE AIR VALVE AND SPINDLE ASSEMBLY TO REPLACE CARTRIDGE ASSEMBLY Remove material control knob (19), spring (16) and Remove material valve control knob (19), spring (16) and fluid needle (18). Unscrew housing (17) and remove spin- remove fluid needle (18). Pull back trigger (21) and dle assembly (15) with springs (14 &...
  • Page 5: Air Nozzles

    AIR NOZZLES LVLP AIR NOZZLE 93P AIR PRESSURE RECOMMENDATIONS NOZZLE NOZZLE REGULATOR ATOMIZING ATOMIZING GUN INLET PRESSURE ATOMIZING AIR FLOW (SCFM) PRESSURE (PSI) PRESSURE (PSI) (PSI) TYPE OF MATERIAL 10.0 Light Stains, Inks 11.5 14.0 Primer/surfaces 14.5 18.0 17.0 22.5 Acrylic Enamels 10.0 10.0...
  • Page 7: Parts List

    PARTS LIST (When ordering, please specify PART NO.) ITEM PART DESCRIPTION QTY. 54-3531 RETAINING RING ............1 ★ AIR CAP ..............1 ★ FLUID NOZZLE ............1 54-4368 HEAD INSERT .............. 1 54-4369-5▲❍ HEAD INSERT SEAL RING .......... 1 54-4361▼ M1-G HANDLE ASSEMBLY 54-4359 TRIGGER STUD............
  • Page 8: Spray Technique

    GENERAL SPRAY INSTRUCTIONS To reduce overspray and obtain maximum efficiency, sures should not exceed 10 psi. See table on page 5, dia- always spray with the lowest possible fluid/air pressure gram on this page and Regulatory Note on page 9. that produces an acceptable spray pattern.
  • Page 9 IMPORTANT REGULATORY NOTE Some Regulatory Agencies prohibit the operation of HVLP spray guns above 10 psi nozzle atomizing pressure. Users subject to this type of regulation should not exceed the gun inlet pressure indicated on the air cap. See General Spray Instructions and Air Pressure Recommendations, page 8. It is recom- mended that the nozzle test gauge (see below) be used to confirm actual nozzle operating pressure.
  • Page 10 NOTES...
  • Page 11 NOTES...
  • Page 12 WARRANTY This product is covered by Binks’ 1 Year Limited Warranty. Binks Worldwide Sales and Service Listing: www.binks.com Industrial Finishing Binks has authorized distributors throughout the world. For technical assistance or the distributor nearest you, see listing below. U.S./Canada Technical Service Office: 77-2650R-7 Revisions: (P1) Deleted reference air nozzle availability;...
