3950 NW 120

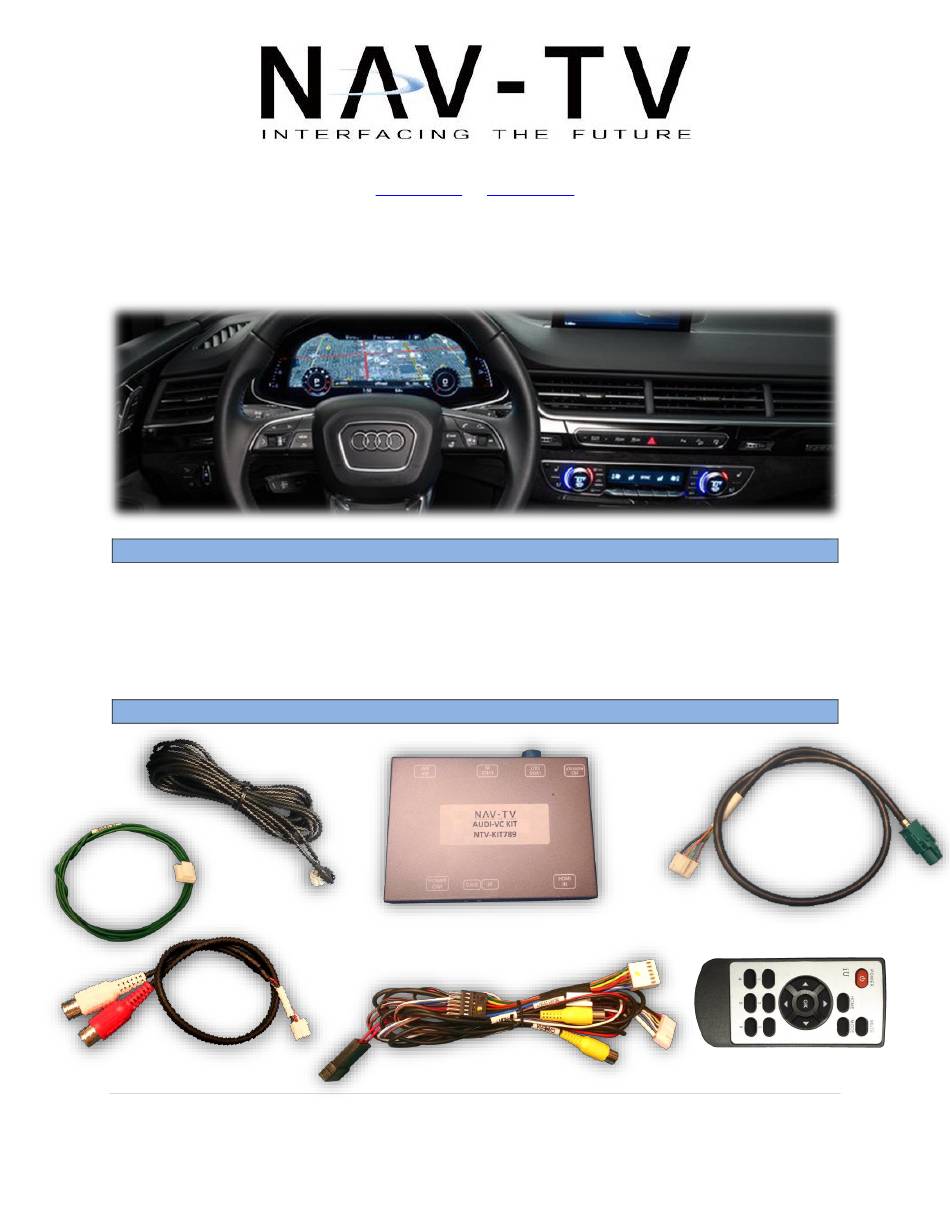

The AUDI-VC Kit interfaces a backup camera input (with active parking lines), 1 additional
composite video input and an HDMI source into the Virtual Cockpit cluster screen equipped in
select 2017 Audi A4, Q7, TT or R8 vehicles. Installation is performed behind the MMI module
(inside glove box).
Video
Trigger
Infrared Receiver
Audio Output Cable
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
AUDI-VC
NTV-KIT789
Overview

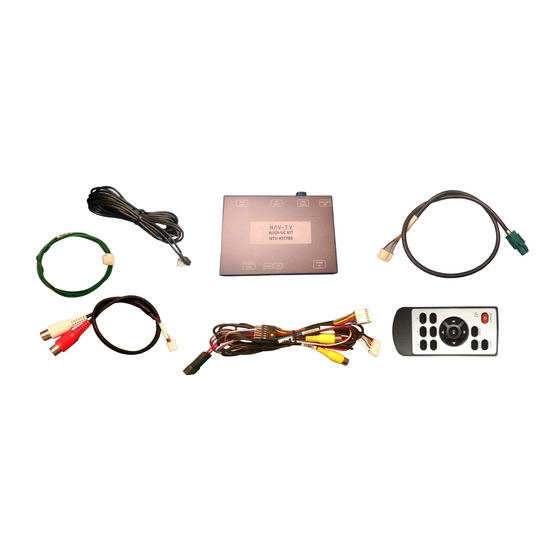

Kit Contents
AUDI-VC Interface
Power/CAN Harness
BHM
12/12/16
NTV-DOC276
A-Type
LVDS
Video
Cable
OSD Menu Remote
1 |
P a g e
Advertisement
Related Manuals for Nav TV AUDI-VC
Summary of Contents for Nav TV AUDI-VC
- Page 1 NTV-KIT789 Overview The AUDI-VC Kit interfaces a backup camera input (with active parking lines), 1 additional composite video input and an HDMI source into the Virtual Cockpit cluster screen equipped in select 2017 Audi A4, Q7, TT or R8 vehicles. Installation is performed behind the MMI module (inside glove box).
- Page 2 12/12/16 NTV-DOC276 Interface Connectors HDMI Audio OUT Dip Switches Video OUT (to cluster LCD) Video IN (from radio) IR Receiver Power/CAN Harness HDMI Input Video Trigger (optional) Dip Switch Settings Dip SW: 4 (trans) No HDMI A4 / Q7 See below AUTOMATIC Leave UP Leave Down...
- Page 3 1. Remove the MMI module located in glove box – this will require an 8mm socket and possibly a right-angle driver. Disconnect any associated harnesses and set the radio aside. 2. Grab the provided ‘Power/CAN Harness’ from the AUDI-VC kit. Connect the following wires to the car: Interface wires Connect to car Location...
- Page 4 12/12/16 NTV-DOC276 6. Connect the provided 12-pin plug & play portion from the main power harness to the main factory MMI connector as shown below. Pay attention to the orientation, as this is vital to proper operation: Remove gray OEM 12-pin Connect OEM 12-pin to provided 12-pin (black, PIN-side).
- Page 5 8. Connect the video feed from the camera to the RCA among the main power harness labeled ‘CAMERA’. 9. Connect the white plug from the Power/CAN Harness to the port on the AUDI-VC interface labeled ‘POWER CAN’. 10. Connect the HDMI Cable (not provided) from the HDMI source to the HDMI-IN port on the AUDI-VC.
- Page 6 12/12/16 NTV-DOC276 AUDI-VC Operation If a rear camera was installed, placing the vehicle in reverse will show the connected camera’s image, with dynamic guidelines for convenience. In order to use HDMI on the cluster, you must begin in Navigation mode on the cluster.
- Page 7 12/12/16 NTV-DOC276 AUDI-VC Install Diagram Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 8 12/12/16 NTV-DOC276 Menu Adjustments Before you start: The IR-Eye must be connected Make sure the car’s ignition is on and radio is on You must be in Reverse Camera mode AUX Video mode (see below): Return (AUX VID Reverse Camera Mode adjusts Reverse Camera Settings ...
- Page 9 12/12/16 NTV-DOC276 AUDI-P60H OSD Menu Options continued BT-CALL: How a (OEM setup) Bluetooth phone call is handled while in AV/HDMI mode: o ON - When in AV/NAV mode, the unit will transition to the OEM screen when a Bluetooth phone call is active, then return when call is ended. o OFF - There is no screen transition when a BT call is active.
