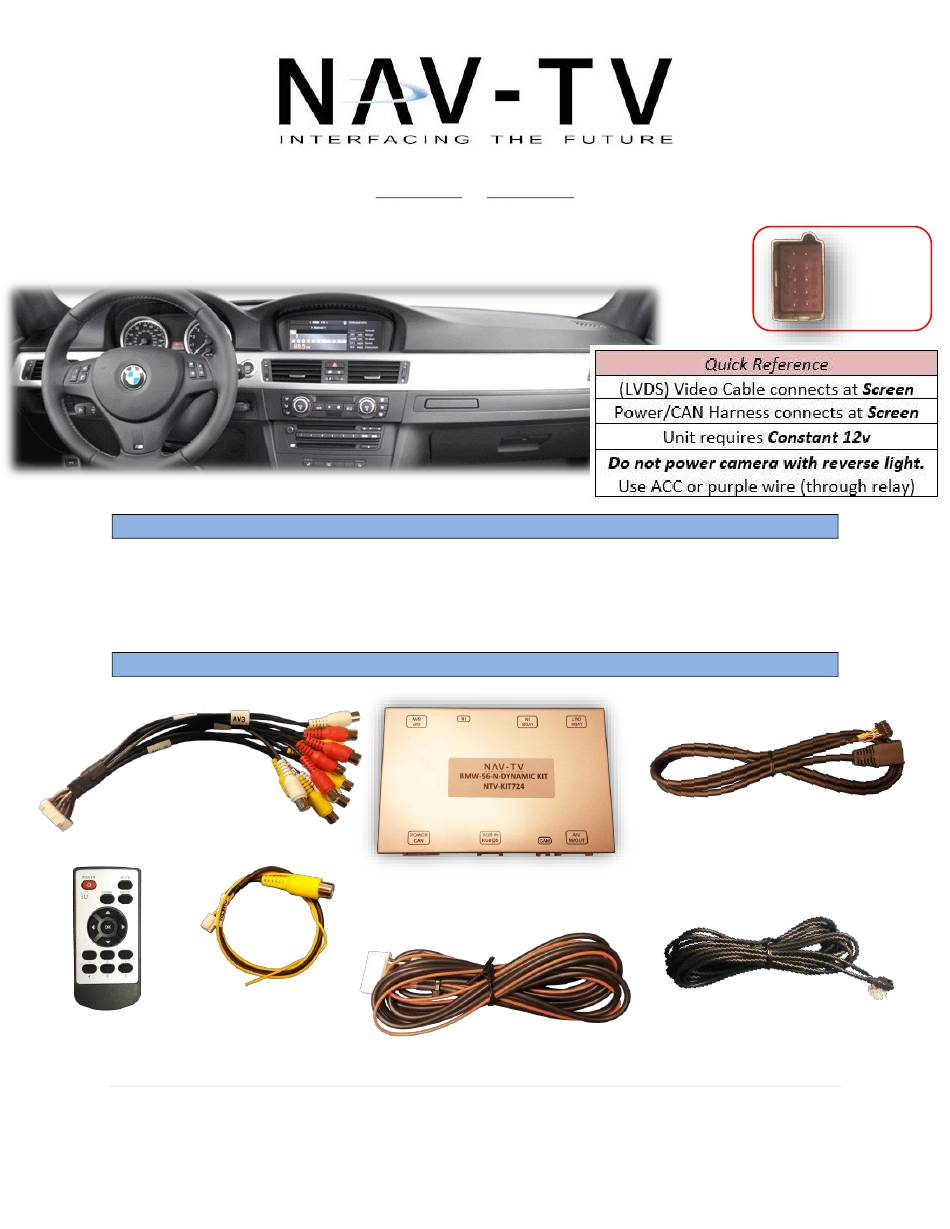

The BMW56-N kit interfaces 2 video inputs (including a backup camera) to the factory media
screen in select '04-'08 BMWs. This kit connects behind the screen and is not plug & play at this
time.
AUX Video
input cable
Camera Cable
Remote
(menu control)
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th
3950 NW 120
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
BMW56-N DYNAMIC KIT
NTV-KIT724
BMW56-N Interface
Rear
Power/CAN Harness
info@nav-tv.com
Overview

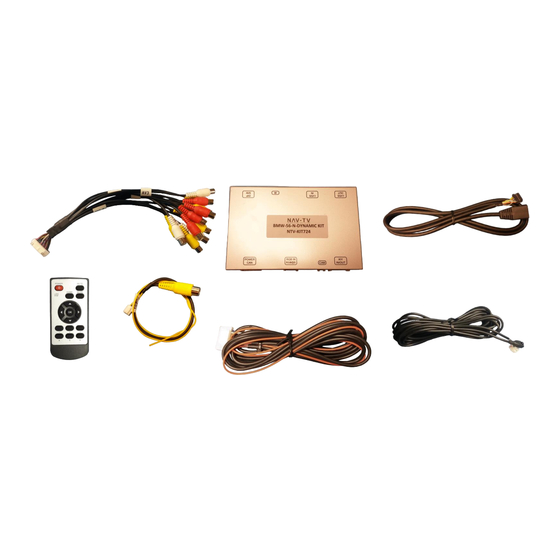

Kit Content
NTV-INT245
BHM
10/17/18
NTV-DOC253
Screen
Connector
LVDS Video cable
IR receiver cable
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Nav TV NTV-KIT724
Summary of Contents for Nav TV NTV-KIT724
- Page 1 BMW56-N DYNAMIC KIT Screen NTV-KIT724 Connector Overview The BMW56-N kit interfaces 2 video inputs (including a backup camera) to the factory media screen in select ’04-’08 BMWs. This kit connects behind the screen and is not plug & play at this time.
- Page 2 10/17/18 NTV-DOC253 Interface Connectors Power/CAN RGB INPUT Rear Camera signal AV IN/OUT Input & REV 12v + OUOUT OUOUT OUOUT IR Receiver LCD IN (LVDS Cable LCD OUT (Provided Switches from OEM screen) LVDS Cable) NOT USED Dip Switch Settings* Dip SW: KEEP SKIPS...
- Page 3 10/17/18 NTV-DOC253 BMW56-N Installation 1. The BMW56-N connects entirely behind the OEM infotainment screen. You must gain access behind the screen for proper connection. a. Remove any dash panels secured to the sub-dash to access the Torx screws which secure the screen. Remove the screen and set aside. 2.
- Page 4 10/17/18 NTV-DOC253 BMW56-N Install Diagram *RCA signal integration for video only. Audio input is only pass through if supplied and switching follows video switch. Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product.
- Page 5 10/17/18 NTV-DOC253 Green Trigger wire setup This module includes a green input wire for analog triggering of either the Reverse camera input or the ‘AVIN’ input (yellow RCAs), selectable through the AV menu. This allows for adding multiple cameras through the use of an SVS-6 switcher, etc. Follow the steps below adjust this feature.
- Page 6 10/17/18 NTV-DOC253 BMW56-N Operation • Once all connections are made and dip switches are set properly, placing the vehicle in reverse will display the connected camera with dynamic guidelines for convenience. • Additionally, see below for AUX/Front camera activation using factory buttons. Steering wheel Hold (3 sec): Adjust PIP on Reverse Cam image or AUX Video image...
