- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating and Installation Instructions Display Unit KERN KXE-TM Version 1.0 06/2011 KXE-TM-BA_IA-e-1011...
-
Page 2: Table Of Contents
KERN KXE-TM Version 1.0 06/2011 Operating and installation instructions Display device Contents Technical data ....................4 Appliance overview ................... 6 Keyboard overview .......................7 2.1.1 Numerical input via the navigation buttons................ 8 Function keys .......................8 Overview of display ......................9 Basic Information (General) ................10 Proper use ........................10... - Page 3 Configure / Menu item ................36 14.2 Adjust / Menu item ..................39 14.3 Enter password / Menu item ..............41 14.3.1 Deposit password......................41 14.3.2 Password input for access to menu ................42 14.4 Change appliance settings / menu item ..........43 KXE-TM-BA_IA-e-1110...
-
Page 4: Technical Data
1 Technical data KERN KXE-TM Display 6-digit Single (Max.) 10.000 e Solution verifiable Dual (Max.) 5.000 e Verification class Weighing ranges max 2 Weighing Units kg, t Divisions 1,2,5,…10, n Display LCD 25 mm digits with back lighting Min. 87 Ω. - Page 5 Dimensions: 1. With wall support 2. Without wall support KXE-TM-BA_IA-e-1110...
-
Page 6: Appliance Overview

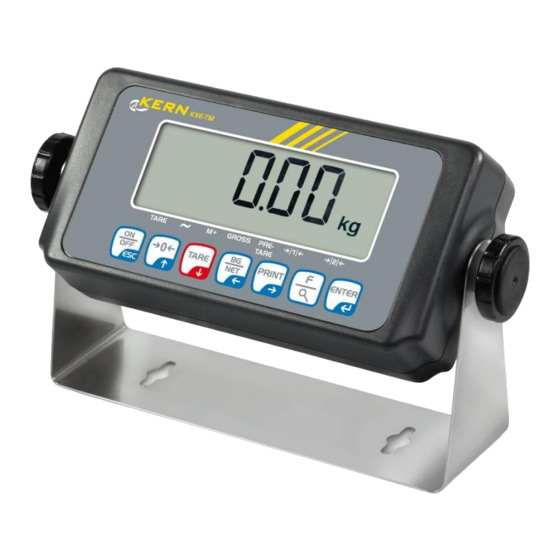

2 Appliance overview 1. Weight display 2. Battery compartment 3. RS-232 (disabled) 4. Connection power supply (mains adapter) 5. Adjustment switch 6. Connection platform 7. Fastening screws 8. Wall bracket KXE-TM-BA_IA-e-1110... -
Page 7: Keyboard Overview
• Quit • Back to menu / weighing mode • Zeroing • Taring • Change between gross and net weight • Functional button (allocation see chap. 9.1 FNC-02) • Functional button (allocation see chap. 9.1 FNC-03) • Confirm/store input KXE-TM-BA_IA-e-1110... -
Page 8: Numerical Input Via The Navigation Buttons
2.2 Function keys The following functions can be allocated to the buttons menu (see chap. 9): FNC-02 ∼ FNC04 Printing Switch-over weighing unit M+ (adding up / printing) MC (delete sum memory) Display change HR (conversion into higher resolution) PRE-TARE KXE-TM-BA_IA-e-1110... -
Page 9: Overview Of Display
Instable weighing value Data in summation memory GROSS that the displayed weighing value is a gross weight value that the displayed weight value is a PRE-TARE value PRE-TARE Resolution 1. weighing range Resolution 2. weighing range KXE-TM-BA_IA-e-1110... -
Page 10: Basic Information (General)
The display unit may only be operated in accordance with the described default settings. Other areas of use must be released by KERN in writing. 3.3 Warranty Warranty claims shall be voided in case •... -
Page 11: Monitoring Of Test Resources
In KERN’s accredited DKD calibration laboratory test weights and display units may be calibrated (return to the national standard) fast and at moderate cost. -
Page 12: Unpacking And Placing
Mount the display unit in a way that facilitates operation and where it is easy to see. 6.3 Scope of delivery / serial accessories: • For display unit, see chapter 2 • Mains adapter • Plug for connecting platform • Operating instructions KXE-TM-BA_IA-e-1110... -
Page 13: Transport Securing
6.5 Mains connection Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN. 6.6 Battery operation On the rear side of the display unit remove the battery cover and insert 5 x 1.5 V, AA batteries. -
Page 14: Adjustment
The seal marks attached on verified appliances point out that the appliance may only be opened and serviced by trained and authorised specialist staff. If the seal mark is destroyed, verification looses its validity. Please observe all national laws and legal regulations. In Germany a re-verification will be necessary. KXE-TM-BA_IA-e-1110... -
Page 15: Kxe-Tm-Ba_Ia-E
Position of seals and adjusting switch KXE-TM-BA_IA-e-1110... -
Page 16: Basic Operation
Resetting to zero corrects the influence of light soiling on the weighing plate. To unload the weighing system Press and zero display as well as indicator will appear. 7.4 Simple weighing Place goods to be weighed on balance. Wait until the indicator over the stability display disappears. Read weighing result. KXE-TM-BA_IA-e-1110... -
Page 17: Switch-Over Weighing Unit
The taring process can be repeated any number of times, e.g. when adding several components for a mixture (adding). The limit is reached when the whole weighing range is exhausted. To change between gross weight and net weight, press To delete the tare value, remove load from weighing plate and press KXE-TM-BA_IA-e-1110... -
Page 18: Pre-Tare Deduction (Pre-Tare)
The entered weight will be stored as tare weight and displayed with negative sign. The indicator over PRE-TARE will appear. Put the filled weighing container on the balance, the net weight will be displayed. The tare value remains stored until it will be deleted by KXE-TM-BA_IA-e-1110... -
Page 19: Totalization
FNC-02 „4“ Number weighing processes Total Weighing mode M+: Totalization FNC-03 „2“ (commutation add-up mode weighing mode) FNC-04 „3“ MC Delete total added memory Of course you may also adapt the allocation to your individual needs. (see chapter. 9) KXE-TM-BA_IA-e-1110... - Page 20 Display / switch over weighing data: Press repeatedly to switch to a different display. Number of weighings Indicator „P “ will be displayed. Total sum Indicator over will be displayed Currently placed weight / add-up mode Indicator over M+ is displayed KXE-TM-BA_IA-e-1110...
- Page 21 Delete total added memory: With display „Number of weighings“ or „Total weight“ press at the same time. The data in the summation memory are deleted. Weighing mode Indicator over M+ disappears KXE-TM-BA_IA-e-1110...
-
Page 22: Function Menu
9 Function menu Call up menu: In weighing mode press at the same time, the functional menu „01 FnC“ is displayed. Switch over between (not documented) using KXE-TM-BA_IA-e-1110... - Page 23 Confirm selected function by , the current setting is displayed. Switch into the available settings using Confirm selection by , the next function is displayed. To exit the menu / return into weighing mode press repeatedly. Numerical input, see chap. 2.1.1. KXE-TM-BA_IA-e-1110...
-
Page 24: Overview
5 times / s 1 times / s FNC-02 Allocation Print Functional button Switch-over weighing unit M+ (adding up / printing) MC (delete sum memory) Display switch-over in add-up mode Number weighing processes Total Weighing mode HR (conversion into higher resolution) PRE-TARE KXE-TM-BA_IA-e-1110... - Page 25 Display switch-over in add-up mode Number weighing processes Total Weighing mode HR (conversion into higher resolution) PRE-TARE Automatic background illumination on FNC-05 Display background when weighing pate is loaded or key illumination pressed. Continuous background lighting Background illumination off KXE-TM-BA_IA-e-1110...
- Page 26 Mode 2, see chap. 11.3 The display unit is automatically FNC-08 Auto-power Off switched off within the preset time 1 – 60 min when the display unit or the weighing (Automatic power bridge are not operated. Factory switch-off) setting „0“ FNC-09 Not documented KXE-TM-BA_IA-e-1110...
-
Page 27: Description Of Individual Functions
Reset all parameters to allowed settings for verified weighing systems : to switch on the unit. During the selftest actuate the adjustment switch and press at the same time. „IntALL“ is displayed. Press and keep it pressed until „End“ appears. Back to weighing mode, actuate adjustment switch. KXE-TM-BA_IA-e-1110... -
Page 28: Display Higher Resolution
The following setting must be allocated to a functional button (see chap. 9.). Functional Setting button FNC-02 „5“ FNC-03 „5“ FNC-04 „5“ When pressing the functional button, the weight value is displayed approx. 5 seconds in a 10 times higher resolution. KXE-TM-BA_IA-e-1110... -
Page 29: Peak Value Function
Display Mode 2: Menu setting FNC-07 „2“ From a weighing value of >10 d the highest load value will be displayed. If the weight value is less than 10d, the displayed peak value will be automatically deleted. Display KXE-TM-BA_IA-e-1110... -
Page 30: Service, Maintenance, Disposal
Do not use metal brushes or cleaning sponges of steel wool, as this causes superficial corrosion. 11.2 Service, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Ensure that the balance is regularly calibrated, see chap. Testing instruments control. 11.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 31: Error Messages
Internal solution ≤ 0.15 μV/d range Err 6 Err . Wrong password Internal value < zero range Internal value > zero range Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer. KXE-TM-BA_IA-e-1110... -
Page 32: Instant Help
• The display of the balance is not at zero obviously incorrect • Adjustment is no longer correct. • Great fluctuations in temperature. • Warm-up time was ignored. • Electromagnetic fields / static charging (choose different location/switch off interfering device if possible) KXE-TM-BA_IA-e-1110... -
Page 33: Installation Display Unit / Platform
4 % of the scale’s capacity. The addition of weighing scales capacity, preload and the total zero setting range give the required capacity for the weighing cell. To avoid overloading of the weighing cell, include an additional safety margin. • Smallest desired display division KXE-TM-BA_IA-e-1110... -
Page 34: How To Connect The Platform
Pin 2 SEN- Pin 4, 5 EXC+ Pin 3 EXC- Pin 6, 7, 8 Screen Pin 4 SEN+ Pin 9 SIG- Pin 5 EXC+ Pin 6, 7, 8 Screen Pin 9 SIG- Connect the plug to the display unit. KXE-TM-BA_IA-e-1110... -
Page 35: Technician Menu
Actuate adjustment switch, „SET“ followed by „01 CSP“ is displayed. to switch over between the following menu items: • Configure • Adjustment • Enter password • Change settings of the unit To exit the menu / back to weighing mode, actuate adjustment switch. KXE-TM-BA_IA-e-1110... -
Page 36: Configure / Menu Item
Confirm selected function such as „CSP-04“ with , the current setting is displayed. Switch into the available settings using Confirm selection by , the next function is displayed. To exit the menu / back to weighing mode, actuate adjustment switch. Numerical input, see chap. 2.1.1. KXE-TM-BA_IA-e-1110... - Page 37 Readability [d] / factory settings depend on the verification value [e] connected weighing bridge. 1. weighing range CSP-03 Readability [d] / The possible resolutions and factory settings depend on the verification value [e] connected weighing bridge. 2. weighing range KXE-TM-BA_IA-e-1110...
- Page 38 0.75 d / 1 s 1 d / 1 s 1.25 d 1.25 d / 2 s 1.5 d 1.5 d / 2 s 1.75 d 1.75 d / 2 s 2 d / 2 s Deactivated Adjust weighing system according to configuration. KXE-TM-BA_IA-e-1110...
-
Page 39: Adjust / Menu Item
The weight to be used depends on the capacity of the scale. Carry out adjustment as near as possible to the scale’s maximum weight. Info about test weights can be found on the Internet at: http://www.kern-sohn.com. • Observe stable environmental conditions. Stabilisation requires a certain warm-up time. - Page 40 Place the indicated adjustment weight and wait for stability. Acknowledge with After approx. 5 seconds the adjustment is completed. • Cancel the adjustment with , the appliance returns into the menu. • Back to weighing mode, actuate adjustment switch. KXE-TM-BA_IA-e-1110...
-
Page 41: Enter Password / Menu Item
2.1.1) and confirm by The request to repeat the password input is displayed, the active digit flashes. Enter password anew and confirm with The appliance returns to the menu To exit the menu / back to weighing mode, actuate adjustment switch. KXE-TM-BA_IA-e-1110... -
Page 42: Password Input For Access To Menu
2.1.1) and confirm by If the password is entered correctly, settings in the menu may be carried out. If a wrong password is entered, „Err“ is displayed. Password forgotten? Reset the display unit to factory setting „0000“ (no password), see chap. 11.1. KXE-TM-BA_IA-e-1110... -
Page 43: Change Appliance Settings / Menu Item
Confirm selected function e.g. „CFn-05“ with , the current setting is displayed. Switch into the available settings using Confirm selection by , the next function is displayed. To exit the menu / back to weighing mode, actuate adjustment switch. Numerical input, see chap. 2.1.1. KXE-TM-BA_IA-e-1110... - Page 44 (factory setting 6) slow Calm and stable environment The CFN-04 Adaptation to appliance works fast but is environmental sensitive to outside influences. conditions (factory setting 2) Busy environment. The appliance works slower, but is insensitive to outside influences. KXE-TM-BA_IA-e-1110...
- Page 45 Not documented Not documented CFN-06 Not documented Always use this setting CFN-07 Not documented CFN-08 Balance Type Multi-interval balance Multi-range balance CFN-09 Setting multi-range balance Jump point 0 - 999999 (factory setting 5000) CFN-10 Geo value Not documented KXE-TM-BA_IA-e-1110...
