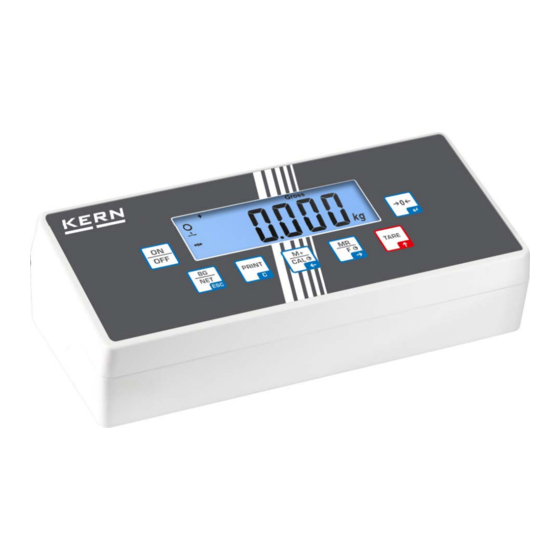

KERN KIB-TM Manual

KERN KIB-TM Manual

Additional description interfaces
Hide thumbs Also See for KIB-TM:

Advertisement

Quick Links

Additional description interfaces
KERN KIB-TM
Version 1.4
2023-01
GB
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
KIB-TM-ZB-e-2314

Advertisement

loading
Need help?

Need help?

Do you have a question about the KIB-TM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KERN KIB-TM

  • Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Additional description interfaces KERN KIB-TM Version 1.4 2023-01 KIB-TM-ZB-e-2314...
  • Page 2 Additional description interfaces Contents RS 232 (standard) ............ 3 Technical data ............... 3 Printer operation / sample logs (KERN YKB-01N) ......... 4 Output log (continuous output) ............6 KERN Communications Protocol (KERN Interface Protocol) ........ 6 USB interface (KIB-A03) (optional) ........8 Ethernet (optional) ..........
  • Page 3 • Use a suitable cable to connect the display unit to the interface of the printer. Faultless operation requires an adequate KERN interface cable. • Communication parameters (baud rate, bits and parity) of display unit and printer must match.
  • Page 4 1.2 Printer operation / sample logs (KERN YKB-01N) • Weighing 1. Continuous data output (menu setting P2 Com  Mode  Com  S0 on) Menu setting P2 Com  LAb 0 / Prt 0: **************************** **************************** ST, GS 53.2 kg US, GS 53.2 kg...
  • Page 5 P2 Com LAb 3 / Prt 4~7: P2 Com LAb 0/Prt 0: Symbols: Stable value Instable value GS / GW Gross weight Net weight Tare weight Number weighing processes TOTAL Total of all individual weighings <lf> Space line <lf> Space line KIB-TM-ZB-e-2314...
  • Page 6 • Menu setting P2 Com  PTYPE  tPUP or LP50 1.4 KERN Communications Protocol (KERN Interface Protocol) KCP (KERN communication protocol) contains the commands that are used to control the KERN balances via the interface. • Menu setting P2 Com  Mode  ASK •...
  • Page 7 Send weight value on weight change (send and repeat) Tare Query/preset tare weight value Clear tare value Tare immediately Polling-Interval • The time between the cyclic inquiries or when sending commands (Polling) via the interfaces must be longer than 100 ms. KIB-TM-ZB-e-2314...
  • Page 8 Several programs are available for data transmission on the balance to a PC. The description below refers to "Kern Balance Connection". • A 10-day free trial of the KERN Balance Connection test version is available for download under www.kern-sohn.com/Downloads/Software. How to install a USB driver (In menu "Downloads/Operating Instructions, Single Brochures, Conformity...
  • Page 9 Open expert mode: Click on OK KIB-TM-ZB-e-2314...
  • Page 10 Right-click on COM 6→Open Console→ and data will be transferred • Now you can set all the other output methods in Balance Connection. • If data transmission is not happening, check the settings described above and re- enter as required. KIB-TM-ZB-e-2314...
  • Page 11 Menu item "P9 Prt"  "oPt"  "ModE"  " Count" (Output mode continuous data output)  Menu item "P9Prt"  "oPt"  "iP1-4" Set IP address KIB-TM as follows: Enter IP address not yet allocated in network: Example: 10.0.1.104...
  • Page 12 As the IP address is saved to the KIB-TM we recommend using a static IP address of the computer. Now enter the IP address for the PC on the display unit:  Menu item "P9Prt"  "oPt""riP_1-4" (IP address PC) ...
  • Page 13 The entry prompt will appear  Enter "ipconfig" and press Enter to confirm  The PC‘s IP address will appear on the screen) As the IP address is saved to the KIB-TM we recommend using a static IP address of the computer. KIB-TM-ZB-e-2314...
  • Page 14 • If data transmission is not happening, check the settings described above and re- enter as required. • Restart of KIB-TM is required after making changes to WLAN settings. • After the restart it may take up to 20 sec until the WLAN module is displayed.
  • Page 15 Bluetooth (Option) Wireless data transmission over a short distance between devices is possible with the help of Bluetooth. Establish connection between KIB-TM and computer/mobile phone. To that end enter the following: • Password: 0000 (alternatively 1234) • Name: HC-06 The menu items shown below must be set in KIB-TM ...
  • Page 16 KERN offers the alibi-memory option KIB-A13 - This means a factory option, installed and preconfigured by Messrs. KERN, when a product with this optional function is acquired. - The alibi-memory offers the possibility to store up to 250.000 weighing results. When the memory is full, the already used IDs are overwritten (starting with the first ID).
  • Page 17 Using the following data can be selected one after the other: o Number of measurement o Date of measurement o Time of measurement o Gross weight o Tare value o Net weight  to scroll up, to scroll down KIB-TM-ZB-e-2314...
  • Page 18 Insert USB stick in PC  Open Excel table. Now you can evaluate and, where an optional printer is connected, printout the saved data. If one of the following messages appears, confirm by „Yes“: Example of exported data in Microsoft Excel: KIB-TM-ZB-e-2314...
  • Page 19 - Time and date are reset after separation from power supply: → exchange the coin cell battery of the real time clock. - Time and date are reset after separation from power supply despite new battery: → defective real time clock, contact your service partner. KIB-TM-ZB-e-2314...
  • Page 20 • The digit righthand in the display shows the current output status: - „0“ means disabled - „1“ means enabled (test voltage is 12V) (→) to navigate to the desired output or input. Use the arrow keys (↑) to activate or deactivate the out-/or input (12 V constantly) KIB-TM-ZB-e-2314...
  • Page 21 EVDD yellow OUT 1 green OUT 2 HIGH OUT 3 black * power supply of traffic lights resumed in one cable RS 485 interface (Option) The RS 485 interface is only used for the large display KERN KIB-A07. KIB-TM-ZB-e-2314...
  • Page 22  Change settings The arrow keys can be used to change the available settings. Acknowledge setting / exit the menu  Either save by pressing or reject by Return to weighing mode  Press repeatedly to exit menu. KIB-TM-ZB-e-2314...
  • Page 23 One output for stable weighing value Continuous data output of stable weighing values • Output after pressing • Precondition for alibi memory Manual totalizing Press and the weighing value will be added to the summation memory and issued. KIB-TM-ZB-e-2314...
  • Page 24 7 bits, even parity 7 bits, odd parity 8n1* 8 bits, no parity PTYPE tPUP* Standard printer setting LP50 Not documented KERN Communication Protocol LAb x For data output format, Prt x see table below. 1 LAnG eng* Standard settings English Not documented...
  • Page 25 Test mode outputs intF USB, Select connections UdiSK, Bt, WiFi, EnEt ModE no, CoUnt (USB, Bt, Wi-Fi, EnEt) (output) no, Expt (UdiSK) iP_1 IP addresses KIB-TM iP_2 iP_3 iP_4 MASK_1 Subnet mask MASK_2 MASK_3 MASK_4 GAtE_1 KIB-TM Gateway GAtE_2...
  • Page 26 (IP address PC) P9Prt riP_2 riP_3 riP_4 rPort Remote port (Port for communication between PC and KIB-TM SSid_1 SSID SSid_2 PSW_1 WLAN password PSW_2 Factory settings are marked by *. function locked when adjustment switch in verifiable setting (adjustment switch position „LOCK“)
