Z-Wave Curtain Motor Controller SR-ZV9080A-B

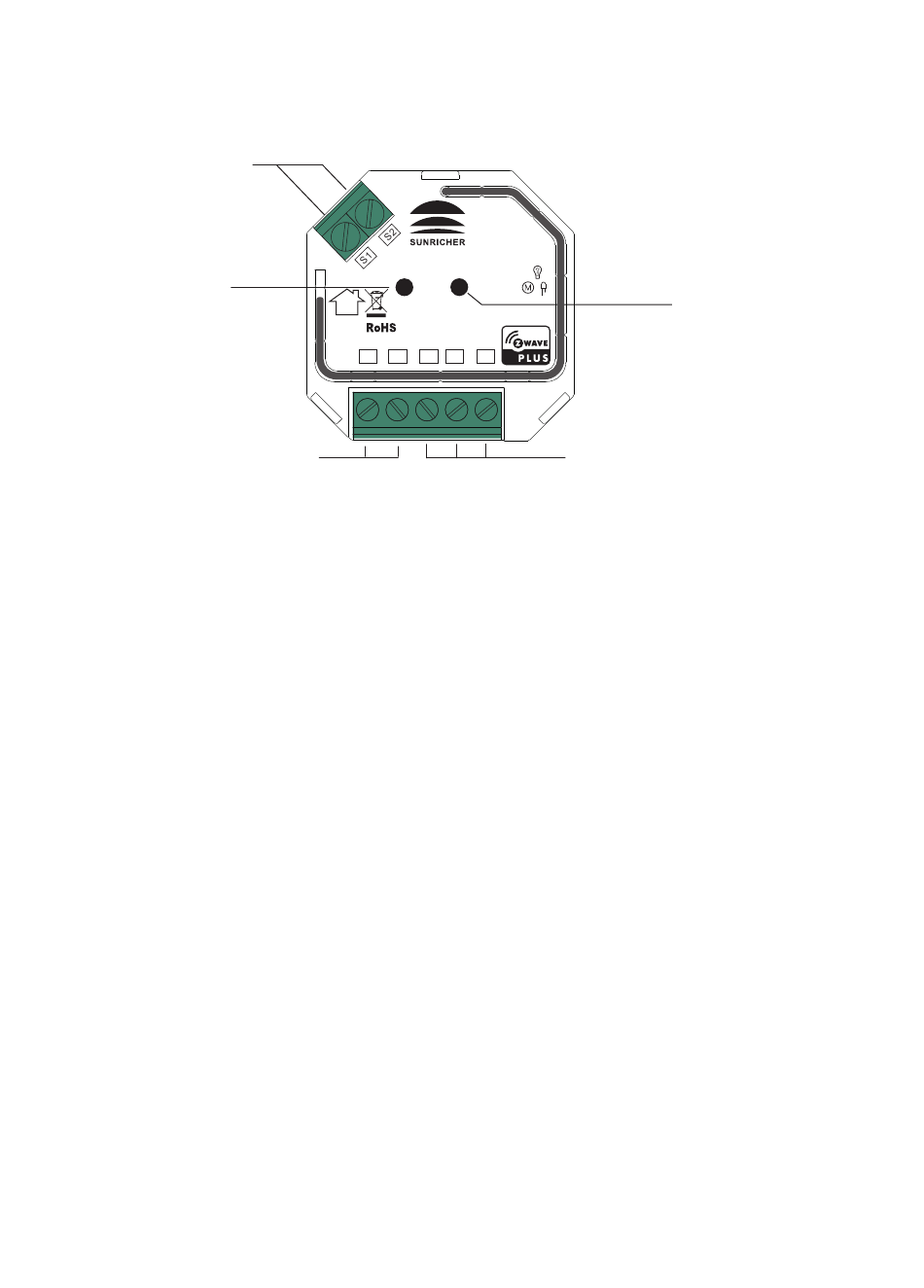

Function Introduction
Switch input
Network inclusion/
exclusion button
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Quick Start
How to install:
• Step 1: power on the Z-Wave curtain motor controller.
• Step 2: activate inclusion mode on your Z-Wave controller.
• Step 3: activate inclusion mode of the curtain motor controller by triple press the network
inclusion/exclusion button. The curtain motor controller will be included to Z-Wave network.
Product Description

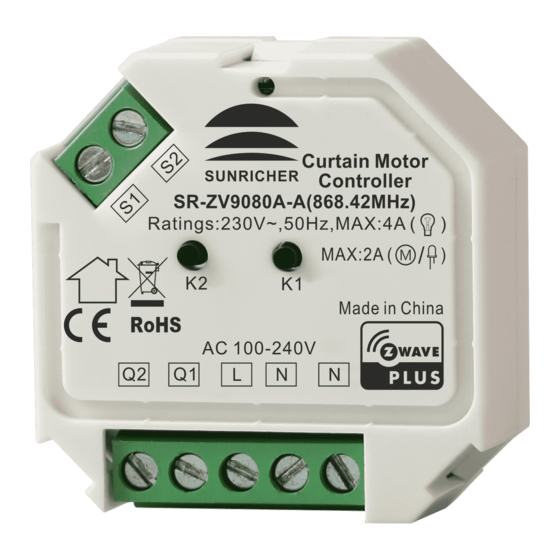

The curtain motor controller is a universal, Z-Wave Plus compatible, electric motor controller. The device
allows for controlling motors of roller blinds and venetian blinds, which are single phase AC powered. The
curtain motor controller allows for precise positioning of a roller blind or venetian blind slats. Precise
positioning is available for the motors equipped with mechanic and electronic end switches. The device
also allows for controlling on/off of lights. The module may be controlled wirelessly, through the Z-Wave
network primary controller, or through the switch keys connected to it. In addition, the curtain motor
controller is equipped with Power Metering and over current protection.
The curtain motor controller can be included and operated in any Z-Wave network with other Z-Wave
certified devices from other manufacturers and/or other applications. All non-battery operated nodes
within the network will act as repeaters regardless of vendor to increase reliability of the network.
SR-ZV9080A-B(908.42MHz)
FCC ID:XXXSR9080A
Ratings:120V~,60Hz,MAX:4A(
K2
AC 100-240V
Q2
Q1
Load output
Curtain Motor
Controller
)
/
MAX:2A (
)
K1
Made in China
L
N
N
AC power input
1
Calibration button

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR-ZV9080A-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunricher SR-ZV9080A-B

Summary of Contents for Sunricher SR-ZV9080A-B

  • Page 1 Z-Wave Curtain Motor Controller SR-ZV9080A-B Function Introduction Switch input Curtain Motor Controller SR-ZV9080A-B(908.42MHz) FCC ID:XXXSR9080A Ratings:120V~,60Hz,MAX:4A( Network inclusion/ MAX:2A ( exclusion button Calibration button Made in China AC 100-240V Load output AC power input Safety & Warnings • DO NOT install with power applied to device.

  • Page 2: Product Data

    The curtain motor controller supports OTA and can update firmware wirelessly. Main Features: • Compatible with any Z-Wave or Z-Wave+ Controller, • Controlled by Sunricher EasyHome or any other Z-Wave controller, • Advanced microprocessor control • Active element: electromagnetic, micro-gap relay switch •...
  • Page 3 mode . 6 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 2)When the value of configuration parameter 8 is set as 1, triple press the switch connected to S1, it will set the curtain motor controller into inclusion mode. 6 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation.
  • Page 4 1. Calibration through the calibration button, short press the button twice, calibration starts automatically. 2. Set the configuration parameter 6 value to 1, calibration starts automatically. Secene Control Users can configure scenes using command class SCENE_ACTUATOR_CONF_SET, and activate the scenes using command class SCENE_ACTIVATION_SET. Activate Scenes Using Switch S1 S2 Users can configure configuration parameter 9 to decide whether to send scene activation command using command class CENTRAL_SCENE_NOTIFICATION.
  • Page 5 3. Report energy meter actively. 4. When action of S1 and S2 is detected, send CENTRAL SCENE NOTIFICATION to associated devices of this group. When endpoint 1 state changes, send "SWITCH_MULTILEVEL_REPORT" to associated devices of this Group 2 REP EP1 group.
  • Page 6 Wireless Range up to 100 m outside, on average up to 40 m inside buildings 6.71.03 Explorer Frame Support Device Type Window Covering Position/Endpoint Aware Generic Device Class GENERIC_TYPE_SWITCH_MULTILEVEL Specific Device Class SPECIFIC_TYPE_CLASS_C_MOTOR_CONTROL Role Type Always On Slave (AOS) Endpoint 1 device type ： GENERIC_TYPE_SWITCH_MULTILEVEL/SPECIFIC_TYPE_CLASS_C_MOTOR_CONTROL Endpoint 2 device type: GENERIC_TYPE_SWITCH_BINARY/SPECIFIC_TYPE_POWER_SWITCH_BINARY...
  • Page 7 COMMAND_CLASS_MULTI_CHANNEL COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION COMMAND CLASS SCENE ACTIVATION COMMAND CLASS SCENE ACTUATOR CONF COMMAND CLASS CENTRAL SCENE Endpoint 1 Command List Support S2/S0 Node Info COMMAND_CLASS_ZWAVEPLUS_INFO COMMAND_CLASS_SECURITY COMMAND_CLASS_SECURITY_2 COMMAND_CLASS_SUPERVISION COMMAND_CLASS_SWITCH_BINARY COMMAND_CLASS_SWITCH_MULTILEVEL COMMAND_CLASS_ASSOCIATION COMMAND_CLASS_ASSOCIATION_GRP_INFO COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION COMMAND CLASS SCENE ACTIVATION COMMAND CLASS SCENE ACTUATOR CONF Endpoint 2 Command List Support S2/S0...
  • Page 8 Notification Report Notification Type Triggerring Event NOTIFICATION_TYPE_POWER_MA POWER_MANAGEMENT_OVERCURRENT_DETE NAGEMENT(08) CTED(06) Over Current Alarm When connecting to resistive load over current value is 4 1A When connecting to a motor or capacitive load, over current value is 2.1A. Over current relays will be closed.
  • Page 9 Only value 1 can be written in, which means starting positioning calibration. When read, 0x01: positioning calibration completed 0x00: positioning not calibrated 0x06(6) This parameter is only valid when parameter 3 configured as shutter mode with positioning or venetian mode (up/down and slats rotation). When parameter 3 value configured as 0 (light mode), configuration of button S1 and S2 control.
  • Page 10 Enable/disable to add the device to or remove it from a Z-Wave network through button S1. Please refer to the parts of inclusion and exclusion for details. 0x08(8) 0: enable 1: disable Enable/disable to send scene activation command CENTRAL_SCENE_NOTIFICATION_ V3 when the switches S1 and S2 are pressed.
  • Page 11 Slats rotation time, unit is 0.1S 0: disable the function 5-250 (0.5S-25S): value of the slats rotation time 0x0d(13) 15 (1.5S) This parameter is only valid when parameter 3 is configured as venetian mode (up/down and slats rotation). Time cycle to report the values of energy consumption, voltage, current and load power actively 0x0E(14)
  • Page 12 (1) Curtain Motor Connection Diagram Curtain Motor Controller SR-ZV9080A-B(908.42MHz) FCC ID:XXXSR9080A Ratings:120V~,60Hz,MAX:4A( MAX:2A ( Made in China AC 100-240V Neutral Live (2) Light Mode Connection Diagram Curtain Motor Controller SR-ZV9080A-B(908.42MHz) FCC ID:XXXSR9080A Ratings:120V~,60Hz,MAX:4A( MAX:2A ( Made in China AC 100-240V...
