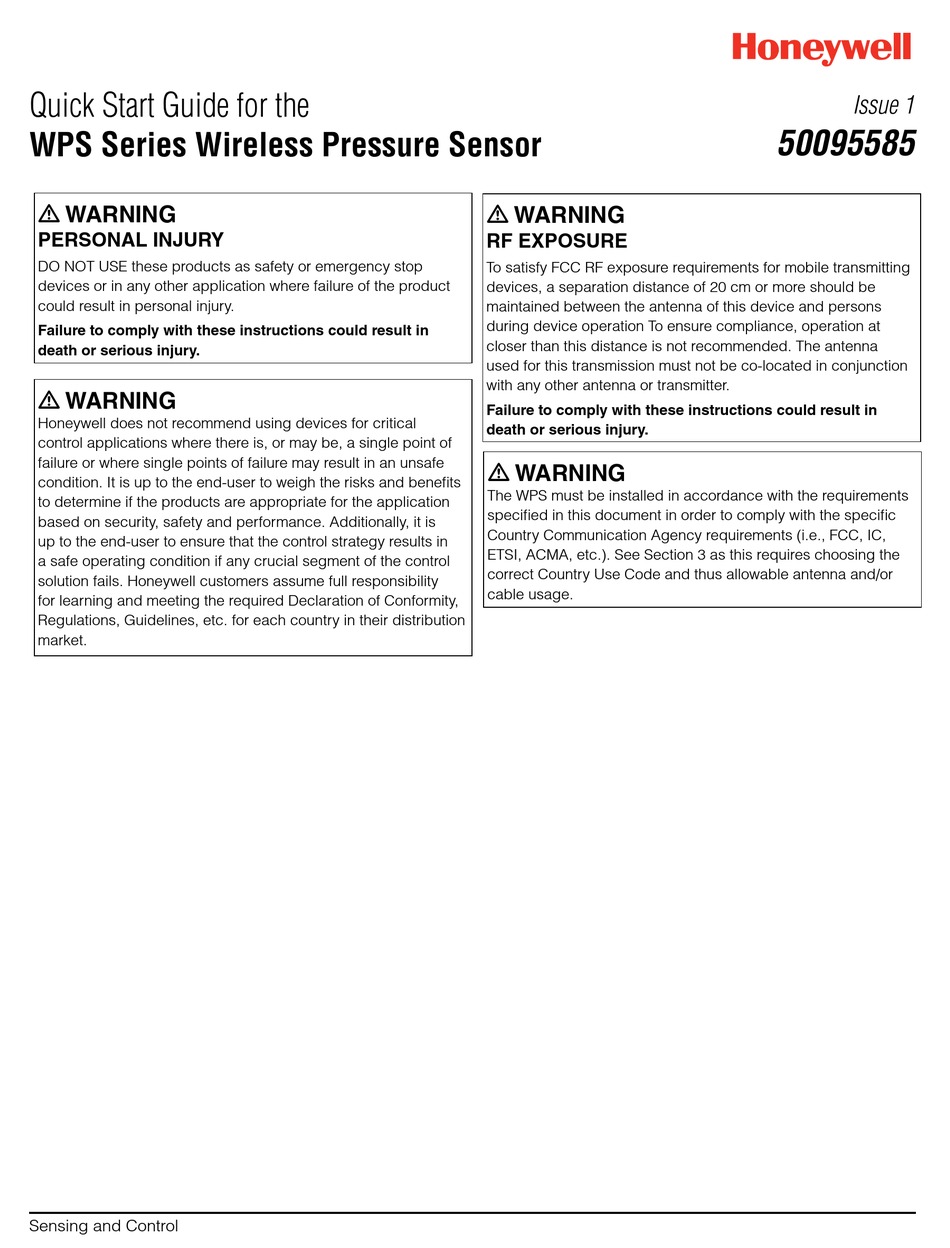

Quick Start Guide for the
WPS Series Wireless Pressure Sensor
m WARNING
PERSONAL INJURY
DO NOT USE these products as safety or emergency stop
devices or in any other application where failure of the product
could result in personal injury.
Failure to comply with these instructions could result in
death or serious injury.
m WARNING
Honeywell does not recommend using devices for critical
control applications where there is, or may be, a single point of
failure or where single points of failure may result in an unsafe
condition. It is up to the end-user to weigh the risks and benefits
to determine if the products are appropriate for the application
based on security, safety and performance. Additionally, it is
up to the end-user to ensure that the control strategy results in
a safe operating condition if any crucial segment of the control
solution fails. Honeywell customers assume full responsibility
for learning and meeting the required Declaration of Conformity,
Regulations, Guidelines, etc. for each country in their distribution
market.
Sensing and Control
m WARNING
RF EXPOSURE
To satisfy FCC RF exposure requirements for mobile transmitting
devices, a separation distance of 20 cm or more should be
maintained between the antenna of this device and persons
during device operation To ensure compliance, operation at
closer than this distance is not recommended. The antenna
used for this transmission must not be co-located in conjunction
with any other antenna or transmitter.
Failure to comply with these instructions could result in
death or serious injury.
m WARNING
The WPS must be installed in accordance with the requirements
specified in this document in order to comply with the specific
Country Communication Agency requirements (i.e., FCC, IC,
ETSI, ACMA, etc.). See Section 3 as this requires choosing the
correct Country Use Code and thus allowable antenna and/or
cable usage.
Issue 1
50095585

Advertisement

loading

  Related Manuals for Honeywell WPS Series

  Summary of Contents for Honeywell WPS Series

  • Page 1 WARNING Failure to comply with these instructions could result in Honeywell does not recommend using devices for critical death or serious injury. control applications where there is, or may be, a single point of...
  • Page 2 Sensor Quick Start Guide and for its customers. 50095585, February 2014 In no event is Honeywell liable to anyone for any indirect, special or Issue 1 consequential damages. The information and specifications in this document are subject to change without notice.
  • Page 3 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor TABLE OF CONTENTS 1 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1...
  • Page 4 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor Honeywell Sensing and Control...
  • Page 5 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor List of Figures Figure 1. to come List of Tables Table 1 – to come Honeywell Sensing and Control...
  • Page 6 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor Symbol Definitions The following table lists those symbols used in this document to denote certain conditions. Table 1 – Table Symbol Definitions Symbol Definition ATTENTION: Identifies information that requires special consideration.
  • Page 7 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor INTRODUCTION Site Preparation Wireless devices require proper site preparation to ensure optimum performance and safety compliance. Do not proceed until you have done the proper planning described in the Wireless Planning Guide.
  • Page 8 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor Certifications and Approvals 1.3.1 Hazardous Location Certifications Table 2. Certifications and Approvals Agency Type of Protection Ambient Temperature Product Applicability* Intrinsically Safe: Pressure Class I; Division 1; Groups A, B, C, D;...
  • Page 9 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor Agency Type of Protection Ambient Temperature Product Applicability* Pressure Intrinsically Safe: Temperature/ Discrete Inputs -40 °C to +70 °C: Battery II 1 G Ex ia IIB T4 Corrosion -40 °C to +80 °C : dc Supply...
  • Page 10: Electrical Data

    1.3.2 Electrical Data 1.3.2.1 Battery The WPS Series Wireless Pressure Sensor uses two each, series connected (D size) Lithium ion batteries, type 5930 manufactured by Tadi- ran, type XL-205 F manufactured by Zeno Energy or type PT-2300H manufactured by Eagle Picher.
  • Page 11 20 cm from all persons. 1.6.2 European Union Restriction The WPS Series Wireless Sensors are in conformity with the applicable portions of the ETSI standards as required by the R&TTE Directive 1999/5/EC.
  • Page 12 Weight Model Weight WPS-Series 2 lb., 3 oz. (1.0 kg) Dimensions Figure 1. Dimensions of WPS Series Wireless Pressure Sensor 234 mm ±1 mm [9.21 in ±0.04 in] 149 mm ±1 mm [5.87 in ±0.04 in] 45 mm [1.77 in] 31,75 mm [1.25 in]...
  • Page 13: Pressure Port

    Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor WPS Series Sensor Location 2.3.1 Recommended Locations Table 4. WPS Series, GP or AP Process Suggested location Explanation Gases Above the gas line The condensate drains away from the sensor.
  • Page 14 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor Figure 2. Typical Arrangement for 1/2 NPT Process Connection Piping , ATTENTION For liquid or steam, the piping should slope a minimum of 25,4 mm [1 in] per 305 mm [1 ft]. Slope the piping down towards the sensor if the sensor is below the process connection so the bubbles may rise back into the piping through the liquid.
  • Page 15 Sensor body. 3.1.4 Sensor Housing Swiveling The WPS Series sensor housing will swivel through a 350 degree range to facilitate easy reading of the LCD display. To adjust the swivel mounting: Insure that the process connector (threaded fitting) is in its final position and is fully tightened, using a wrench on the hex-nut area above the threads (do NOT tighten using the sensor body).
  • Page 16 • The WPS Series Wireless Sensors comply with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 17 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor Direct Mount Antenna m WARNING POTENTIAL ELECTROSTATIC CHARGING HAZARD The direct mount antenna radome is made of plastic and has a surface resistance greater than 1Gohm per square. When the...
  • Page 18 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor 4.2.2 Direct Mount, Tilt and Swivel If the WP-Series transmitter uses an optional tilt & swivel antenna you can adjust it to improve reception. Figure 5. Direct Mount Antenna...
  • Page 19 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor Remote Antennas 4.3.1 Outdoor Installation Warnings m WARNING LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions included with the equipment being installed.
  • Page 20 If the coax cable is to enter a building, then the lightning arrestor should be mounted as close as possible to where the lead-in wire enters the building. The lightning arrestor recommended by Honeywell features a bulkhead RP-SMA connector with a rubber “O”-ring seal which can be used for mounting through an enclosure wall.
  • Page 21 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor 4.3.6 Antenna Mount Types Antennas are provided with a variety of mounting options, including magnetic mount, tape mounting, or mast mounting. The standard 0 dBi or 2.0 dBi antennas, normally mounted on the sensor, may also be mounted to an extender cable, if the remote cable end is mounted in a through hole with the nut and lockwasher.
  • Page 22 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor 4.3.8 Adhesive Mounting (only spot this type of antenna mentioned) The benefit of the remote adhesive mount antenna is mounting flexibility to a number of surfaces and in various orientations. Note that the surface that the antenna is being mounted to will affect the radiation pattern so it is suggested that masking tape be used to temporarily at- tach the antenna.
  • Page 23 Mast mounting kits consist of a mounting bracket and one or two U-bolt clamps. These kits allow you to mount the bracket to masts with outside diameters (O.D.) from 3,2 cm [1.25 in] to 5,1 cm [2 in]. Honeywell recommends that a 3,8 cm [1.5 in] or larger tubing mast be used.
  • Page 24 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor 4.3.10 Grounding the Antenna Follow these guidelines to ground the antenna in accordance with national electrical code instructions. Step Action Use No. 10 AWG copper or No. 8 or larger copper-clad steel or bronze wire as ground wires for both mast and lead-in. Securely clamp the wire to the bottom of the mast.
  • Page 25: Battery Connection

    Battery Connection As shipped, the WPS Series Wireless Pressure Sensor contains two each, D-sized batteries, held in a battery holder. The batteries are kept in a disconnected state by a small plastic battery insulator. This insulator must be removed prior to provisioning and operating the sensor.
  • Page 26 DO NOT DISASSEMBLE OR ASSEMBLE WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT On the rear of the WPS Series sensor, Unscrew the four captive screws and remove the cover. Remove the plastic battery insulator from the positive (+) terminal of on battery. Save this insulator for use when removing sen- sors from the network, before storing them.
  • Page 27 Provisioning Before the sensor can join the network, it must be provisioned. For the WPS Series Wireless Pressure Sensor, this must be done over the air (OTA), using the WDM Interface. There is no provision for handheld provisioning devices using IR transmitters.
  • Page 28 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor CERTIFICATION INSTALLATION REQUIREMENTS Certification Drawings Use the following drawings and accompanying notes and text for hazardous locations. Any deviation from the installation requirements could void the certification. For non-hazardous locations you can use the same drawings without the accompanying notes and text.
  • Page 29 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor Figure 9. Schedule Honeywell Sensing and Control...
  • Page 30 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor Figure 10. Schedule Honeywell Sensing and Control...
  • Page 31 Quick Start Guide for the 50095585 ISSUE 1 WPS Series Wireless Pressure Sensor Figure 11. CSA Installation Drawings Honeywell Sensing and Control...
  • Page 32 +44 (0) 1698 481676 Fax While we provide application assistance personally, through our Latin America +1-305-805-8188 literature and the Honeywell web site, it is up to the customer to +1-305-883-8257 Fax determine the suitability of the product in the application. USA/Canada +1-800-537-6945 Specifications may change without notice.
  • Page 33 WARNING Failure to comply with these instructions could result in Honeywell does not recommend using devices for critical death or serious injury. control applications where there is, or may be, a single point of...
  • Page 34 Sensor User Manual ment with and for its customers. 50095584, February 2014 In no event is Honeywell liable to anyone for any indirect, special Issue 1 or consequential damages. The information and specifications in this document are subject to change without notice.
  • Page 35 50095584 ISSUE 1 WPS Series Wireless Pressure Sensor TABLE OF CONTENTS 1 DESCRIPTION ..............1...
  • Page 36 User Manual for the 50095584 ISSUE 1 WPS Series Wireless Pressure Sensor Honeywell Sensing and Control...
  • Page 37 User Manual for the 50095584 ISSUE 1 WPS Series Wireless Pressure Sensor List of Figures Figure 1. to come List of Tables Table 1 – to come Honeywell Sensing and Control...
  • Page 38 User Manual for the 50095584 ISSUE 1 WPS Series Wireless Pressure Sensor Symbol Definitions The following table lists those symbols used in this document to denote certain conditions. Table 1 – Table Symbol Definitions Symbol Definition ATTENTION: Identifies information that requires special consideration.
  • Page 39 The manual includes: • Details of topics that relate uniquely to the Honeywell WPS Series Wireless Pressure Sensor. • This manual does not cover installation, mounting, or process insertion. See WPS Series Quick Start Guide (document 50095585). OneWireless Network Overview OneWireless is an all digital, serial, two-way communication mesh network that interconnects industrial field sensors to a central sys- tem.
  • Page 40: Specifications

    User Manual for the 50095584 ISSUE 1 WPS Series Wireless Pressure Sensor Figure 1. WPS Functional Diagram SPECIFICATIONS Intended Country Usage 2.1.1 – North America Country ISO 3166 2 letter code UNITED STATES CANADA 2.1.2 – European Union Country ISO 3166 2 letter code...
  • Page 41 2.2.2 Provisioning Device Provisioning the WPS Series Wireless Pressure Sensor is accomplished over the air, using the WDM Interface. A device description file (.DD), supplied with Sensor, is loaded into the WDM system as part of the provisioning process. Handheld infrared provisioning devices are not supported.
  • Page 42 • Intentional or unintentional changes or modifications must not be made to the WPS Series Wireless Sensor unless under the express consent of the party responsible for compliance. Any such modifications could void the user’s authority to operate the equipment and will void the manufacturer’s warranty.
  • Page 43 – Part 1: Protection by enclosures “tD” Manufacturer’s Name Honeywell Process Solutions 525 East Market Street, York, PA 17403 USA and Address The product herewith complies with the harmonized standards listed above. Typical product line systems Compliance Statement and configurations have been tested, for compliance.
  • Page 44 Svenska (Swedish): väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Hér með lýsir Honeywell yfir því að WPS Series Wireless Transmitters er í samræmi við grunnkröfur og Íslenska (Icelandic): aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
  • Page 45 Category ll 1 G (Zone 0). 2.6.1 ATEX Conditions for Safe Use Special precautions shall be taken to prevent the surface of the antenna of the WPS Series Wireless Sensor from being electrostati- cally charged.
  • Page 46 Installation Refer to the WPS Series Quick Start Guide (document 50095585) for installation and mounting of your WPS Series sensor. Note: The sensors are shipped with batteries installed, but with an insulating tab at one battery terminal, so as to keep the sensor inactive.
  • Page 47: Hardware Description

    It is aware of the relevant data blocks for the various sensors in the system through the use of the DD files (Device Description Files). As part of the provisioning process, a DD file for the WPS Series sensors is loaded into the system.
  • Page 48 A small reset button and green led are mounted on the measurement board, used to cause a hard reset (cold restart) of the micropro- cessor program. Refer to the WPS Series Professional Install Guide for reset procedures.A multiplexer (electronic switch) is connected between the inputs to be measured and the A/D converter, allowing the microprocessor to measure the pressure signal, the battery voltage, or the internal unit temperature sensor, as required.
  • Page 49: Lcd Display

    • R.F. Link Data Retransmissions - When the WPS Series Wireless Pressure Sensor needs to send a packet of data to the near- est AP (publish), it transmits the packet and waits for an acknowledgement. Normally, it receives the acknowledgement im- mediately, stops, and waits for the next scheduled transmission time.
  • Page 50: Display Modes

    User Manual for the 50095584 ISSUE 1 WPS Series Wireless Pressure Sensor OPERATION Overview 5.1.1 Display Modes The sensor has the following display modes. • PV display: Displays the Process Value and units • Connection (Link) status: Displays a label calculated from the link signal amplitude Sensor PV Display On the LCD display, the following information is displayed in sequence.
  • Page 51 Insure sensor has been properly provisioned with the WDM UI.Restore mode to Auto in OneWireless WDM A/D Failure Diagnostics detected defect Perform cold restart per WPS Series Professional In- with analog-to-digital converter stall Guide. If condition persists, measurement board has failed, sensor must be replaced. Low Battery Battery voltage critically low, Replace batteries as soon as possible.
  • Page 52 Figure 3. Battery Estimates Other User Settings The following user settings may be set over the air, using the Interface. Refer to the WPS Series Professional Install Guide, (document 50095583) for a complete explanation and instructions for performing these settings. •...
  • Page 53: Replacing Batteries

    3.6V LITHIUM THIONYL CHLORIDE (Li-SOCI2) BATTERY, D size The above batteries are also available from the Xeno company under part number XL-205F. For other available antennas, antenna cables, and lightning arrestors, refer to the WPS Series Professional Install Guide. Replacing Batteries 6.2.1 When to Replace...
  • Page 54 User Manual for the 50095584 ISSUE 1 WPS Series Wireless Pressure Sensor 6.2.4 Tools required Should we include warn- • #2 Phillips Screwdriver ing that batteries must be replaced at the same time? • Torque Screwdriver with #2 bit , ATTENTION Batteries must be replaced only by a trained service technician.
  • Page 55 DO NOT DISASSEMBLE OR ASSEMBLE WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT On the rear of the WPS Series sensor, Unscrew the four captive screws and remove the cover. Using thumb and forefinger, carefully pry each battery out, lifting first one end, then the other.
  • Page 56: Software Updates

    Table 8. Antenna Replacement Procedure Step Action Honeywell recommends that the sensor be removed from service and moved to a clean area before servicing. Remove the two screws holding the antenna radome to the sensor housing. Unthread the antenna from the RP-SMA connector.
  • Page 57 +44 (0) 1698 481676 Fax While we provide application assistance personally, through our Latin America +1-305-805-8188 literature and the Honeywell web site, it is up to the customer to +1-305-883-8257 Fax determine the suitability of the product in the application. USA/Canada +1-800-537-6945 Specifications may change without notice.
