GEIGER PRO.TECline Spindle GB45 Series Original Assembly And Operating Instructions
For rolling shutters and screens
Hide thumbs
Also See for PRO.TECline Spindle GB45 Series:
- Original assembly and operating instructions (56 pages)
Table of Contents
Advertisement
Quick Links

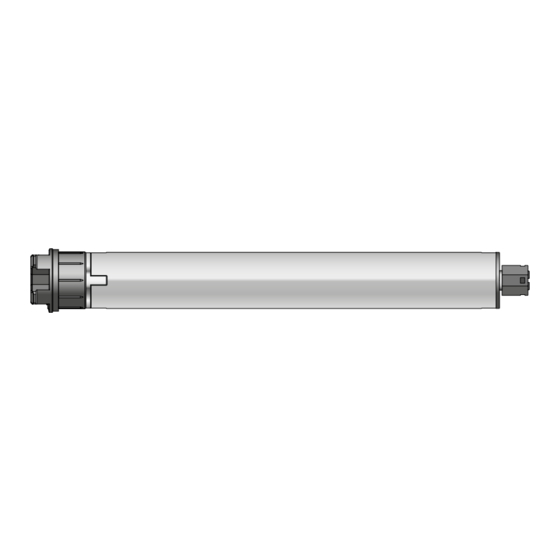

Tubular motor:
GEIGER PRO.TECline
Motor control:
PRO.TECline Spindle (GB45...-M01)
for rolling shutters and screens
Original-Montage- und
DE
Betriebsanleitung
Original assembly and
EN
operating instructions
Notice originale de montage
FR
et d'utilisation
Instrucciones originales de
ES
instalación y funcionamiento
Istruzioni originali di
IT
installazione e funzionamento
www.geiger.de
EN
1
EN
Advertisement
Table of Contents
Related Manuals for GEIGER PRO.TECline Spindle GB45 Series
Summary of Contents for GEIGER PRO.TECline Spindle GB45 Series
- Page 1 Tubular motor: GEIGER PRO.TECline Motor control: PRO.TECline Spindle (GB45...-M01) for rolling shutters and screens Original-Montage- und Betriebsanleitung Original assembly and operating instructions Notice originale de montage et d’utilisation Instrucciones originales de instalación y funcionamiento Istruzioni originali di installazione e funzionamento...
-
Page 2: Table Of Contents
1. General information Dear customer, By purchasing a GEIGER motor you have decided on a quality product from GEIGER. Thank you very much for your decision and the confidence placed in us. Before you put this drive into operation please observe the following safety instructions. It serves for the prevention of danger and for the avoidance of personal injury and damage to property. -
Page 3: Guarantee
- M01 Motor control Motor head Torque in Nm Motor diameter GEIGER PRO.TECline 4. Safety instructions ATTENTION: Important safety instructions. For personal safety, it is important to follow these instructions. Please keep these instructions for future reference. f Do not allow children to play with stationary controls. Keep remote controls away from children. -
Page 4: Safety Instructions For Assembly
A plug for the disconnection of the motor from the power supply must be accessible after installation. f Damaged connecting cables must be replaced by GEIGER connecting cables of the same type. f The device must be mounted as described in the installation instructions. Fixations shall not be made with adhesives since they are regarded as unreliable. -
Page 5: Installation Instructions
– Place the motor into the existing engine bearer and lock – Place the motor in a compatible engine bearer with clip system and lock with spring or rotating lever The GEIGER PRO.TECline motor is suitable for shaft diameters from 50 mm! www.geiger.de... -
Page 6: Information For The Specialist Electrician
The setting of the end positions for installation situations A and B is described below. In situations C and D, the assignment of the setting screws changes. To turn the setting screws, use a 4mm hexagon key or the included adjustment aid. Gerhard Geiger GmbH & Co. KG | 100W2544 V000 1119... - Page 7 If the lower end position is overrun (the motor switches off too late): • Press the UP key until the hanging is above the selected end position. • Turn the setting screw a few turns in MINUS direction and repeat the procedure described above again. www.geiger.de...
-
Page 8: What To Do If
• Adjusting knob not pressed properly. is not correct. Repeat adjustment process, press adjus- ting knob deeply. • Actuator does not rotate simultaneously. Push shaft onto tube actuator, repeat adjustment process. Gerhard Geiger GmbH & Co. KG | 100W2544 V000 1119... -
Page 9: Technical Data
The average sound pressure level data are intended for guidance only. The values were determined by GEIGER at a distance of 1 m, with a hanging motor at idle speed and averaged over 10 seconds. There is no reference to any specific test standard. -
Page 10: Declaration Of Conformity
Gerhard Geiger GmbH & Co. KG Schleifmühle 6 | D-74321 Bietigheim-Bissingen Phone +49 (0) 7142 9380 | Fax +49 (0) 7142 938 230 | info@geiger.de | www.geiger.de Sitz Bietigheim-Bissingen | Amtsgericht Stuttgart HRA 300591 | USt-IdNr. DE145002146 Komplementär: Geiger Verwaltungs-GmbH | Sitz Bietigheim-Bissingen | Amtsgericht Stuttgart HRB 300481 Geschäftsführer: Roland Kraus | WEEE-Reg.-Nr. - Page 11 www.geiger.de...
- Page 12 They will be happy to assist you. Gerhard Geiger GmbH & Co. KG Schleifmühle 6 | D-74321 Bietigheim-Bissingen T +49 (0) 7142 9380 | F +49 (0) 7142 938 230 info@geiger.de | www.geiger.de Gerhard Geiger GmbH & Co. KG | 100W2544 V000 1119...
