• Pass the 230V 50Hz mains supply and load cables through the cable
entry points on the backing pate, ensuring the grommet(s) is used
to maintain the IP rating of the PIR sensor.
• Fix the mounting plate to the wall using the correct screws for the
rawl plugs installed.
• Terminate the cables into the terminal block ensuring correct polarity
is observed and that all bare conductors are sleeved (see section 7.
Connection Diagram).
• Ensure all connections are secure.
• Slide the main body back onto the mounting plate then pull in a
downwards direction so that it is fully engaged with the mounting plate.
• Secure the unit by replacing the screw on the underside.

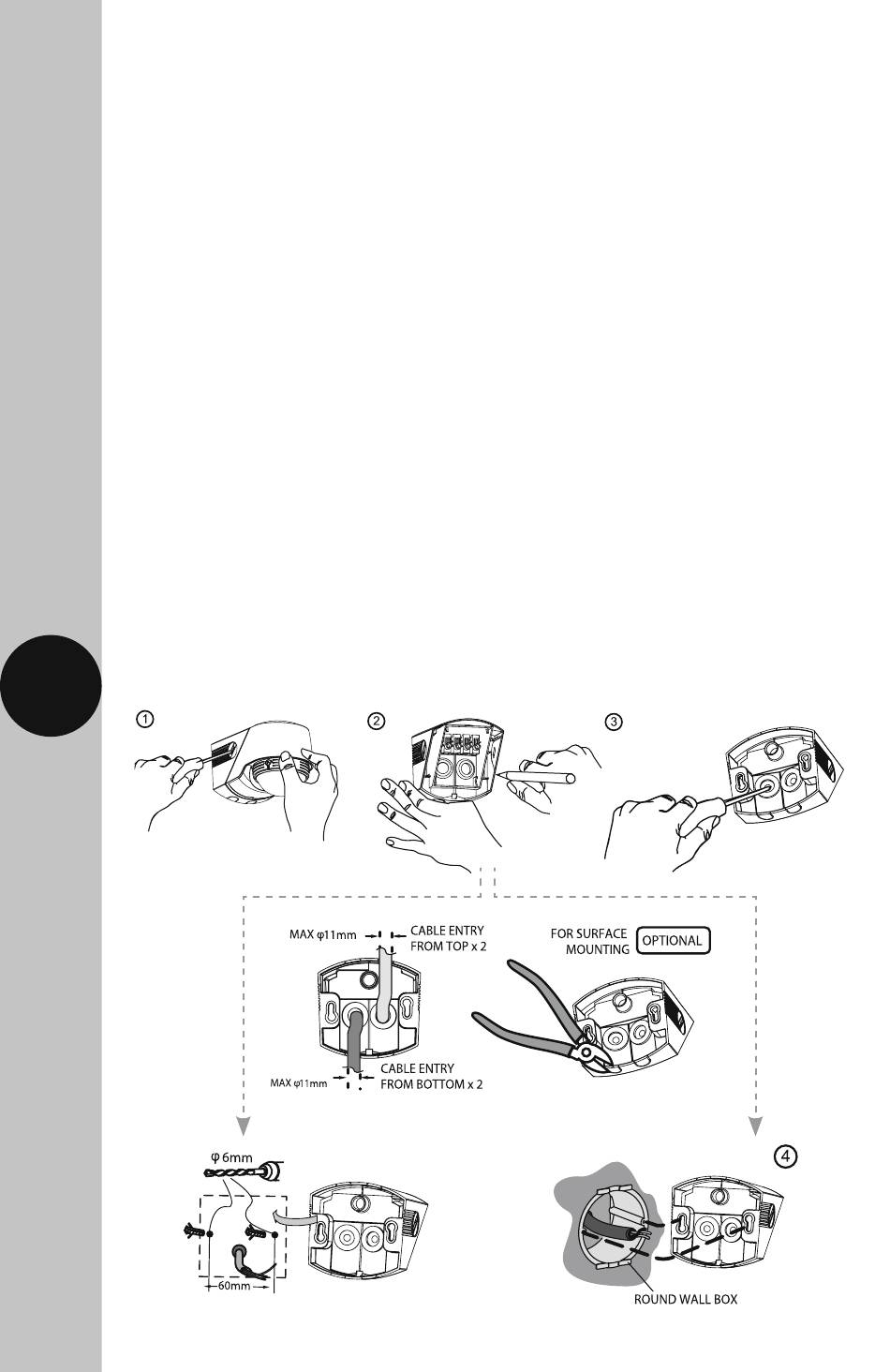

6. Mounting Installation Steps
Wall Mounting
• Please use the following steps for wall/surface mounting.
