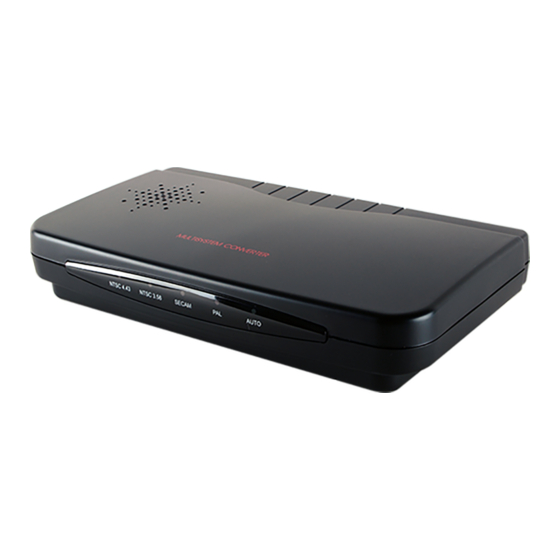

PAL to NTSC (NTSC to PAL)
Video Converter
Convertor (CDM-600)
Operation Manual
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NSW, 2304 Australia,
sales@converters.tv
Phone +61 249689313 Fax +61 249689314
www.converters.tv
Advertisement
Table of Contents
Related Manuals for Cypress CDM-600
Summary of Contents for Cypress CDM-600
- Page 1 PAL to NTSC (NTSC to PAL) Video Converter Convertor (CDM-600) Operation Manual Please browse our online catalogue to view our full product range. 44-48 Maitland Road, Mayfield East, NSW, 2304 Australia, sales@converters.tv Phone +61 249689313 Fax +61 249689314 www.converters.tv...
- Page 2 Introduction This unit is a digital multi-system video converter that converts video signals from NTSC, PAL, or SECAM to NTSC or PAL. It is suitable for home applications. Precautions 1. Do not expose this product to direct sunlight. 2. Keep the unit away from radiator, heat sources and magnetic field. 3.
- Page 3 Operation controls and functions Front Panel 1. AUTO indicator- This indicator will light when in Auto detecting mode. 2. PAL indicator- This indicator will light when input signal is PAL. 3. SECAM indicator- This indicator will light when input signal is SECAM. 4.
- Page 4 Rear Panel 1. DC Power supply 15 V input- This is the power supply input port. It is to be used with the power pack supplied. 2. Video Input- This is the video input port. Connect your input device to the video input port using a composite RCA connector cable.
- Page 5 Connection and Installation The AC adaptor power unit should not be plugged into a wall outlet until all connections are complete. Using your connector cable connect the output (Number 5 on the rear panel) to your output device (NTSC or PAL Video Recorder or TV). Using your connector cable connect your input (Number 2 on the rear panel) to the input device (Video cassette recorder either- PAL, NTSC or SECAM, satellite receiver or a camcorder).
