This chapter introduces the Atmel SAM4E-EK Evaluation Kit design. It introduces system-level concepts, such as power
distribution, memory, and interface assignments.
The SAM4E-EK board is based on the integration of an ARM
set of popular peripherals. It is designed to provide a high performance processor evaluation solution with high flexibility
for various kinds of applications.

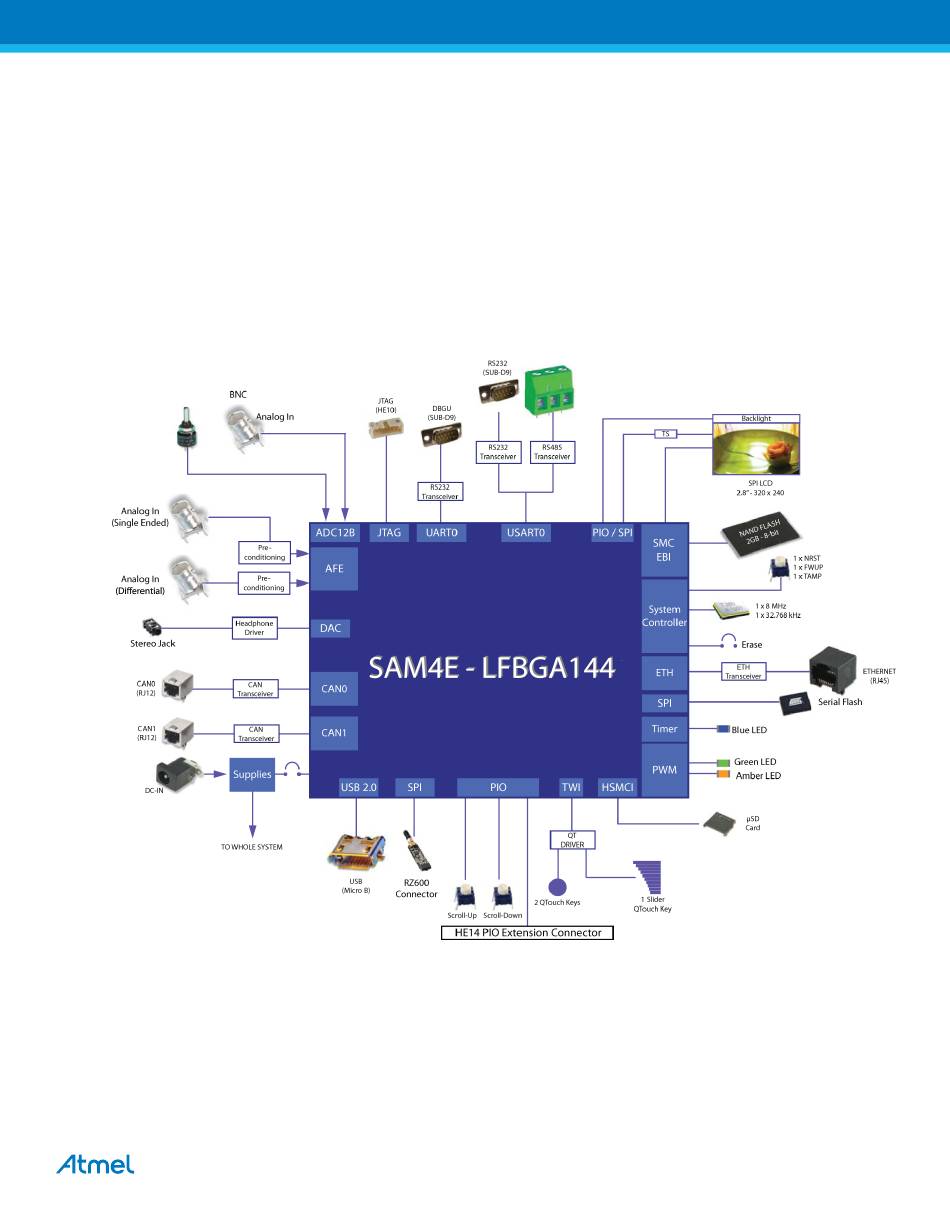

Figure 4-1. SAM4E-EK block diagram.
®
Cortex™-M4 processor with on-board NAND Flash and a
SAM4E-EK User Guide
7
