4.3.14 Audio Interface

The Atmel SAM4E-EK evaluation kit supports mono/stereo audio driven by a TPA0223 audio amplifier connected to two
DAC channels of the microcontroller.
The TPA0223 is a 2W mono Bridge-Tied-Load (BTL) amplifier designed to drive speakers with as low as 4Ω
impedance. The amplifier can be reconfigured on the fly to drive two stereo Single-Ended (SE) signals into head
phones.

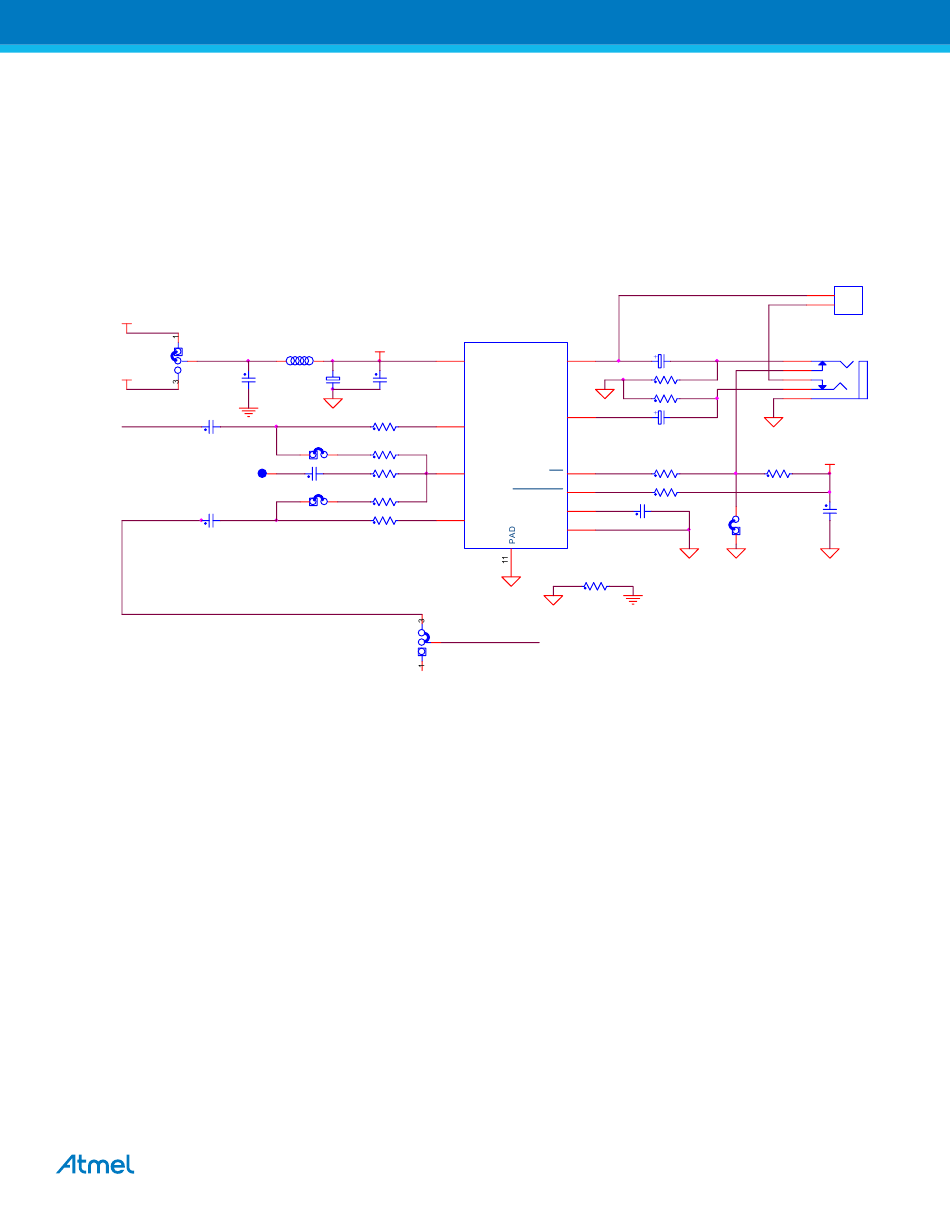

Figure 4-14. Headphone output.
+5V
2
JP14
+3V3
PB13
C63 0.47uF
DAC0
TP6
Test Pad SQ-40TH
AUDIO_OUTL
C67 0.47uF
Using a readily available 1/8-in. (3.5mm) stereo headphone jack, the control switch (pin4 and pin5 in J10) is closed
when no plug is inserted. When closed, a 100kΩ/1kΩ divider pulls the ST/MN input low. When a jack plug is inserted,
the 1kΩ resistor is disconnected and the ST/MN input is pulled high. The mono speaker (J9 connector) is also
physically disconnected from the RO/MO+ output so that no sound is heard from the speaker while the headphones are
inserted.
When works as stereo mode make sure JP15, JP16, and JP17 are disconnected.

4.3.15 USB device

The SAM4E16 UDP port is compliant with the Universal Serial Bus (USB) rev 2.0 Full Speed device specification. J11 is
a micro B-type receptacle for USB device.
Both 27Ω resistors R82 and R83 build up 90Ω differential impedance together with the (embedded) 6Ω output
impedance of the SAM4E16 full speed channel drivers.
R80 and R81 build up a divider bridge from VBUS +5V to implement plug-in detection (5V level gets lowered to a PIO
compatible 3.3V level) through PC21.
