3 - Mechanical Integration
3.2

Dimensions

Overall dimensions of the device are shown in Figure 3-1. For solutions that include an enclosure, the
dimensions of the enclosure panel cutout required to accommodate DynaWave are specified in section 3.4
Enclosure Design.
On request, MagTek can provide a 3D model of the device's envelope to assist with the mechanical
portion of solution design. MagTek strongly recommends building and testing prototypes with actual
devices before finalizing the solution design.

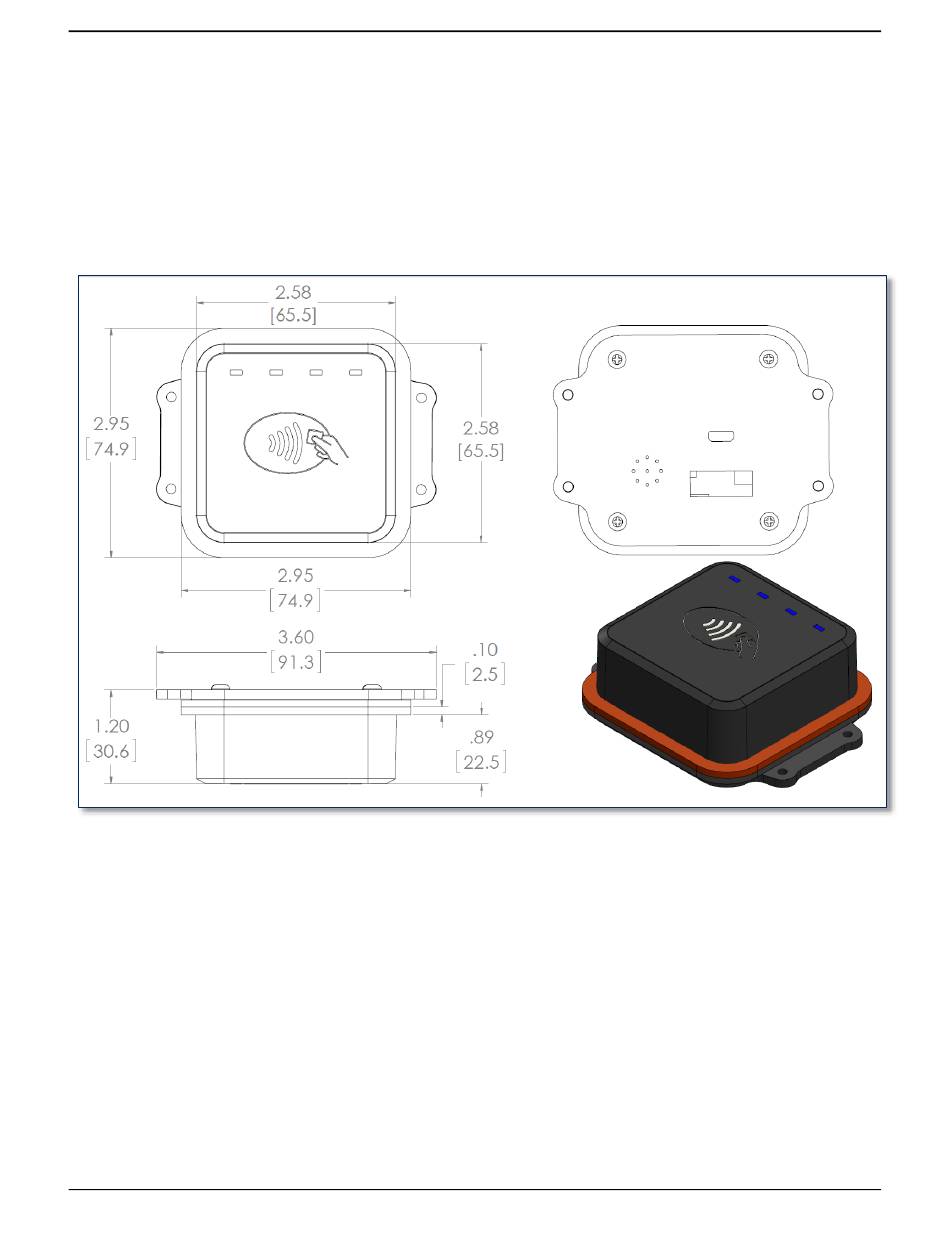

Figure 3-1 - DynaWave Mechanical Dimensions in mm [inches]
