2 - Electrical Integration
2.6
UART Port [J6]
Do not provide power to DynaWave through both the USB Device Port and UART Port at
the same time. Doing so could present a safety hazard and / or permanently damage the
device and connected equipment. Solution designs should include safeguards against
accidental double connections throughout the product's lifecycle.
The UART port
J6
can be used to provide power and bidirectional TTL-level serial communication with
a UART-capable host, which is generally a custom board designed specifically for the solution. The
UART port can also be used to provide earth ground in cases where earth ground is not available to the
USB Device Port [J3] (see section 2.3 Grounding / ESD Protection). The port connector is a JST
B10B-ZR-SM4-TF header designed to mate with a JST ZHR-10 connector or equivalent. Table 2-1
provides the port's pinout definitions, and Figure 2-2 shows the physical location of pin 1.
Table 2-1 - Pinout Specification for UART Port [J6]
GND
5V
5V
Device_RX_Data
5V
Device_TX_Data
Not connected
Not connected
GND
EARTH GND
DynaWave| OEM Contactless NFC Module | Installation and Operation Manual
UART Signal

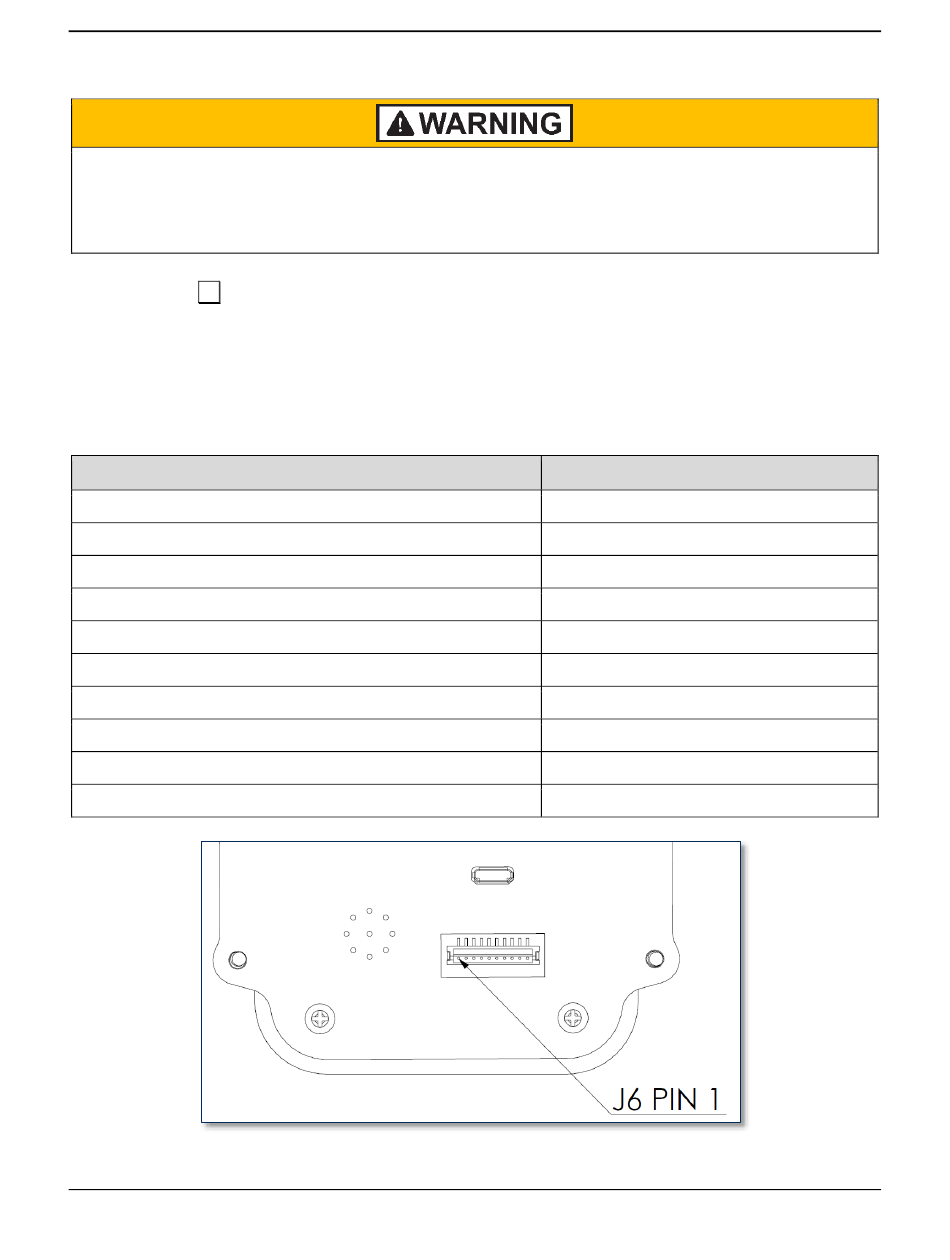

Figure 2-2 - DynaWave J6 Pin 1 Location
Page 19 of 39 (D998200265-10)
Connector Pin
1
2
3
4
5
6
7 (no pin present)
8 (no pin present)
9
10
