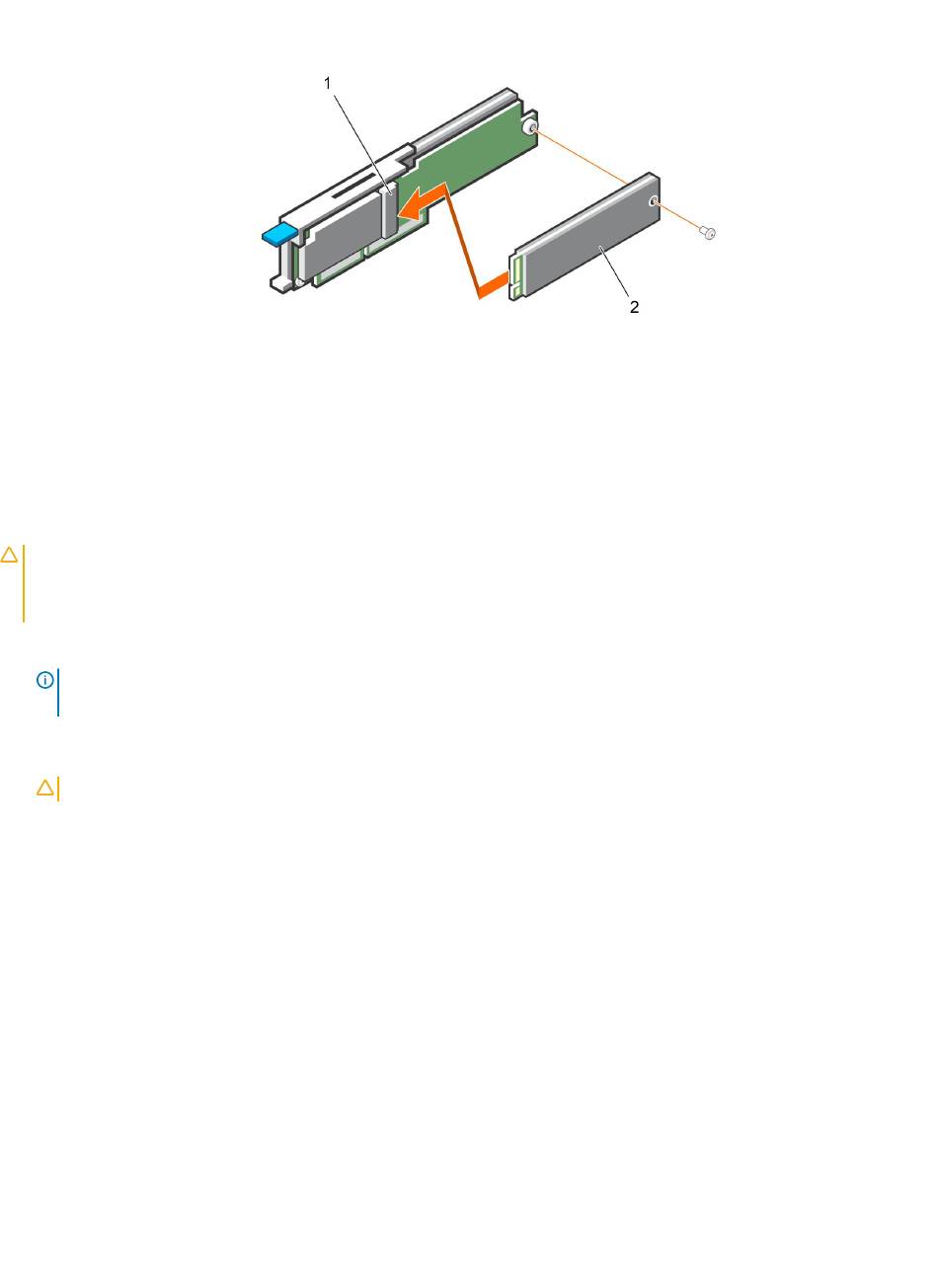

Figure 8. Installing the M.2 SSD module on the BOSS-S1 modular card
1
module connector
Installing the BOSS-S1 card
CAUTION:
Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team.
Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1
Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet and peripherals.
NOTE:
It is recommended that you always use a static mat and static strap while working on components in the interior of
the system.
2
Open the system.
3
Hold the card by its edges and align the card connector with the connector on the system board.
CAUTION:
To prevent damage to the card, hold the card by its edges only.
4
Press the card-edge down until the card is fully seated.
5
If you are installing a modular card, tighten the screw that secures the card to the system board.
6
Close the system.
7
Reconnect the system to its electrical outlet and turn the system on, including any attached peripherals.
18
Deploying the BOSS-S1 card
2
M.2 SSD module
