Compact Infinity Core
2.2

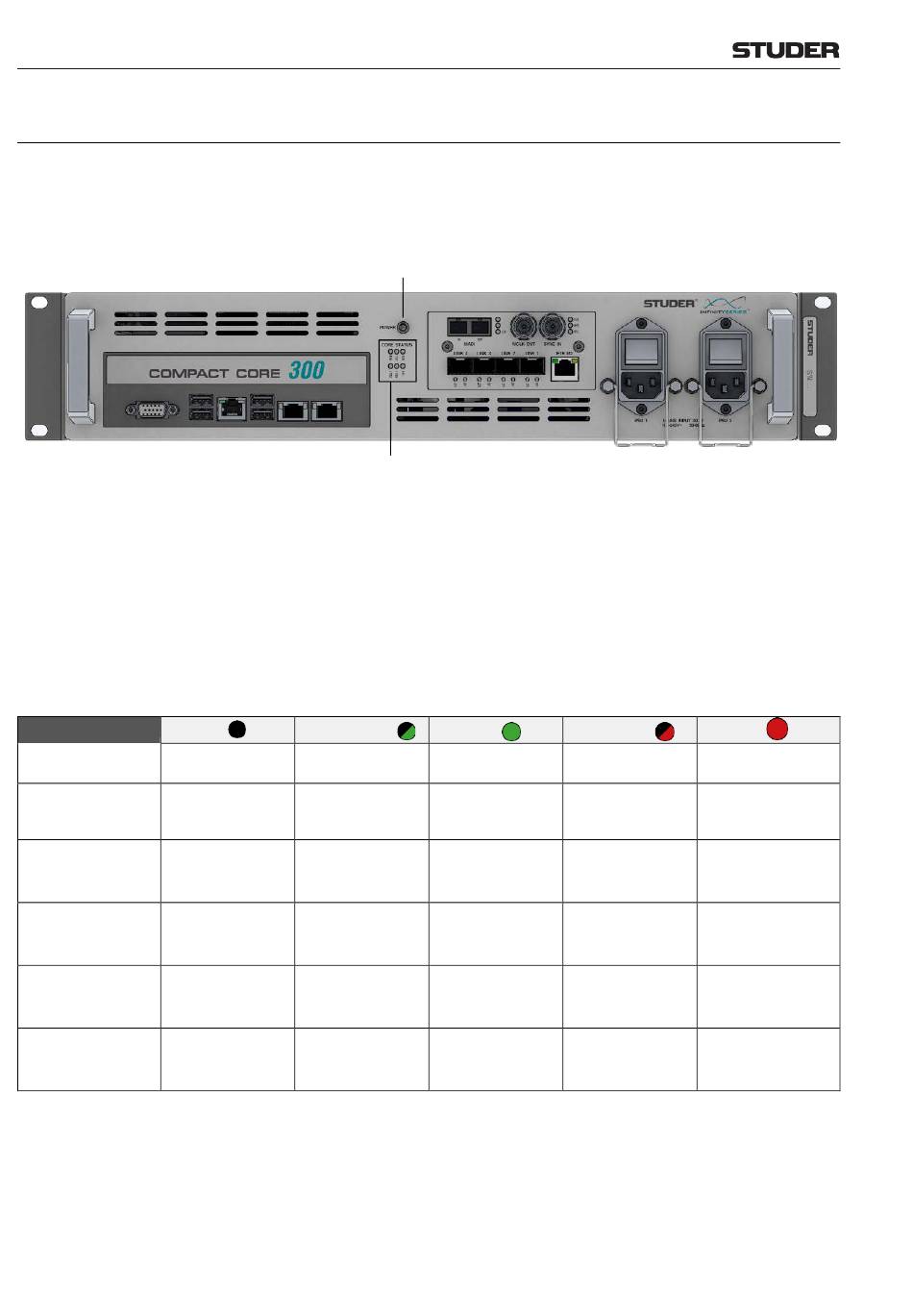

Hardware

Power On/Off Switch
Status LEDs
Status LEDs
I/O Link
System
Power off or Slave
Active
DSP Processing
PSU 1
PSU 2
FAN
7 Compact Infinity Core
The mainboard within the Compact Infinity Core is a high-end, standard form
factor industrial server mainboard with an Intel chip-set. It is fitted with up to
two Intel® Xeon® CPUs and one STUDER PCIe I/O card (Core Link Card).
Dual power supplies are fitted, with two separate AC inlets.
Power On/Off Switch
Status LEDs
The Power On/Off Switch is also located on the front panel of the unit.
To turn the system on, simply switch on the AC power by the switches above
the AC inlets and the core will start up. If the AC is already connected then
press the Power On/Off button to start up the core. To power down the core
simply press the Power On/Off button, the system will shut down (this may
take a few seconds).
The Status LEDs display the following information about the status of the
Compact Infinity Core :
Off
Blink Green
Power off Power up
Waiting for
Power off
configuration
Offline Master DSP
Processing
Power off -
Power off -
Power off -
Green Blink Red
Core Link Card OK Core Link Fan fail
DSP Processing OK Sync Loss
Master DSP
Processing
PSU 1 OK
PSU 2 OK
ALL FAN OK
AC Inlet AC Inlet
Red
Core Link Card error
DSP or Hardware
error
- -
- PSU 1 power missing
- PSU 2 power missing
One or more FAN unit
-
failed
