Vista 5 Service Manual
Monitoring assignment

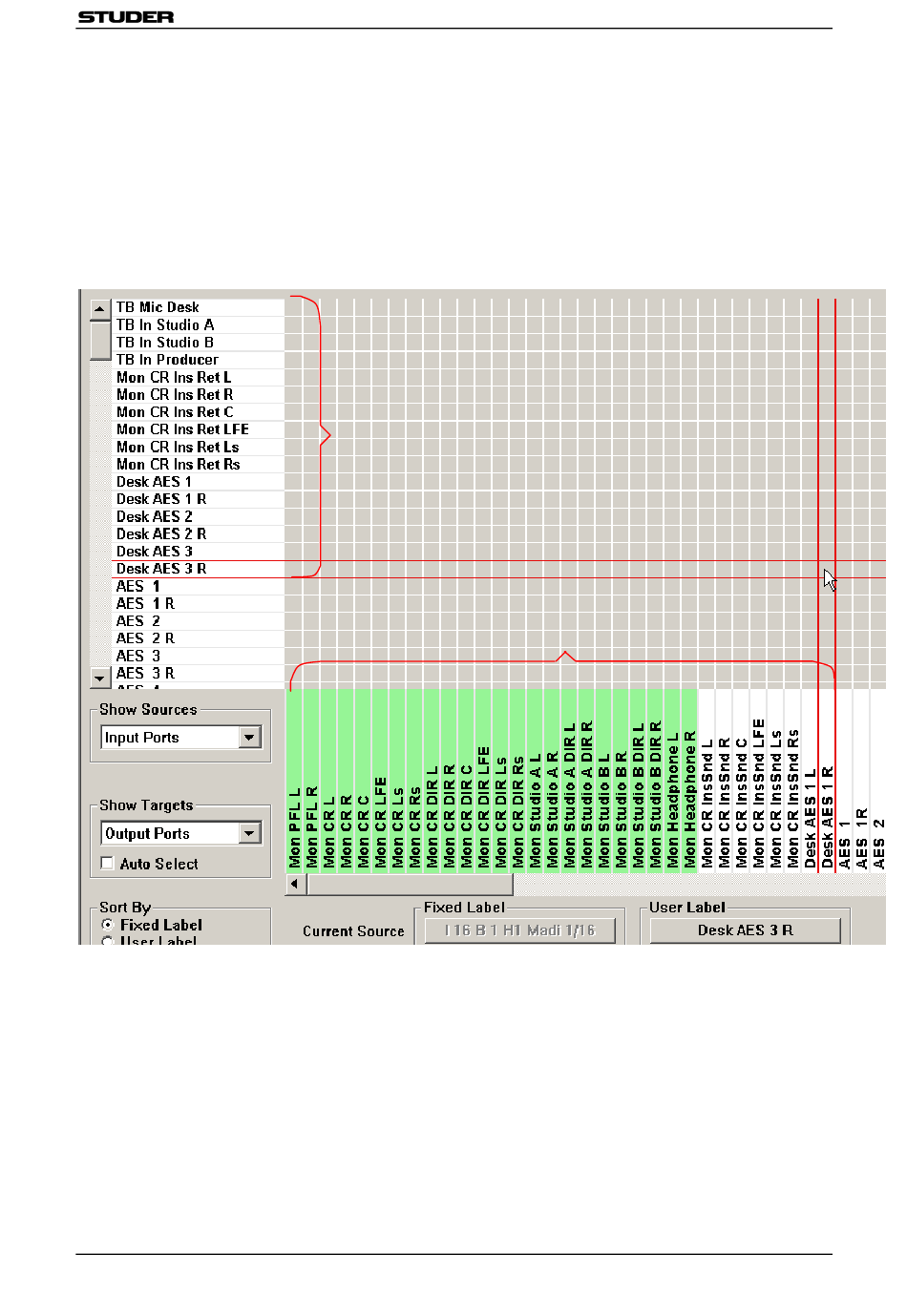

as shown in the General patch view:
Shown Sources: Input ports
Shown Targets: Output ports
16 Monitoring Input ports
32 Monitoring Output ports
Vista5 Service Manual (ed. 30/08)
Monitoring assignment
Page 1 from 2
