2.3

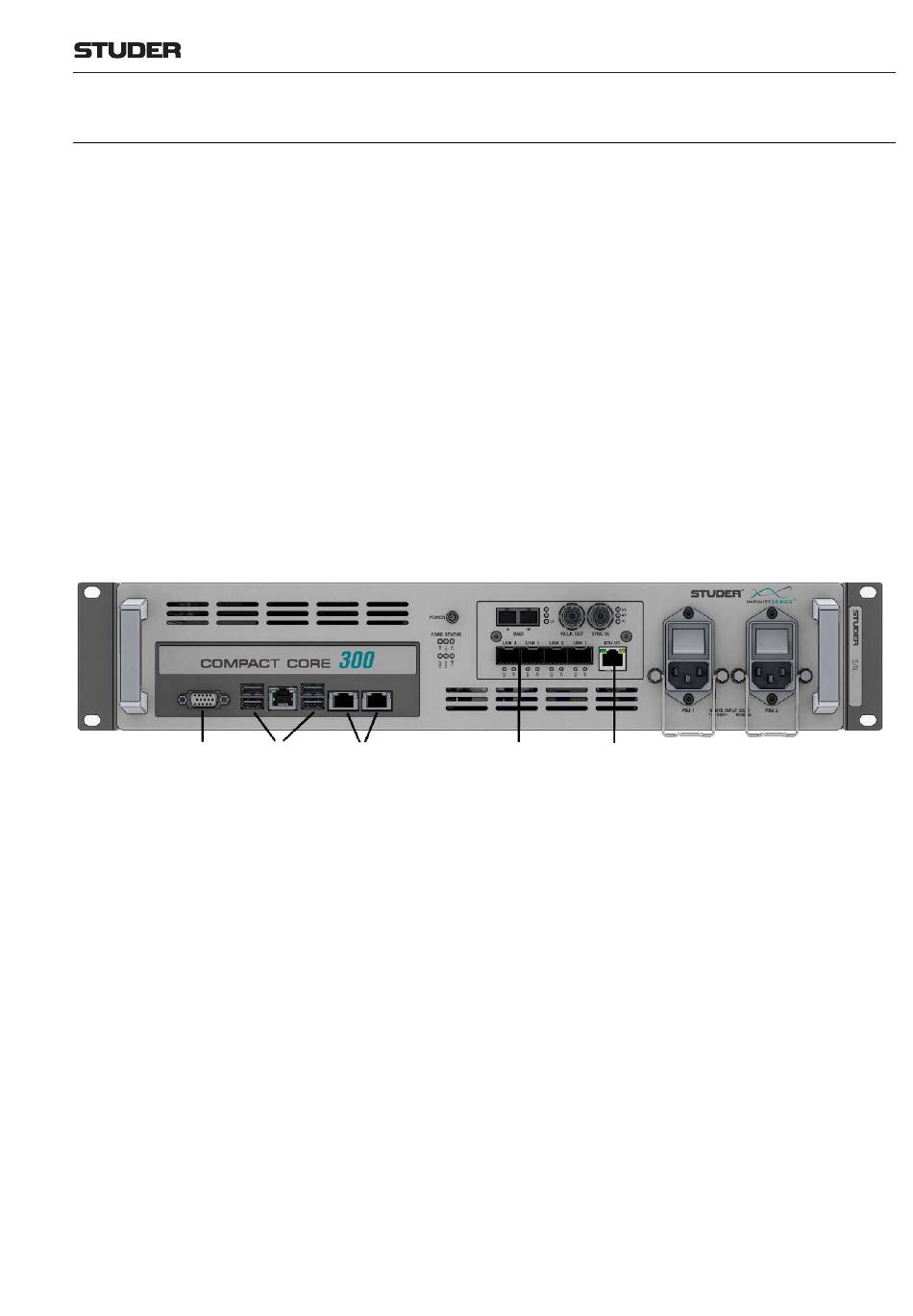

Connections

VGA Screen
connector connectors
Document generated: 13.06.18
Ethernet The two Ethernet control connections are normally directly linked to the two
Ethernet switches of the desk.
A-Link
There are 4 A-Link ports to bring audio in-, as well as out of the
Infinity Core. A-Link is a "super-fast" optical interface comprising a duplex
fibre pair of connections capable of carrying up to 1536 channels of 24 bit
audio. All 4 interfaces are configured to provide 1536 mono channels of
inputs and 1536 mono channels of outputs
SFP The A-Link interface uses SFP modules as connectors. SFP stands for Small
Form-factor Pluggable. These are small modules that plug into the carrier on
the card and are available in various optical frequencies and powers accord-
ing to transmission distance, fibre type and data load. They use "LC" fibre
connectors. Fitted as standard are 4.25Gb/s 850nm Multimode SFPs, this will
allow distances of up to 150m with 50μm/125μm fibre between units. For
longer distances, Single mode (9μm) types should be used.
Multi-mode SFP Part No. 5042823
Single-mode SFP Part No. 5042824
USB Ethernet
connectors
USB USB ports can be used to connect USB memory sticks that contain SW images
to upgrade the SW of the core. Then, also a USB keyboard can be connected
to a USB port.
VGA The VGA port is also used for servicing only - a VGA screen can be connected
(@48
4 x A-Link Ethernet tunneling
connectors for D23m devices
Compact Infinity Core
Compact
kHz).
Compact Infinity Core 8
