Compact Infinity Core
3

MODULES

3.1

Core Link Card

23 Compact Infinity Core
Compact Infinity Core Modules

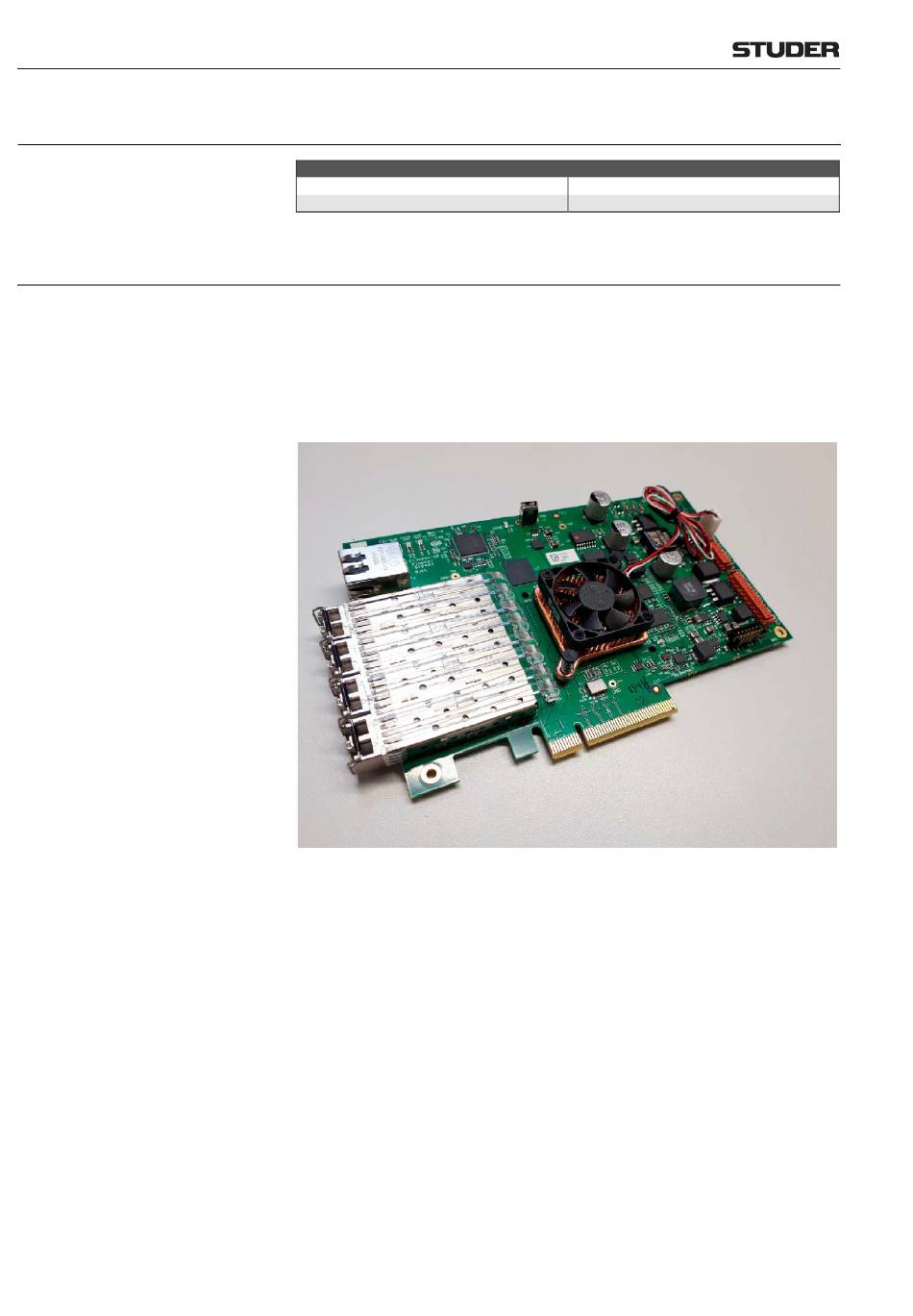

Compact Core Link Card
Primary Power Supply
The Compact Core Link card which is installed in every Compact Infinity
Core provides two features. Firstly, an audio interface system to connectthe
huge number of audio channels into and out of the CPUs. Secondly, it also
provides the processing for the mix busses. The mixing or summing element
is not provided in the main CPU DSP but is processed in a fast FPGA on the
Compact Core Link card.
A-Link
STUDER has designed a digital audio interface called A-Link. This fibre
based audio interface uses a 3 Gb data rate to offer up to 1536 channels of 24
bit audio per connection. The Compact Core Link card is fitted with 4 A-Link
interfaces.
5092119-00
5092150-00
5092119-00
