Setting up the Infinity Core
Node Name
Communication Port
Use Multicast
Multicast Group Address
Document generated: 13.06.18
Setting up a Infinity Core is done by using the browser based "Infinity
Panel" - which normally is started from the Vista desk.
Any Web browser can be started and the address of the core can be entered :
192.168.1.42:4000 (e.g. as this is the default address).
Then, the Infinity Panel appears - if the desk is connected to the core - and
the following five menu items can be accessed :
Settings, Network, Software, Control and Log

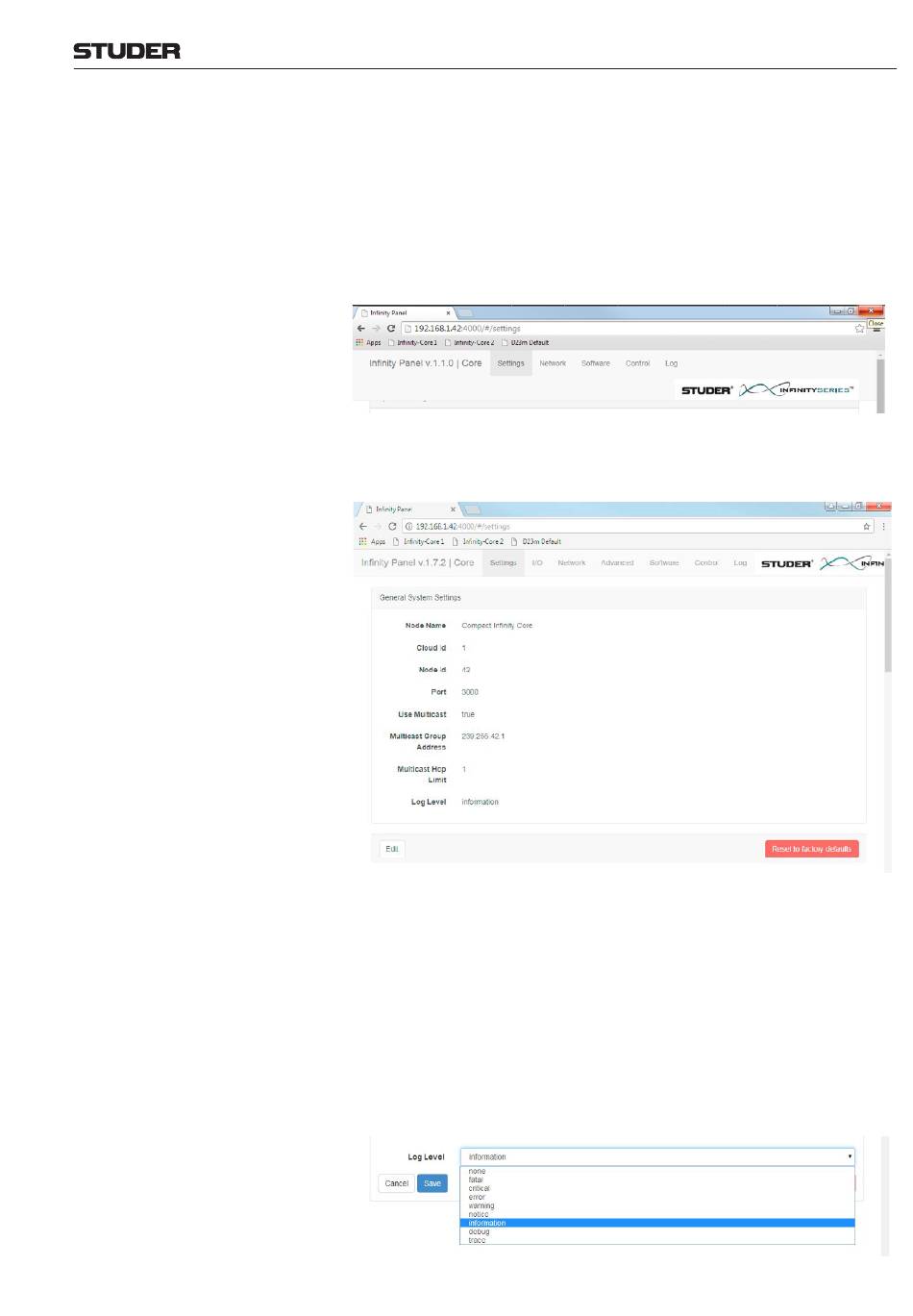

Settings On this page, the below described parameters are shown. All of these param-
eters can also be edited on this page :
The name of this Infinity Core - e.g. Main Core or Redundant Core.
Cloud Id
The Cloud Id of the Mixer Cloud.
Node Id The Node Id of this Infinity Core.
As a default, the communication Port for the communication with Cores is
Port 3000.
This enables to use IP multicast group communication, making use of the
UDP protocol.
Here the IP multicast group address is defined. As a default, the Multicast
Group Address for the communication with Cores is 239.255.42.1 .
Log level Here the level of details about the logged information is set. The dropdown
menu allows the shown choice. (Infomation being the default setting).
