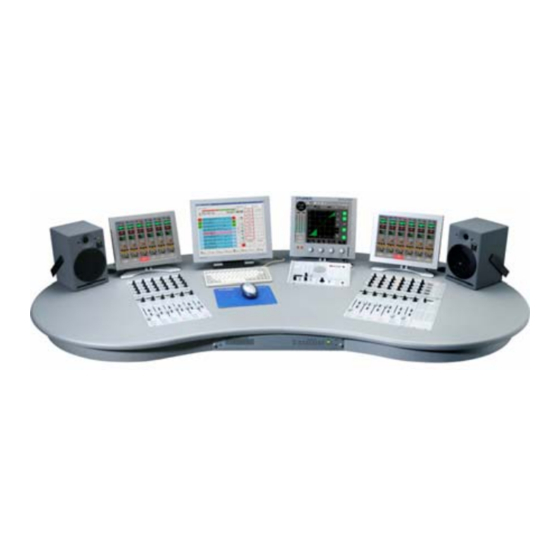

OnAir 3000
Digital Mixing System
1.
Audio Block Diagram, System Wiring
2.
Desk Modules
3.
DSP Modules
For information on the D21m I/O system please refer to the separate documents BD10.275102
and BD10.275113

Service Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OnAir 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Studer OnAir 3000

Summary of Contents for Studer OnAir 3000

  • Page 1: Service Instructions

    OnAir 3000 Digital Mixing System Audio Block Diagram, System Wiring Desk Modules DSP Modules For information on the D21m I/O system please refer to the separate documents BD10.275102 and BD10.275113 Service Instructions...
  • Page 2 Prepared and edited by Copyright by Studer Professional Audio GmbH Studer Professional Audio GmbH Technical Documentation Order no. BD10.275124-3 (0311) Althardstrasse 30 CH-8105 Regensdorf – Switzerland http://www.studer.ch Subject to change Studer is a registered trade mark of Studer Professional Audio GmbH, Regensdorf...
  • Page 3 • Only use attachments/accessories specified by the manufacturer. • Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use cau- tion when moving the cart/apparatus combination to avoid injury from tip-over. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Note: It is recommended that all maintenance and service on the product should be carried out by Studer or its authorised agents. Studer cannot accept any liability whatsoever for any loss or damage caused by service, maintenance or repair by unauthorised personnel. • WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not expose the apparatus to dripping or splashing and do not place objects filled with liquids, such as vases, on the apparatus. • No naked flame sources, such as lighted candles, should be placed on the apparatus. • Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table cloths, curtains etc. Warning: Do not use this apparatus in very dusty atmospheres, or in atmospheres containing flammable gases or chemicals.
  • Page 4 Safety Information • The mains supply disconnect device is the mains plug. It must remain accessible so as to be readily operable when the apparatus is in use. • If any part of the mains cord set is damaged, the complete cord set should be replaced. The following information is for reference only. The wires in the mains lead are coloured in accordance with the following code: • Protective Earth (Ground): Green/Yellow (US: Green or Green/ Yellow) • Neutral: Blue (US: White) • Live (Hot): Brown (US: Black) As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: • The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol. • The wire which is coloured Blue must be connected to the terminal in the plug which is marked with the letter N • The wire which is coloured Brown must be connected to the terminal in the plug which is marked with the letter L Ensure that these colour codes are followed carefully in the event of the plug being changed • This unit is capable of operating over a range of mains voltages, as marked on the rear panel.

  • Page 5: Safety Information

    Safety Information Conforming to this directive will minimise the risk of hearing damage caused by long listening periods. A simple rule to follow is: The longer you listen, the lower the average volume should be. Please take care when working with your audio system –...
  • Page 6 Installation General Installation Instructions Please consider besides these general instructions also any product-specific instructions in the “Installation” chapter of this manual. Unpacking Check the equipment for any transport damage. If the unit is mechanically damaged, if liquids have been spilled or if objects have fallen into the unit, it must not be connected to the AC power outlet, or it must be immediately disconnected by unplugging the power cable.
  • Page 7 Installation / EMC Class I Equipment (Mains Operation) Should the equipment be delivered without a matching mains cable, the latter has to be prepared by a trained person using the attached female plug (IEC 320 / C13 or IEC 320 / C19) with respect to the applicable regulations in your country.
  • Page 8 EMC / Maintenance / ESD • Use a system grounding concept that satisfies the safety requirements (class I equipment must be connected with a protective ground conduc- tor) and that also takes into consideration the EMC require ments. When deciding between radial, surface, or combined grounding, the advantages and disadvantages should be carefully evaluated in each case.
  • Page 9 ESD / Repair • When performing a repair by replacing complete assemblies, the removed assembly must be sent back to the supplier in the same packing material in which the replacement assembly was shipped. If this should not be the case, any claim for a possible refund will be null and void.
  • Page 10 Repair / Disposal SMD Components Studer has no commercially available SMD components in stock for ser- vice purposes. For repair, the corresponding devices have to be purchased locally. The specifications of special components can be found in the service manual.
  • Page 11 Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Also refer to relevant information in this manual. CE Declaration of Conformity Studer Professional Audio GmbH, CH-8105 Regensdorf, declare under our sole responsibility that the product Studer OnAir 3000, Digital Mixing System (starting with serial no. 1001),...
  • Page 12 Beyond these specifications, possible problems are described below. Ambient Temperature Units and systems by Studer are generally designed for an ambient tempera- ture range (i.e. temperature of the incoming air) of +5 °C to +40 °C. When rack mounting the units, the intended air flow and herewith adequate cooling must be provided.
  • Page 13 Appendix evaporation (sublimation) may be expected; otherwise the system must be heated and dried while switched off. A system without visible internal formation of ice or condensation should be heated up with its own heat dissipation, as homogeneously (and subsequently as slow) as possible;...
  • Page 14 Appendix Appendix 2: Mains Connector Strain Relief For anchoring connectors without a mechanical lock (e.g. IEC mains connec- tors), we recommend the following arrangement: Procedure: The cable clamp shipped with your unit is auto-adhesive. For mounting please follow the rules below: •...
  • Page 15 License Programs of Studer The following Terms and Conditions grant the right to use all programs of Studer that are part of the System and/or its options at the time of its delivery to the Customer, as well as the installation software on the original data disk and the accompanying documentation (“License Material”).
  • Page 16 Reverse engineering is only permitted with the express consent of Studer. The consent of Studer can be obtained but is not limited to the case in which the interface software can not be provided by Studer. In any case Studer has to be informed immediately upon complete or partial reverse engineering.
  • Page 17 OnAir 3000 Digital Mixing Console WIRING – IMPORTANT The OnAir 3000 RS422 and Ethernet wiring must comply with the following requirements: Cable Type: Cat 5e, with shielded connectors on both ends Cable Dimensions Max. Length Max. Length Min. Max. Length for Motor Min.
  • Page 18 OnAir 3000 Digital Mixing Console USB MEMORY DEVICE – IMPORTANT A memory device connected to an USB socket must not be unplugged while its indicator LED is illuminated or flashing. Important Date printed: 28.02.11...
  • Page 19 Configurations C5 and C6 only SP SRC MON to L / MON 18.02.02 HB 19.04.02 HB 07.02.03 HB 12.02.05 HB MONO CR DJ HP OnAir 3000 CR SP SOURCE 0.81 16.08.05 HB CR SP SRC MONO 21.07.06 SoG 0.82 AUDIO SP SRC 4.12.06 SoG...
  • Page 20 MODE CR MON MON to L CR MON/ 18.02.02 HB 19.04.02 HB 07.02.03 HB 12.02.05 HB LSP SRC 5.1 / OnAir 3000 MONO CR DJ HP STEREO 16.08.05 HB CR SP SOURCE MONO 0.81 CR SP SRC 5.1 / MONO STEREO 0.82...
  • Page 21 Date printed: 28.02.11...
  • Page 22 Date printed: 28.02.11...
  • Page 23 Desk Modules Remarks Assembly No. Main Screen Module A943.041000 Controller CPU PCB A943.042900 Controller Front PCB A943.041220 Channel Screen Module A943.056200 Channel Screen Module w. DVI input A943.056400 Channel Screen Module w. DVI in + LBP8 A943.056600 Controller CPU PCB (see Main Screen Module) A943.042900 6-Fader Module (LED)
  • Page 24 Date printed: 28.02.11...
  • Page 25 Main Screen Module A943.056000 DIGITAL MIXING CONSOLE Consists of: Controller CPU PCB A943.042900 Controller Front PCB A943.041220 Touch Module C073.010167 TFT Module C073.010181 Inverter for Backlight C073.010182 CF Memory Card C089.200307 ETX Board 600 MHz C089.201184 DDR RAM 256 MB C050.631657 Date printed: 28.02.11...
  • Page 26 Channel Screen Module A943.056200 Channel Screen Module w. DVI Input A943.056400 Channel Screen Module w. DVI Input & LBP8 A943.056600 Consists of: Controller CPU PCB A943.042900 Touch Module C073.010167 TFT Module C073.010181 Inverter for Backlight C073.010182 CF Memory Card C089.200307 ETX Board 600 MHz C089.201184 Controller CPU PCB...
  • Page 27 Date printed: 28.02.11...
  • Page 28 Date printed: 28.02.11...
  • Page 29 Date printed: 28.02.11...
  • Page 30 Date printed: 28.02.11...
  • Page 31 Date printed: 28.02.11...
  • Page 32 2-10 Date printed: 28.02.11...
  • Page 33 OnAir 3000 Digital Mixing Console Controller CPU PCB A943.042900 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description BAT1 C089.012703 BATTERY HOLDER 20MM PCB MTG, C050.608001 LL4448 DSL LL4448 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.609412...
  • Page 34 OnAir 3000 Digital Mixing Console Controller CPU PCB A943.042900 Page: 2 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C057.611330 RES SM 33R 1% 0.1W 0603 R148 C057.611151 RES SM 150R 1% 0.1W 0603 C057.611103...
  • Page 35 2-13 Date printed: 28.02.11...
  • Page 36 2-14 Date printed: 28.02.11...
  • Page 37 2-15 Date printed: 28.02.11...
  • Page 38 2-16 Date printed: 28.02.11...
  • Page 39 OnAir 3000 Digital Mixing Console Controller Front PCB A943.041220 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.600001 BC847 TRS BC847B NPN C059.603337...
  • Page 40 OnAir 3000 Digital Mixing Console Controller Front PCB A943.041220 Page: 2 of 2 Rev RefDes Order no. Value Description C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 C057.601102...
  • Page 41 6-Fader Module A943.042082 6-Fader Module DR A943.042382 Consists of: Fader Front PCB A943.042181 Fader Control PCB A943.042222 Module Firmware S943.091320 Module Firmware DR S943.092320 6 Faders* 100 mm 10 k lin. A960.003500 *If Alps faders are replaced by P&G faders (A960.003500), an additional connecting cable is required per fader: A943.042093 Modulo...
  • Page 42 2-20 Date printed: 28.02.11...
  • Page 43 2-21 Date printed: 28.02.11...
  • Page 44 2-22 Date printed: 28.02.11...
  • Page 45 2-23 Date printed: 28.02.11...
  • Page 46 2-24 Date printed: 28.02.11...
  • Page 47 2-25 Date printed: 28.02.11...
  • Page 48 2-26 Date printed: 28.02.11...
  • Page 49 2-27 Date printed: 28.02.11...
  • Page 50 OnAir 3000 Digital Mixing Console 6-Fader Front PCB A943.042181 Page: 1 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.680069...
  • Page 51 OnAir 3000 Digital Mixing Console 6-Fader Front PCB A943.042181 Page: 2 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description DL11 C050.609402 LED YELLOW CLEAR TOP SMD DL90 C050.609401 LED RED CLEAR TOP SMD DL12 C050.609402...
  • Page 52 OnAir 3000 Digital Mixing Console 6-Fader Front PCB A943.042181 Page: 3 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C050.600050 BC817 TRS BC817-25 NPN C057.601271 RES SM 270R 1% 0.25W MINIMELF 50PPM 020 C050.601101...
  • Page 53 OnAir 3000 Digital Mixing Console 6-Fader Front PCB A943.042181 Page: 4 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R135 C057.601681 RES SM 680R 1% 0.25W MINIMELF 50PPM 020 R214 C057.601471 RES SM 470R 1% 0.25W MINIMELF 50PPM 020 R136 C057.601471...
  • Page 54 OnAir 3000 Digital Mixing Console 6-Fader Front PCB A943.042181 Page: 5 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R293 C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 R294 C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 R295 C057.601102...
  • Page 55 2-33 Date printed: 28.02.11...
  • Page 56 2-34 Date printed: 28.02.11...
  • Page 57 2-35 Date printed: 28.02.11...
  • Page 58 2-36 Date printed: 28.02.11...
  • Page 59 2-37 Date printed: 28.02.11...
  • Page 60 2-38 Date printed: 28.02.11...
  • Page 61 OnAir 3000 Digital Mixing Console Fader Control PCB A943.042222 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.680067 CAP SM ELC 22UF 16V 85°C C059.603337...
  • Page 62 OnAir 3000 Digital Mixing Console Fader Control PCB A943.042222 Page: 2 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C057.601101 RES SM 100R 1% 0.25W MINIMELF 50PPM 020 C057.601103 RES SM 10K 1% 0.25W MINIMELF 50PPM 0204 C057.601560...
  • Page 63 6-Fader Module, OLED, w. Motor Faders A943.061000 6-Fader Module, OLED A943.061500 Consists of: Fader Front PCB A943.061122 Fader Control PCB (motor fader version) A943.061223 Fader Control PCB (non-motor fader version) A943.061322 6 Motor Faders 100 mm 10 k lin. A947.004401 6 Faders 100 mm 10 k lin.
  • Page 64 2-42 Date printed: 28.02.11...
  • Page 65 2-43 Date printed: 28.02.11...
  • Page 66 2-44 Date printed: 28.02.11...
  • Page 67 2-45 Date printed: 28.02.11...
  • Page 68 2-46 Date printed: 28.02.11...
  • Page 69 2-47 Date printed: 28.02.11...
  • Page 70 2-48 Date printed: 28.02.11...
  • Page 71 2-49 Date printed: 28.02.11...
  • Page 72 2-50 Date printed: 28.02.11...
  • Page 73 OnAir 3000 Digital Mixing Console 6-Fader OLED Front PCB A943.061121 Page: 1 of 4 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603906...
  • Page 74 OnAir 3000 Digital Mixing Console 6-Fader OLED Front PCB A943.061121 Page: 2 of 4 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C050.608001 LL4448 DSL LL4448 DL31 C050.609402 LED YELLOW CLEAR TOP SMD C050.608001 LL4448 DSL LL4448 DL32 C050.609401...
  • Page 75 OnAir 3000 Digital Mixing Console 6-Fader OLED Front PCB A943.061121 Page: 3 of 4 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description DL110 C050.609401 LED RED CLEAR TOP SMD C057.611332 RES SM 3K3 1% 0.1W 0603 DL111 C050.609402...
  • Page 76 OnAir 3000 Digital Mixing Console 6-Fader OLED Front PCB A943.061121 Page: 4 of 4 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C057.611472 RES SM 4K7 1% 0.1W 0603 R168 C057.611151 RES SM 150R 1% 0.1W 0603 C057.611104...
  • Page 77 2-55 Date printed: 28.02.11...
  • Page 78 2-56 Date printed: 28.02.11...
  • Page 79 2-57 Date printed: 28.02.11...
  • Page 80 2-58 Date printed: 28.02.11...
  • Page 81 2-59 Date printed: 28.02.11...
  • Page 82 2-60 Date printed: 28.02.11...
  • Page 83 2-61 Date printed: 28.02.11...
  • Page 84 2-62 Date printed: 28.02.11...
  • Page 85 2-63 Date printed: 28.02.11...
  • Page 86 2-64 Date printed: 28.02.11...
  • Page 87 2-65 Date printed: 28.02.11...
  • Page 88 2-66 Date printed: 28.02.11...
  • Page 89 OnAir 3000 Digital Mixing Console Fader OLED Control PCB A943.061223 Page: 1 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603906...
  • Page 90 OnAir 3000 Digital Mixing Console Fader OLED Control PCB A943.061223 Page: 2 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C161 C059.602373 CAP SM CER 1.0NF 5% 50V NPO 0805 C050.608001 LL4448 DSL LL4448 C162 C059.602373...
  • Page 91 OnAir 3000 Digital Mixing Console Fader OLED Control PCB A943.061223 Page: 3 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C054.145634 1 Micromatch_14 CON 14WY PCB SKT MICRO-MATCH C057.611100 RES SM 10R 1% 0.1W 0603 C054.145634...
  • Page 92 OnAir 3000 Digital Mixing Console Fader OLED Control PCB A943.061223 Page: 4 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R111 C057.611102 RES SM 1K 1% 0.1W 0603 R190 C057.698302 0.2A FUSE POLYSWITCH 0.2A 24V SM /!\ R112 C057.611102...
  • Page 93 OnAir 3000 Digital Mixing Console Fader OLED Control PCB A943.061223 Page: 5 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R269 C057.611104 100k RES SM 100K 1% 0.1W 0603 R270 C057.611102 RES SM 1K 1% 0.1W 0603 R271 C057.611104...
  • Page 94 2-72 Date printed: 28.02.11...
  • Page 95 OnAir 3000 Digital Mixing Console Fader OLED Control PCB, partial A943.061322 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C182 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603906...
  • Page 96 OnAir 3000 Digital Mixing Console Fader OLED Control PCB, partial A943.061322 Page: 2 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C054.600407 WTB7 CON 7WAY SM 2.0MM VER WIRE TO PCB R303 C057.691000 RES SM 0R 1% 0.1W 0603...
  • Page 97 3-Fader Module A943.046082 3-Fader Module DR A943.046382 Consists of: Fader Front PCB A943.046181 Fader Control PCB A943.042222 Module Firmware S943.091820 Module Firmware DR S943.092420 6 Faders* 100 mm 10 k lin. A960.003500 *If Alps faders are replaced by P&G faders (A960.003500), an additional connecting cable is required per fader: A943.042093 Modulo...
  • Page 98 2-76 Date printed: 28.02.11...
  • Page 99 2-77 Date printed: 28.02.11...
  • Page 100 2-78 Date printed: 28.02.11...
  • Page 101 2-79 Date printed: 28.02.11...
  • Page 102 2-80 Date printed: 28.02.11...
  • Page 103 2-81 Date printed: 28.02.11...
  • Page 104 2-82 Date printed: 28.02.11...
  • Page 105 OnAir 3000 Digital Mixing Console 3-Fader Front PCB A943.046181 Page: 1 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.680069 CAP SM ELC 47UF 16V 85°C C050.608001 LL4448 DSL LL4448 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.608001...
  • Page 106 OnAir 3000 Digital Mixing Console 3-Fader Front PCB A943.046181 Page: 2 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description IC26 C050.621595 74HC595 IC MC74HC595A 8BIT SI/SO/PO S/REGTR C057.601332 RES SM 3K3 1% 0.25W MINIMELF 50PPM 0204 IC27 C050.621595...
  • Page 107 OnAir 3000 Digital Mixing Console 3-Fader Front PCB A943.046181 Page: 3 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R124 C057.601331 RES SM 330R 1% 0.25W MINIMELF 50PPM 020 R125 C057.601331 RES SM 330R 1% 0.25W MINIMELF 50PPM 020 R126 C057.601331...
  • Page 108 2-86 Date printed: 28.02.11...
  • Page 109 Fader Assign Module A943.042500 Consists of: Fader Assign Front PCB A943.042620 Assign Control PCB A943.042721 Module Firmware S943.091520 Modulo Case A943.042514 accessories: 2 x Mounting Bracket A943.042507 4 x Screw C021.512354 2-87 Date printed: 28.02.11...
  • Page 110 2-88 Date printed: 28.02.11...
  • Page 111 2-89 Date printed: 28.02.11...
  • Page 112 2-90 Date printed: 28.02.11...
  • Page 113 2-91 Date printed: 28.02.11...
  • Page 114 2-92 Date printed: 28.02.11...
  • Page 115 OnAir 3000 Digital Mixing Console Fader Assign Front PCB A943.042620 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 DL20 C050.609402 LED YELLOW CLEAR TOP SMD C059.603337...
  • Page 116 OnAir 3000 Digital Mixing Console Fader Assign Front PCB A943.042620 Page: 2 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C057.601103 RES SM 10K 1% 0.25W MINIMELF 50PPM 0204 C057.601103 RES SM 10K 1% 0.25W MINIMELF 50PPM 0204 C057.601103...
  • Page 117 2-95 Date printed: 28.02.11...
  • Page 118 2-96 Date printed: 28.02.11...
  • Page 119 2-97 Date printed: 28.02.11...
  • Page 120 OnAir 3000 Digital Mixing Console Assign Control PCB A943.042721 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.610201 TL62 JFET OP-AMP C059.603337 100n...
  • Page 121 OnAir 3000 Digital Mixing Console Assign Control PCB A943.042721 Page: 2 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C057.601392 RES SM 3K9 1% 0.25W MINIMELF 50PPM 0204 C057.601392 RES SM 3K9 1% 0.25W MINIMELF 50PPM 0204 C057.601472...
  • Page 122 2-100 Date printed: 28.02.11...
  • Page 123 Rotary Module A943.043000 Consists of: Rotary Front PCB A943.043100 Fader Control PCB A943.042222 Module Firmware S943.091420 Modulo Case A943.043014 accessories: 2 x Mounting Bracket A943.042007 4 x Screw C021.512354 2-101 Date printed: 28.02.11...
  • Page 124 2-102 Date printed: 28.02.11...
  • Page 125 2-103 Date printed: 28.02.11...
  • Page 126 2-104 Date printed: 28.02.11...
  • Page 127 2-105 Date printed: 28.02.11...
  • Page 128 2-106 Date printed: 28.02.11...
  • Page 129 2-107 Date printed: 28.02.11...
  • Page 130 2-108 Date printed: 28.02.11...
  • Page 131 2-109 Date printed: 28.02.11...
  • Page 132 2-110 Date printed: 28.02.11...
  • Page 133 2-111 Date printed: 28.02.11...
  • Page 134 2-112 Date printed: 28.02.11...
  • Page 135 OnAir 3000 Digital Mixing Console Rotary Front PCB A943.043100 Page: 1 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603321 CAP SM CER 4.7NF 10% 50VX7R 0805 C059.603337...
  • Page 136 OnAir 3000 Digital Mixing Console Rotary Front PCB A943.043100 Page: 2 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C050.608001 LL4448 DSL LL4448 DL25 C050.609402 LED YELLOW CLEAR TOP SMD C050.608001 LL4448 DSL LL4448 DL26 C050.609402...
  • Page 137 OnAir 3000 Digital Mixing Console Rotary Front PCB A943.043100 Page: 3 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description IC32 C050.621595 74HC595 IC MC74HC595A 8BIT SI/SO/PO S/REGTR C050.600050 BC817 TRS BC817-25 NPN IC33 C050.621014...
  • Page 138 OnAir 3000 Digital Mixing Console Rotary Front PCB A943.043100 Page: 4 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description Q129 C050.600050 BC817 TRS BC817-25 NPN C057.601681 RES SM 680R 1% 0.25W MINIMELF 50PPM 020 Q130 C050.600050...
  • Page 139 OnAir 3000 Digital Mixing Console Rotary Front PCB A943.043100 Page: 5 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R145 C057.601271 RES SM 270R 1% 0.25W MINIMELF 50PPM 020 R224 C057.601104 100k RES SM 100K 1% 0.25W MINIMELF 50PPM 020 R146 C057.601271...
  • Page 140 OnAir 3000 Digital Mixing Console Rotary Front PCB A943.043100 Page: 6 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R303 C057.601151 RES SM 150R 1% 0.25W MINIMELF 50PPM 020 R382 C057.601271 RES SM 270R 1% 0.25W MINIMELF 50PPM 020 R304 C057.601681...
  • Page 141 OnAir 3000 Digital Mixing Console Rotary Front PCB A943.043100 Page: 7 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R461 C057.601563 RES SM 56K 1% 0.25W MINIMELF 50PPM 0204 R462 C057.601684 680k RES SM 680K 1% 0.25W MINIMELF 50PPM 020 R463 C057.601152...
  • Page 142 2-120 Date printed: 28.02.11...
  • Page 143 Rotary Assign Module A943.043500 Consists of: Rotary Assign Front PCB A943.043600 Assign Control PCB A943.042721 Module Firmware S943.091620 Modulo Case A943.043504 accessories: 2 x Mounting Bracket A943.042507 4 x Screw C021.512354 2-121 Date printed: 28.02.11...
  • Page 144 2-122 Date printed: 28.02.11...
  • Page 145 2-123 Date printed: 28.02.11...
  • Page 146 2-124 Date printed: 28.02.11...
  • Page 147 2-125 Date printed: 28.02.11...
  • Page 148 OnAir 3000 Digital Mixing Console Rotary Assign Front PCB A943.043600 Page: 1 of 1 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C057.601221 RES SM 220R 1% 0.25W MINIMELF 50PPM 020 C059.603337...
  • Page 149 Monitoring Module CR/Studio1, Modulo version A943.044081 Monitoring Module CR/Studio1, FixFrame/Table Top version A943.044581 Modulo version Monitoring Front PCB A943.044181 consists of: Monitoring Audio PCB A943.044225 Module Firmware S943.091720 Modulo Case A943.044014 2 x Mounting Bracket A943.042007 4 x Screw C021.512354 Gooseneck Microphone A942.021800 Blank plug (replaces gooseneck microphone)
  • Page 150 Monitoring Module CR/Studio1, Modulo version A943.044081 Monitoring Module CR/Studio1, FixFrame/Table Top version A943.044581 Modulo version Monitoring Front PCB A943.044181 consists of: Monitoring Audio PCB A943.044225 Module Firmware S943.091720 Modulo Case A943.044014 2 x Mounting Bracket A943.042007 4 x Screw C021.512354 Gooseneck Microphone A942.021800 Blank plug (replaces gooseneck microphone)
  • Page 151 Monitoring Module Studio2/3, Modulo version A943.044781 Monitoring Module Studio2/3, FixFrame/Table Top version A943.044481 Modulo version Monitoring Front PCB A943.044181 consists of: Monitoring Audio PCB A943.044824 Module Firmware S943.091720 Modulo Case A943.044014 2 x Mounting Bracket A943.042007 4 x Screw C021.512354 Gooseneck Microphone A942.021800 Blank plug (replaces gooseneck microphone)
  • Page 152 Monitoring Module DR, Modulo version A943.048081 Consists of: Monitoring Front PCB A943.048181 Monitoring Audio PCB A943.044224 Speaker Swap PCB A943.048200 Module Firmware S943.092220 Modulo Case A943.048002 2 x Mounting Bracket A943.042007 4 x Screw C021.512354 Gooseneck Microphone A942.021800 Blank plug (replaces gooseneck microphone) C031.030110 2-130 Date printed: 28.02.11...
  • Page 153 Monitoring/Timer Module, Table Top version A943.048382 Consists of: Monitoring/Timer Front PCB A943.048481 Monitoring Audio PCB A943.044824 A/B Switch PCB A943.048700 Module Firmware S943.092220 Table Top Case A943.048302 Side Panel, left A943.048303 Side Panel, right A943.048304 Gooseneck Microphone A942.021800 Blank plug (replaces gooseneck microphone) C031.030110 2-131 Date printed: 28.02.11...
  • Page 154 Monitor Output Wiring 2-132 Date printed: 28.02.11...
  • Page 155 2-133 Date printed: 28.02.11...
  • Page 156 2-134 Date printed: 28.02.11...
  • Page 157 2-135 Date printed: 28.02.11...
  • Page 158 2-136 Date printed: 28.02.11...
  • Page 159 2-137 Date printed: 28.02.11...
  • Page 160 2-138 Date printed: 28.02.11...
  • Page 161 OnAir 3000 Digital Mixing Console Monitoring Front PCB A943.044181 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.608001 LL4448 DSL LL4448 C059.680069 CAP SM ELC 47UF 16V 85°C C050.608001...
  • Page 162 OnAir 3000 Digital Mixing Console Monitoring Front PCB A943.044181 Page: 2 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description IC14 C050.621595 74HC595 IC MC74HC595A 8BIT SI/SO/PO S/REGTR C057.611102 RES SM 1K 1% 0.1W 0603 IC15 C050.621595...
  • Page 163 2-141 Date printed: 28.02.11...
  • Page 164 2-142 Date printed: 28.02.11...
  • Page 165 2-143 Date printed: 28.02.11...
  • Page 166 2-144 Date printed: 28.02.11...
  • Page 167 2-145 Date printed: 28.02.11...
  • Page 168 2-146 Date printed: 28.02.11...
  • Page 169 OnAir 3000 Digital Mixing Console Monitoring Front PCB DR A943.048181 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.608001 LL4448 DSL LL4448 C059.680069 CAP SM ELC 47UF 16V 85°C...
  • Page 170 OnAir 3000 Digital Mixing Console Monitoring Front PCB DR A943.048181 Page: 2 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C050.621165 74HC165 IC MC74HC165A 8BIT PI/SOS/REGTR C057.611221 RES SM 220R 1% 0.1W 0603 C050.621595...
  • Page 171 2-149 Date printed: 28.02.11...
  • Page 172 2-150 Date printed: 28.02.11...
  • Page 173 2-151 Date printed: 28.02.11...
  • Page 174 2-152 Date printed: 28.02.11...
  • Page 175 2-153 Date printed: 28.02.11...
  • Page 176 OnAir 3000 Digital Mixing Console Monitoring/Timer Front PCB A943.048481 Page: 1 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.680069 CAP SM ELC 47UF 16V 85°C C050.608001 LL4448 DSL LL4448 C059.680069 CAP SM ELC 47UF 16V 85°C C050.608001...
  • Page 177 OnAir 3000 Digital Mixing Console Monitoring/Timer Front PCB A943.048481 Page: 2 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description DL46 C050.609402 LED YELLOW CLEAR TOP SMD C057.611271 RES SM 270R 1% 0.1W 0603 DL47 C050.609402...
  • Page 178 OnAir 3000 Digital Mixing Console Monitoring/Timer Front PCB A943.048481 Page: 3 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C057.611271 RES SM 270R 1% 0.1W 0603 C057.611471 RES SM 470R 1% 0.1W 0603 C057.611102 RES SM 1K 1% 0.1W 0603...
  • Page 179 2-157 Date printed: 28.02.11...
  • Page 180 2-158 Date printed: 28.02.11...
  • Page 181 2-159 Date printed: 28.02.11...
  • Page 182 2-160 Date printed: 28.02.11...
  • Page 183 2-161 Date printed: 28.02.11...
  • Page 184 2-162 Date printed: 28.02.11...
  • Page 185 2-163 Date printed: 28.02.11...
  • Page 186 2-164 Date printed: 28.02.11...
  • Page 187 OnAir 3000 Digital Mixing Console Monitoring Audio Control PCB A943.044225 Page: 1 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.680109 CAP SM ELC 10UF 35V 85°C C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603337...
  • Page 188 OnAir 3000 Digital Mixing Console Monitoring Audio Control PCB A943.044225 Page: 2 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C162 C059.602373 CAP SM CER 1.0NF 5% 50V NPO 0805 IC10 C050.623245 74HCT245 IC 74HCT245 OCTAL BUS TCVR 3ST C163 C059.680107...
  • Page 189 OnAir 3000 Digital Mixing Console Monitoring Audio Control PCB A943.044225 Page: 3 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C050.601050 BC807 TRS BC807-25 PNP C057.601222 RES SM 2K2 1% 0.25W MINIMELF 50PPM 0204 C050.601050...
  • Page 190 OnAir 3000 Digital Mixing Console Monitoring Audio Control PCB A943.044225 Page: 4 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R152 C057.601222 RES SM 2K2 1% 0.25W MINIMELF 50PPM 0204 R232 C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 R154 C057.601000...
  • Page 191 OnAir 3000 Digital Mixing Console Monitoring Audio Control PCB A943.044225 Page: 5 of 5 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R313 C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 R314 C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 C055.600201...
  • Page 192 OnAir 3000 Digital Mixing Console Monitoring Audio Control PCB FixFrame A943.044824 Page: 1 of 5 (Diagram/Layout: see A943.044225) Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.680109 CAP SM ELC 10UF 35V 85°C C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603337...
  • Page 193 OnAir 3000 Digital Mixing Console Monitoring Audio Control PCB FixFrame A943.044824 Page: 2 of 5 (Diagram/Layout: see A943.044225) Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C162 C059.602373 CAP SM CER 1.0NF 5% 50V NPO 0805 IC10 C050.623245...
  • Page 194 OnAir 3000 Digital Mixing Console Monitoring Audio Control PCB FixFrame A943.044824 Page: 3 of 5 (Diagram/Layout: see A943.044225) Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C050.601050 BC807 TRS BC807-25 PNP C057.601222 RES SM 2K2 1% 0.25W MINIMELF 50PPM 0204 C050.601050...
  • Page 195 OnAir 3000 Digital Mixing Console Monitoring Audio Control PCB FixFrame A943.044824 Page: 4 of 5 (Diagram/Layout: see A943.044225) Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R152 C057.601222 RES SM 2K2 1% 0.25W MINIMELF 50PPM 0204 R232 C057.601102...
  • Page 196 OnAir 3000 Digital Mixing Console Monitoring Audio Control PCB FixFrame A943.044824 Page: 5 of 5 (Diagram/Layout: see A943.044225) Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R313 C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 R314 C057.601102...
  • Page 197 2-175 Date printed: 28.02.11...
  • Page 198 OnAir 3000 Digital Mixing Console Speaker Swap PCB A943.048200 Page: 1 of 1 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C050.608001 LL4448 DSL LL4448 C056.040198 RLY SM 2A 5VDC 2PCO A943.048211 PCB LSP SWAPPING BOARD OA3000 A943.048210...
  • Page 199 2-177 Date printed: 28.02.11...
  • Page 200 OnAir 3000 Digital Mixing Console A/B Switch PCB A943.048700 Page: 1 of 1 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C057.601104 100k RES SM 100K 1% 0.25W MINIMELF 50PPM 020 C059.603337...
  • Page 201 2-179 Date printed: 28.02.11...
  • Page 202 SCRW M3X10MM HEX/HD S/LOCK SZP SKT A943.044902 IC MTG.BRACKET -TOSLINK PCB C054.010021 Jumper JMP 2WY 0.1" GLD HONDA A943.044993 Wiring List Monitor Unit for OnAir 3000 C054.120702 EI_2 CON 2WY HDR 0.1" LATCH ML C057.601392 RES SM 3K9 1% 0.25W MINIMELF 50PPM 0204 C057.601153 RES SM 15K 1% 0.25W MINIMELF 50PPM 0204...
  • Page 203 5.1 Surround Control Module A934.043700 Consists of: Surround Control Front PCB A943.043820 Assign Control PCB A943.042721 Module Firmware S943.092820 Modulo Case A943.043504 accessories: 2 x Mounting Bracket A943.042707 4 x Screw C021.512354 2-181 Date printed: 28.02.11...
  • Page 204 2-182 Date printed: 28.02.11...
  • Page 205 2-183 Date printed: 28.02.11...
  • Page 206 2-184 Date printed: 28.02.11...
  • Page 207 Component Side 2-185 Date printed: 28.02.11...
  • Page 208 Solder Side 2-186 Date printed: 28.02.11...
  • Page 209 OnAir 3000 Digital Mixing Console Surround Control Front PCB A943.043820 Page: 1 of 1 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.680027 CAP SM ELC 47UF 6.3V 85°C C057.601103 RES SM 10K 1% 0.25W MINIMELF 50PPM 0204 C059.680067...
  • Page 210 2-188 Date printed: 28.02.11...
  • Page 211 Editor Module A943.046582 Editor Module DR A943.046782 Consists of: Fader Front Editor PCB A943.046681 Fader Control PCB A943.042222 Module Firmware S943.092720 Module Firmware DR S943.090120 3 Faders* 100 mm 10 k lin. A960.003500 *If Alps faders are replaced by P&G faders (A960.003500), an additional connecting cable is required per fader: A943.042093 Modulo...
  • Page 212 2-190 Date printed: 28.02.11...
  • Page 213 2-191 Date printed: 28.02.11...
  • Page 214 2-192 Date printed: 28.02.11...
  • Page 215 2-193 Date printed: 28.02.11...
  • Page 216 2-194 Date printed: 28.02.11...
  • Page 217 2-195 Date printed: 28.02.11...
  • Page 218 2-196 Date printed: 28.02.11...
  • Page 219 OnAir 3000 Digital Mixing Console Editor Front PCB A943.046681 Page: 1 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.608001 LL4448 DSL LL4448 C059.680069 CAP SM ELC 47UF 16V 85°C C050.608001...
  • Page 220 OnAir 3000 Digital Mixing Console Editor Front PCB A943.046681 Page: 2 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description DL44 C050.609402 LED YELLOW CLEAR TOP SMD C050.601101 FMMT717 TRS FMMT717 PNP DL45 C050.609402 LED YELLOW CLEAR TOP SMD C050.600050...
  • Page 221 OnAir 3000 Digital Mixing Console Editor Front PCB A943.046681 Page: 3 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C057.601681 RES SM 680R 1% 0.25W MINIMELF 50PPM 020 R152 C057.601221 RES SM 220R 1% 0.25W MINIMELF 50PPM 020 C057.601681...
  • Page 222 2-200 Date printed: 28.02.11...
  • Page 223 XL Module A943.049000 Consists of: XL Front PCB A943.049120 Assign Control PCB A943.042721 Module Firmware S943.092520 Modulo Case A943.049002 accessories: 2 x Mounting Bracket A943.042507 4 x Screw C021.512354 2-201 Date printed: 28.02.11...
  • Page 224 2-202 Date printed: 28.02.11...
  • Page 225 2-203 Date printed: 28.02.11...
  • Page 226 2-204 Date printed: 28.02.11...
  • Page 227 2-205 Date printed: 28.02.11...
  • Page 228 2-206 Date printed: 28.02.11...
  • Page 229 OnAir 3000 Digital Mixing Console XL Front PCB A943.049120 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.602237 CAP SM CER 33PF 5% 50V 0603 C050.621904 74HCU04 IC 74HCU04 HEX INVTR UNBUFFD CMOS C059.680067...
  • Page 230 OnAir 3000 Digital Mixing Console XL Front PCB A943.049120 Page: 2 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 C057.601102 RES SM 1K 1% 0.25W MINIMELF 50PPM 0204 C057.601102...
  • Page 231 2-209 Date printed: 28.02.11...
  • Page 232 OnAir 3000 Digital Mixing Console Headphone PCB A943.049383 Page: 1 of 1 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.600050 BC817 TRS BC817-25 NPN C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.601050...
  • Page 233 2-211 Date printed: 28.02.11...
  • Page 234 OnAir 3000 Digital Mixing Console Mic Key Front PCB A943.049500 Page: 1 of 1 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.680133...
  • Page 235 OnAir 3000 Digital Mixing Console Start Button Front PCB A943.049700 Page: 1 of 1 (Diagram/Layout: see A943.049500) Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.680133...
  • Page 236 2-214 Date printed: 28.02.11...
  • Page 237 2-215 Date printed: 28.02.11...
  • Page 238 OnAir 3000 Digital Mixing Console Carts Front PCB A943.049900 Page: 1 of 1 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C057.601271 RES SM 270R 1% 0.25W MINIMELF 50PPM 020 C059.603337...
  • Page 239 2-217 Date printed: 28.02.11...
  • Page 240 2-218 Date printed: 28.02.11...
  • Page 241 2-219 Date printed: 28.02.11...
  • Page 242 2-220 Date printed: 28.02.11...
  • Page 243 2-221 Date printed: 28.02.11...
  • Page 244 2-222 Date printed: 28.02.11...
  • Page 245 2-223 Date printed: 28.02.11...
  • Page 246 OnAir 3000 Digital Mixing Console Distribution Main PCB A943.045121 Page: 1 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.608001 LL4448 DSL LL4448 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.608001...
  • Page 247 OnAir 3000 Digital Mixing Console Distribution Main PCB A943.045121 Page: 2 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C054.201001 RJ45_8 SKT JACK RJ45 8WY R/A PCB/MNT C057.601183 RES SM 18K 1% 0.25W MINIMELF 50PPM 020 C054.201001...
  • Page 248 OnAir 3000 Digital Mixing Console Distribution Main PCB A943.045121 Page: 3 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R147 C057.691097 RES SM 10K 5% 0.1W 0603 R148 C057.691097 RES SM 10K 5% 0.1W 0603 R149 C057.691097...
  • Page 249 2-227 Date printed: 28.02.11...
  • Page 250 2-228 Date printed: 28.02.11...
  • Page 251 2-229 Date printed: 28.02.11...
  • Page 252 2-230 Date printed: 28.02.11...
  • Page 253 2-231 Date printed: 28.02.11...
  • Page 254 OnAir 3000 Digital Mixing Console Distribution Merger PCB A943.045221 Page: 1 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C050.608001 LL4448 DSL LL4448 C059.680113 CAP SM ELC 47UF 35V 85°C C050.608001...
  • Page 255 OnAir 3000 Digital Mixing Console Distribution Merger PCB A943.045221 Page: 2 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C028.212308 RIVT 2.5MMX6MM TUBE C057.601103 RES SM 10K 1% 0.25W MINIMELF 50PPM 0204 C054.201001 RJ45_8 SKT JACK RJ45 8WY R/A PCB/MNT C057.601103...
  • Page 256 OnAir 3000 Digital Mixing Console Distribution Merger PCB A943.045221 Page: 3 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R143 C057.691097 RES SM 10K 5% 0.1W 0603 R144 C057.691097 RES SM 10K 5% 0.1W 0603 R145 C057.691097...
  • Page 257 2-235 Date printed: 28.02.11...
  • Page 258 OnAir 3000 Digital Mixing Console Distribution LED PCB A943.045300 Page: 1 of 1 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C050.609413 LED YELLOW CLEAR TOP SMD C050.609413 LED YELLOW CLEAR TOP SMD C050.609413 LED YELLOW CLEAR TOP SMD C050.609413...
  • Page 261 Studer Professional Audio GmbH Althardstrasse 30 CH-8105 Regensdorf Compact SCore Technical Info...

  • Page 262: Table Of Contents

    STUDER Professional Audio GmbH Compact SCore Technical Info Contents Introduction ..............................4 Definitions and Acronyms .........................4 System Overview ............................4 Basics ................................4 Compact SCore System Architecture ......................4 Compact SCore, font/rear view .........................5 Compact SCore Cards..........................6 2.4.1 Compact SCore Host Card .........................6 2.4.2 Compact SCore DSP Card (Hybrid) ....................6...
  • Page 263 STUDER Professional Audio GmbH Compact SCore Technical Info Diagnostics – Core Test Suite (CTS) ......................15 Overview ..............................15 Components ............................15 5.2.1 Log Window............................ 15 5.2.2 Live Monitoring..........................15 5.2.3 Firmware Download ........................16 5.2.4 Single Test ............................16 5.2.5...

  • Page 264: Introduction

    STUDER Professional Audio GmbH Compact SCore Technical Info 1 Introduction 1.1 Definitions and Acronyms Board: A complete PCB with all components mounted Card: A board with its mechanical parts, ready for insertion in a system MIMD: Multiple Instructions Multiple Data...

  • Page 265: Compact Score, Font/Rear View

    STUDER Professional Audio GmbH Compact SCore Technical Info 2.3 Compact SCore, font/rear view A fully equipped frame is shown in the two pictures below. Please note that the inserted D21m cards represent an example of one possible configuration. 13.Feb.06 5/22...

  • Page 266: Compact Score Cards

    STUDER Professional Audio GmbH Compact SCore Technical Info 2.4 Compact SCore Cards The audio processing part of the Compact SCore (the core part) is based on the following components: 2.4.1 Compact SCore Host Card The Compact SCore Host Card (1.943.325) is the main controller of the system and hosts the mixing engine control software (e.g.

  • Page 267: Compact Score Audio Clock Card

    STUDER Professional Audio GmbH Compact SCore Technical Info The lower backplane connector provides power, AUX and I2C signals to the board whereas the upper connector incorporates the SUTDER high-speed inter-cluster communication fabric interface (TDM) as well as the audio clock signals. On the front 1 HD Link can be connected to the D21m subsystem or any external D21m frame and carries 96 channels IN and 96 channels OUT.

  • Page 268: Status Led Bar

    STUDER Professional Audio GmbH Compact SCore Technical Info 3 Status LED Bar 3.1 DSP Card Status/Load LEDs The meaning of the Status/Load LEDs is related to the firmware of the Compact SCore which is made out of two parts – the SH4-BIOS and the firmware package (SH4, DSP and FPGA run-time firmware) that is downloaded at boot-up.

  • Page 269: Idle State

    LEDs off – not used 3.1.2 PROCESSING State The PROCESSING state is started when the application (e.g. OnAir 3000 software) on the Host Card is initialized. Depending on that application this State is reached within 30 to 90 seconds after powering up the Core.

  • Page 270: Transition State

    STUDER Professional Audio GmbH Compact SCore Technical Info 3.1.3 TRANSITION State A transition from IDLE to PROCESSING always starts with all LEDs off followed by a sequence (bottom-up) indicating the loading of each firmware component. The transition from PROCESSING to IDLE happens when the firmware is reloaded or unloaded by the application on the Host Card.

  • Page 271: Test State

    Test 4 successfully passed Test 3 successfully passed Test 2 successfully passed Test 1 successfully passed If the top two LEDs should go on during normal operation the resulting LED pattern is for R&D internal meaning to Studer Professional Audio GmbH. 13.Feb.06 11/22...

  • Page 272: Host Card Status Leds

    The Host Card Status LEDs are controlled by the embedded controller during power-up of the Compact SCore. After the Operating System has successfully started and initialized the application (e.g. OnAir 3000) is taking over leadership of the Status LED bar.

  • Page 273: Hardware Configuration

    STUDER Professional Audio GmbH Compact SCore Technical Info 4 Hardware configuration 4.1 Card DIP Switches 4.1.1 Host Card DIP Switches DIP Switch # ON Function OFF Function External Com Port is RS232 External Com Port is RS422 LED bar shows POST messages...

  • Page 274: Dsp Slot Assembly Rule

    400 W power supply (1.943.303) must be used. 4.4 Active cooling Wherever the Compact SCore is placed in an environment where active cooling is possible the Studer 1U fan unit (1.940.597) or any equivalent active cooling unit must be mounted underneath the frame in order to guarantee the best quality for the customer.

  • Page 275: Diagnostics - Core Test Suite (Cts)

    STUDER Professional Audio GmbH Compact SCore Technical Info 5 Diagnostics – Core Test Suite (CTS) 5.1 Overview CTS is a software for testing the operatability of DSP cards. It provides a GUI to easily start/stop tests on the various processors on the DSP cards, download/change firmware and monitor voltages and temperatures.

  • Page 276: Firmware Download

    STUDER Professional Audio GmbH Compact SCore Technical Info 5.2.3 Firmware Download Firmware download is only possible to cards that were inserted at system start up time. Thus it is at system boot up time required to have a card inserted in each slot in which cards will be used (as test or mirror card). These cards must not be removed until the test software has started up und has finished the initial firmware download.

  • Page 277: Cts.ini

    STUDER Professional Audio GmbH Compact SCore Technical Info 5.3.1 cts.ini In the file Cts.ini an html-like syntax is used. There exist different areas in this file that configure different parts of the program. Each area is started by <AreaName> and ended by </AreaName>. At time of writing there exist three different areas.

  • Page 278: Test.ini

    STUDER Professional Audio GmbH Compact SCore Technical Info The third area starts with the tag <I2CBoundaries> and ends with </I2CBoundaries> respectively. In this area the user may specify boundaries for the voltages and temperatures read via the I2C-Interface (see chapter YY “Live Monitoring”).

  • Page 279: Results.txt

    STUDER Professional Audio GmbH Compact SCore Technical Info 5.3.3 results.txt This file contains the results of the very latest test, either single or batch test. Its contents may be viewed via the menu (“View -> Latest TestResults”). This file will be overwritten as soon as another test finishes. In order to preserve its content you should make a copy of it and store it under a different name.

  • Page 280: Datasheet Extract

    STUDER Professional Audio GmbH Compact SCore Technical Info 6 Datasheet extract 6.1 Specification Compact SCore Card Max. Power Consumption Host Card 25 W Hybrid DSP Card 12 W Audio Clock Card Time Sync Card 6.2 Block Diagrams 6.2.1 Host Card...

  • Page 281: Hybrid Dsp Card

    STUDER Professional Audio GmbH Compact SCore Technical Info 6.2.2 Hybrid DSP Card BIOS ADSP 21161N GPIO VDCA Controller ADSP 21161N Transparent Mode ADSP 6417751R Routing Routing HD IN BP240 21161N Table A Table B PCI Interface ADSP HD OUT 21161N 512 ch.

  • Page 282: Audio Clock Card, Clock Logic

    STUDER Professional Audio GmbH Compact SCore Technical Info 6.2.4 Audio Clock Card, Clock Logic 22/22 13.Feb.06...
  • Page 283 DSP Core – Processing Modules Remarks Assembly No. SCore DSP Card A943.032023 SCore Host Card A943.032585 SCore Audio Clock Card A943.033024 SCore Time Sync Card A943.034022 Date printed: 28.02.11...
  • Page 284 Date printed: 28.02.11...
  • Page 285 Date printed: 28.02.11...
  • Page 286 Date printed: 28.02.11...
  • Page 287 Date printed: 28.02.11...
  • Page 288 Date printed: 28.02.11...
  • Page 289 Date printed: 28.02.11...
  • Page 290 Date printed: 28.02.11...
  • Page 291 Date printed: 28.02.11...
  • Page 292 2-10 Date printed: 28.02.11...
  • Page 293 2-11 Date printed: 28.02.11...
  • Page 294 2-12 Date printed: 28.02.11...
  • Page 295 2-13 Date printed: 28.02.11...
  • Page 296 2-14 Date printed: 28.02.11...
  • Page 297 2-15 Date printed: 28.02.11...
  • Page 298 2-16 Date printed: 28.02.11...
  • Page 299 OnAir 3000 Digital Mixing Console SCore DSP Card A943.032023 Page: 1 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603902 100n CAP SM CER 100NF 20% 6.3V X5R 0402 C059.603902...
  • Page 300 OnAir 3000 Digital Mixing Console SCore DSP Card A943.032023 Page: 2 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C159 C059.603902 100n CAP SM CER 100NF 20% 6.3V X5R 0402 C238 C059.603901 CAP SM CER 10NF 10% 16V X7R 0402 C160 C059.603902...
  • Page 301 OnAir 3000 Digital Mixing Console SCore DSP Card A943.032023 Page: 3 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C323 C059.603901 CAP SM CER 10NF 10% 16V X7R 0402 IC19 S943.093021 M29W40B SW 320/321 SH4 BIOS C324 C059.603337...
  • Page 302 OnAir 3000 Digital Mixing Console SCore DSP Card A943.032023 Page: 4 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C057.691037 RES SM 33R 5% 0.1W 0603 C057.691097 RES SM 10K 5% 0.1W 0603 C057.691037 RES SM 33R 5% 0.1W 0603...
  • Page 303 OnAir 3000 Digital Mixing Console SCore DSP Card A943.032023 Page: 5 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R193 C057.691097 RES SM 10K 5% 0.1W 0603 R288 C057.691025 RES SM 10R 5% 0.1W 0603 R194 C057.691097...
  • Page 304 OnAir 3000 Digital Mixing Console SCore DSP Card A943.032023 Page: 6 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R377 C057.691073 RES SM 1K 5% 0.1W 0603 R459 C057.601392 RES SM 3K9 1% 0.25W MINIMELF 50PPM 0204 R378 C057.691025...
  • Page 305 OnAir 3000 Digital Mixing Console SCore DSP Card A943.032023 Page: 7 of 7 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R546 C057.601101 RES SM 100R 1% 0.25W MINIMELF 50PPM 020 R547 C057.691025 RES SM 10R 5% 0.1W 0603 R548 C057.691085...
  • Page 306 2-24 Date printed: 28.02.11...
  • Page 307 2-25 Date printed: 28.02.11...
  • Page 308 2-26 Date printed: 28.02.11...
  • Page 309 2-27 Date printed: 28.02.11...
  • Page 310 2-28 Date printed: 28.02.11...
  • Page 311 2-29 Date printed: 28.02.11...
  • Page 312 2-30 Date printed: 28.02.11...
  • Page 313 OnAir 3000 Digital Mixing Console SCore Host Card A943.032585 Page: 1 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C089.012204 CR2032 BATTERY 3V 190MAH LITHIUM COIN C059.603325 CAP SM CER 10NF 10% 50V X7R 0805 C059.603337...
  • Page 314 OnAir 3000 Digital Mixing Console SCore Host Card A943.032585 Page: 2 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C054.115122 ERMET_125 CON 125WY 2MMHM AB SKT R/A P\FIT C057.601271 RES SM 270R 1% 0.25W MINIMELF 50PPM 020 C054.145512...
  • Page 315 OnAir 3000 Digital Mixing Console SCore Host Card A943.032585 Page: 3 of 3 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description R187 C057.601000 RES SM 0R 1% 0.25W MINIMELF 50PPM 020 C089.011017 1.8432MHz XTAL 1.8432MHZ 50PPM 30PF HC49U R188 C057.601103...
  • Page 316 2-34 Date printed: 28.02.11...
  • Page 317 2-35 Date printed: 28.02.11...
  • Page 318 2-36 Date printed: 28.02.11...
  • Page 319 2-37 Date printed: 28.02.11...
  • Page 320 OnAir 3000 Digital Mixing Console SCore Audio Clock Card A943.033024 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603904 CAP SM CER 10UF 20% 6.3VX5R 0805 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603904...
  • Page 321 OnAir 3000 Digital Mixing Console SCore Audio Clock Card A943.033024 Page: 1 of 2 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603904 CAP SM CER 10UF 20% 6.3VX5R 0805 C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C059.603904...
  • Page 322 AES Sync In a AES Sync In b AES Sync Out 3b AES Sync Out 3a n.c. AES Sync In b AES Sync Out 2a AES Sync Out 2b AES Sync Out 1b AES Sync Out 1a n.c. 22.06.04 c-d21m sync distr A943.0330 Connector D21m Audio Clock Card...
  • Page 323 2-41 Date printed: 28.02.11...
  • Page 324 2-42 Date printed: 28.02.11...
  • Page 325 OnAir 3000 Digital Mixing Console SCore Time Sync Card A943.034022 Page: 1 of 1 Rev RefDes Order no. Value Description Rev RefDes Order no. Value Description C059.603337 100n CAP SM CER 100NF 10% 50VX5R 0805 C057.691121 100k RES SM 100K 5% 0.1W 0603 C059.603337...
  • Page 326 2-44 Date printed: 28.02.11...

  • Page 327: Operating Instructions

    Studer SCore Live (For Vista and OnAir 3000 Systems) Operating Instructions (February 2011, 7 Edition)
  • Page 328 Any changes or modifi cations not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Also refer to relevant information in this manual. CE Declaration of Conformity Studer Professional Audio GmbH, CH-8105 Regensdorf, declare under our sole responsibility that the product Studer SCore Live (from serial no.
  • Page 329 SCore Live CONTENTS General ....................................3 Utilization for the Purpose Intended ..........................3 First Steps ..................................3 1.2.1 Unpacking and Inspection ............................. 3 1.2.2 Installation ................................3 1.2.3 Adjustments, Repair, Cleaning ..........................5 Introduction ..................................6 Block Diagram ................................7 The Frame and its Cards ..............................
  • Page 330 SCore Live 2 SCore Live Date printed: 28.02.11...

  • Page 331: General

    Check the condition of the equipment for signs of shipping damage. If there should be any complaints you should immediately notify the forwarding agent and your nearest Studer distributor. Please retain the original packing material because it offers the best protection in case your equipment ever needs to be transported.
  • Page 332 SCore Live Ventilation Implementation A power dissipation estimation, considering the number of cards and their configuration within the frame, is strongly recommended. The following tables give some guidelines. Dissipation Card No. Card Name/Description (approx.) Backplane with power supply 10 W DSP cards: A943.0326 Host card...

  • Page 333: Adjustments, Repair, Cleaning

    C10804 may be operated without a fan unit as long as no redundant bridge card (*) is used. For OnAir 3000 installations, the slot order given below must be followed. (For slot numbering refer to chapter 2.2).

  • Page 334: Introduction

    SCore Live INTRODUCTION The SCore Live system occupies just 6U rack space and provides space for up to nine DSP cards. It also holds up to twelve D21m I/O cards of various formats in addition to one ( ) or two ( ) D21m general- purpose input/output (GPIO) card(s).

  • Page 335: Block Diagram

    AU O O AU O O AU O O ER ER RS422 A CO RO V3.0 an p O Slot O Slot for OnAir 3000 operation only The Frame and its Cards DSP Slot: GPIO (Vista) Signal Processing (DSP) GPIO HOST (OA3k)

  • Page 336: Bridge Card Redundancy

    SCore Live 2.2.1 Bridge Card Redundancy Since Vista SW V4.1, a redundant Bridge card can be used in the SCoreLive. This provides not only cable redundancy but also true bridge card redundancy. The order no. of the bridge card with this functionality is A943.0370.35 or later;...
  • Page 337 SCore Live Two (Redundant) Bridge Cards ( Vista SW V4.1 or later only) VISTA 9 PC 2 PC 1 LAN 1 LAN 1 IP: 192.168.1.128 IP: 192.168.1.129 IP: 192.168.4.129 IP: 192.168.3.128 SUBN: 255.255.255.0 SUBN: 255.255.255.0 LAN 2 LAN 2 IP: 192.168.2.128 IP: 192.168.2.129 IP: 192.168.4.128 IP: 192.168.3.129...

  • Page 338: Control Signal Flow

    SCore Live Control Signal Flow HD Link Desk EXT. BRIDGE GPIO CARD GPIO CARD DSP CARD DSP CARD DSP CARD DSP CARD SYNC PRIMARY PSU CARD CARD SCoreLive BACKPLANE TDM Bus Sync Bus System Clock Bus C Bus SECONDARY D21m BACKPLANE AUDIO I/O AUDIO I/O AUDIO I/O...

  • Page 339: Modules

    SCore Live MODULES SCore Live Modules Host Card A943.0326 DSP Pro Card A943.0360 A943.0370 Bridge Card (Redundant: A943.0370.35 and up) Ext. Sync Card A943.0331 Primary Power Supply DB15 A943.0304 PSII PCB A943.0301 SCore Backplane A943.0312 SCore Backplane for Merger A949.0406 Air Deflection/Filter Unit A949.0599 Fan Unit 1 U...

  • Page 340: Score Live Host Card

    SCore Live Host Card A943.0326 The Host card is the logical link between the Bridge card and the OnAir 3000 desk. It hosts the DNet mix engine control software. The backplane connector provides 5 V power to the card. The card can be hot-swapped, but requires a power off/on cycle in order to correctly initialize the DSP cards.
  • Page 341 During power-up of the core, the Host card STATUS LEDs are controlled by the embedded controller. After the operating system has successfully started and initialized, the application (e.g. OnAir 3000) is taking over the control over the LED bar. Power-Up The STATUS LED bar behavior depends on the setting of two DIP Switches on the Host card (switch 2: POST, switch 4: DISPLAY) .
  • Page 342 SCore Live Application Status Regardless of the settings of the DIP switches on the Host card the applica- tion is taking over the LED bar after successful initialization of the OS and indicates the following: Reserved for future use; always off Reserved for future use;...

  • Page 343: Score Live/Pro Dsp Card

    SCore Live SCore Live/Pro DSP Card A943.0360 The SCore Live/Pro DSP card is used in the SCore Live for digital audio pro- The SCore Live/Pro DSP card is used in the SCore Live for digital audio pro- cessing. The VDCA TDM bus interface allows the card to interchange audio data, serial data, and program code with the bridge card and other DSP cards.
  • Page 344 SCore Live 1 2 3 4 S2 Default Setting: LEDs IDLE / FAIL IDLE FAIL Card is ready and waiting for code Card is processing Card has detected an error and is disconnected from the TDM Bus Card is booting code (HD) LOCK Indicates a valid HD link signal at the corresponding input.

  • Page 345: Bridge Card

    Gigabit 64MByte (Core Gigabit Ethernet (QNX Image) Parameters) GMII ETH2 Battery / Port 2 Gold Cap D21m (OnAir 3000) UART 1 DDR RAM BUS 128MByte SCORE LIVE Audio UART 2 System Clock Bus Sync Subcircuit SCORE LIVE Sync Bus SCORE LIVE...
  • Page 346 OFF. IP Address ( When replacing a Bridge card in an SCore Live of an OnAir 3000 system, copy the IP address of the old card (can be found in the DSP.ini file) to the new card using Internet Explorer. Otherwise the system will not be operative.

  • Page 347: Bridge Card Ip Address Setting

    Bridge Card IP Address Setting Each Bridge card within the network must have its own, unique IP address. • Connect your computer to the OnAir 3000 network and login to the Bridge card’s web interface using a web browser (http://192.160.1.60/).

  • Page 348: Reset The Web If Password

    Connect to port 1 of the Bridge card using FTP User name = root Password = Obelix Open the folder /Studer/www/CGI-DATE/ Delete the existing password file: manager_passwd Now you can login on the Bridge card’s web interface using the default pass- word (studer).

  • Page 349: Ext. Sync Card

    SCore Live Ext. Sync Card A943.0331 The SCore Ext. Sync card acts as a connector panel for audio clock syn- chronization inputs and outputs. Three inputs (VIDEO IN, WCLK IN, and AES SYNC IN) can be used; their signals are sent to the SCore Live sync bus on the backplane.
  • Page 350 SCore Live EXT LOCK Indicates that the applied external sync is used by the system. DIP Switch Setting VIDEO IN termination (default setting OFF: High-Z / ON: 75 Ω) reserved (default setting OFF) reserved (default setting OFF) WCLK IN termination (default setting OFF: High-Z / ON: 75 Ω) Connector Pin Assignment AES SYNC IN + 3x OUT (15-pin D-type, female, UNC 4-40 thread) Signal...

  • Page 351: Primary Power Supply

    SCore Live Primary Power Supply A943.0304 The 200 W primary power supply unit is auto-ranging (100...240 VAC, 50...60 Hz) with integrated power factor correction. A status output signal is available on the 15-pin D-type front panel socket. The fan unit’s supply can be taken from this socket as well.

  • Page 352: D21M I/O Subsystem

    SCore Live For power supply to the fans and fan status monitoring, two connectors are provided – one at the front, the second at the rear of the unit. They are con- nected in parallel, so either one can be used depending on the application. If any of the fans should have a short or open circuit, the alarm signal is trig- gered.

Table of Contents

Save PDF
