Compact Infinity Core
Node Name
Communication Port
Use Multicast
Multicast Group Address
15 Compact Infinity Core
The name of this D23m frame.
Cloud Id
The Cloud Id of the IO Cloud.
Node Id
The Node Id of this D23m frame.
As a default, the communication Port for the communication with IO frames
is Port 3001.
This enables to use IP multicast group communication, making use of the
UDP protocol.
Here the IP multicast group address is defined. As a default, the Multicast
Group Address for the communication with IO frames is 239.255.23.1 .
Log level Here the level of details about the logged information is set.

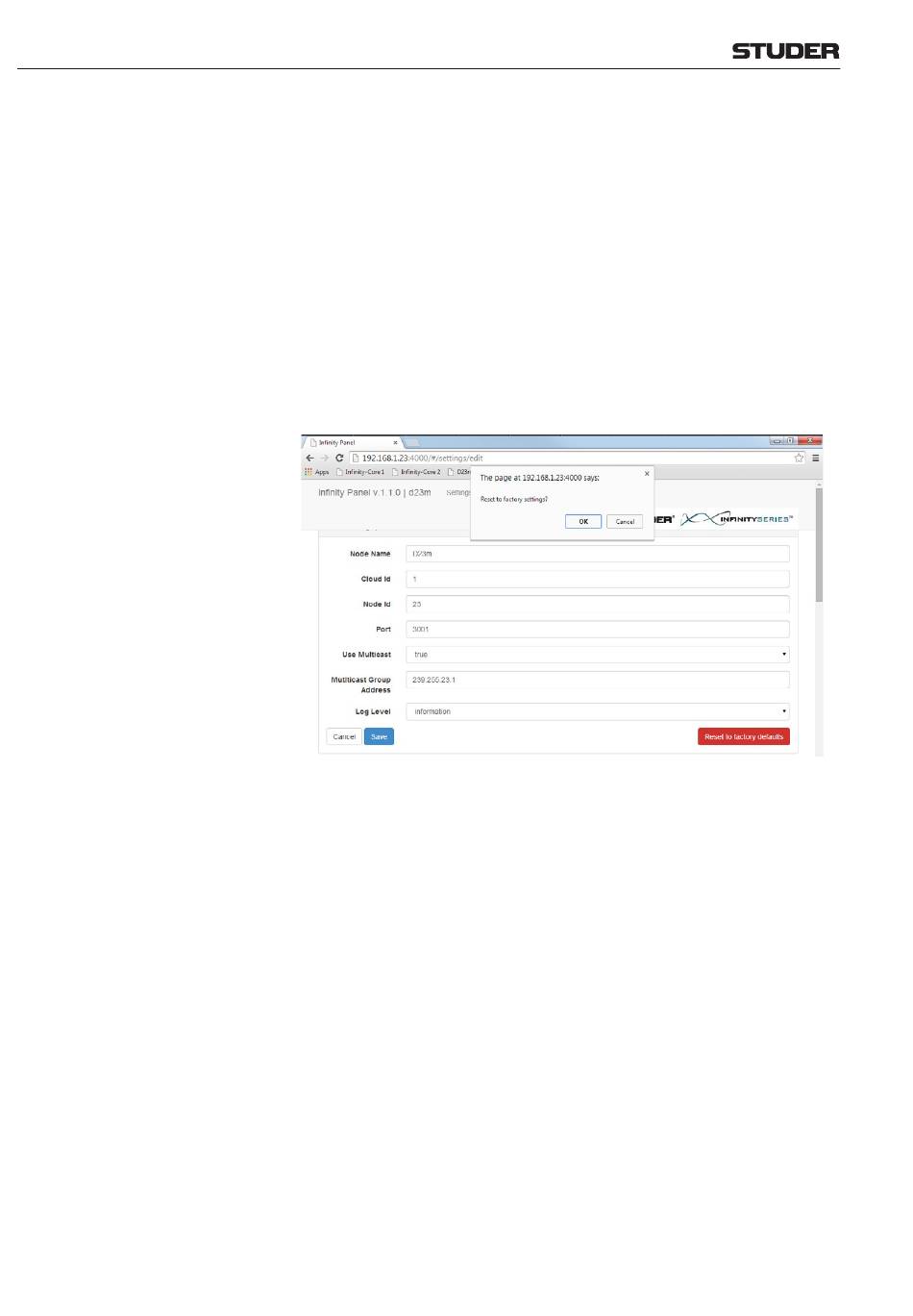

Going to the Settings page and clicking on the Edit button, there is also
the possibility to reset all parameters to the defualt values. This is done by
clicking on the red Reset to factory defaults button.
