Vista Surveyor Information

VMC Config
Mixer Config
Infinity
Inout/Output hardware
Document generated: 13.06.18

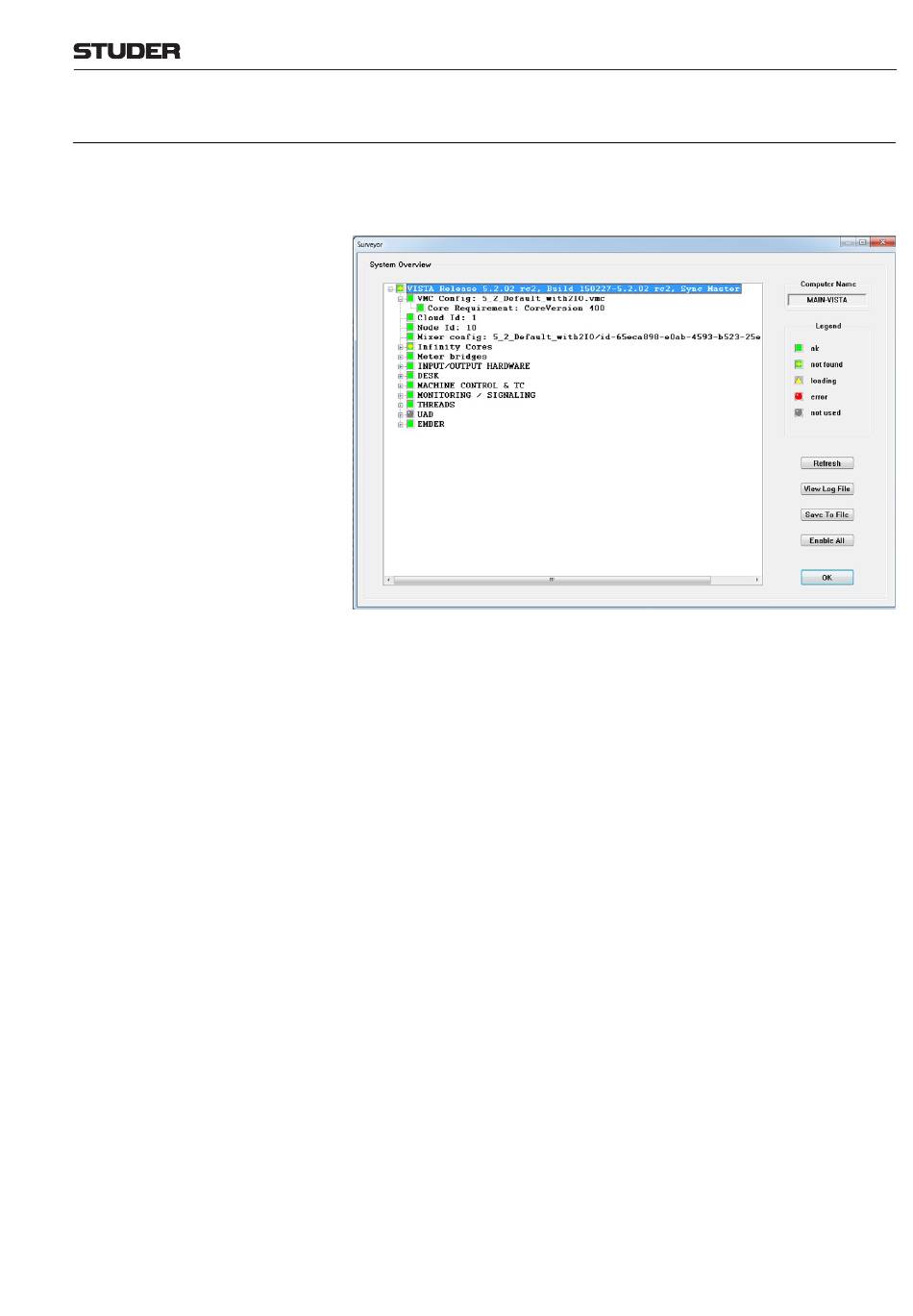

The status of the Infinity Core can be monitored through the Surveyor tool
on the Vista console. The core specific information shown in the Surveyor
tool is explained in this chapter.
The following lines are giving status information that is related to the Infinity
Core :
Shows the currently loaded Session Configuration that the title loaded on the
Vista desk is refering to. When clicking on this item, also the Core type that
is required to run this Session Configuration is shown.
Shows the currently loaded Session Configuration that the Core is refering
to. Here, also the Session Configurations unique Id number is shown.
Cores
Shows the state of the Infinity Core(s). Clicking on this item shows more
detailed information as explained further below.
Here the state of the D23m frames that are connected to the
shown. Clicking on this item, the view can be expanded to view the state of
every single I/O card.
Compact Infinity Core
Infinity Core is
Compact Infinity Core 20
