CNC-Step T-Rex Series Operating Instructions Manual page 63

1

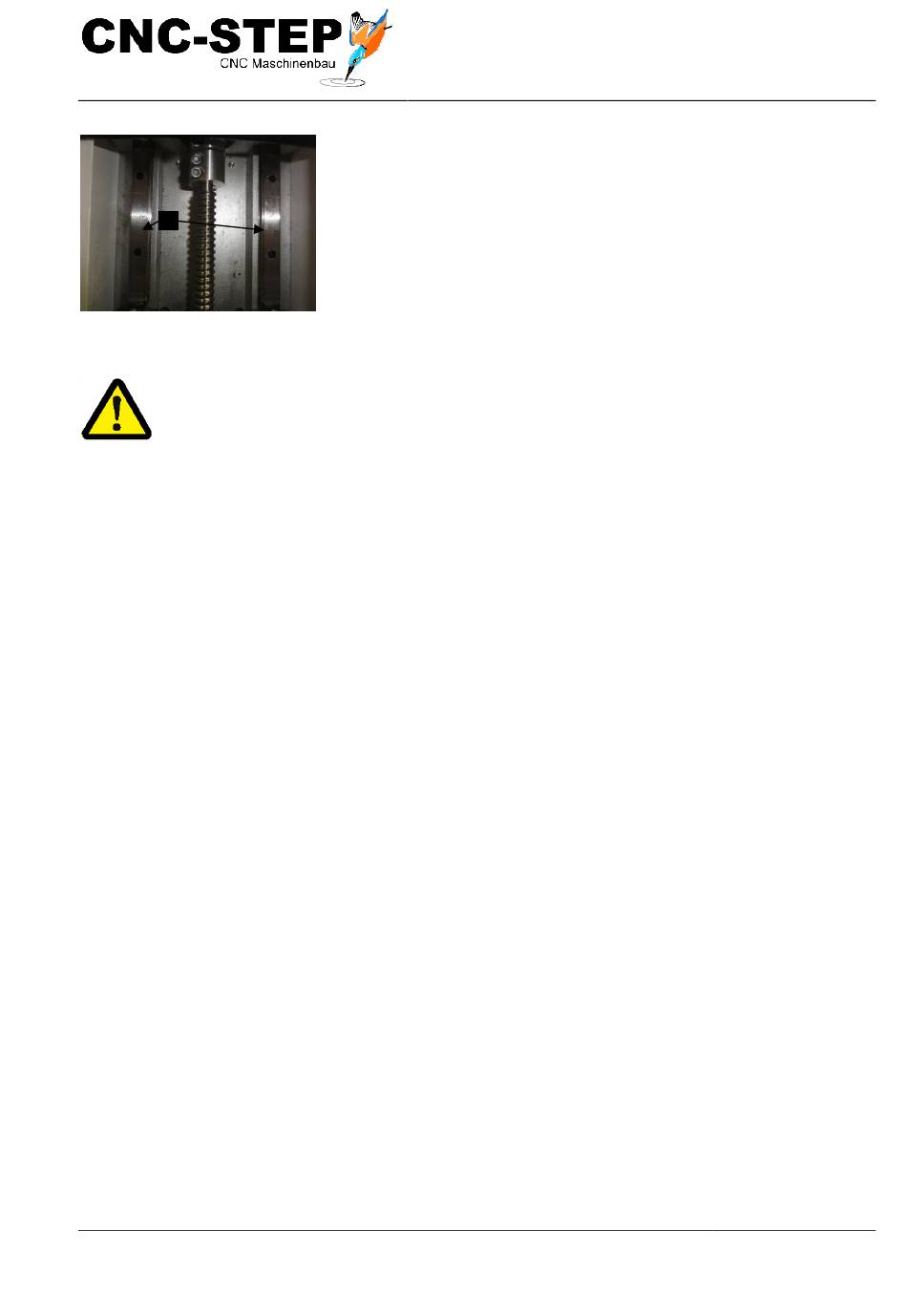

Fig.31: Linear guide of the Z-axis
ATTENTION:
Risk of health damage by contact with oil and grease!
Contact with oil and fat can lead to health damage.
• Avoid skin contact.
• Remove Oil and grease immediately from the skin.
• Do not inhale vapours.
Grease ball screw Spindle
Personnel:
Safety equipment:
CNC-STEP e.K. ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
4 Linear guides
Grease both linear guides of the Z-axis (Fig. 31/1) well using
low-friction grease soaked cloth DIN 61650 or alternatively
apply the grease with a suitable brush.
• Qualified personnel
• protective clothing
• Safety shoes
• Chemical-resistant gloves
