4 .5 C o n n e c t i o n s

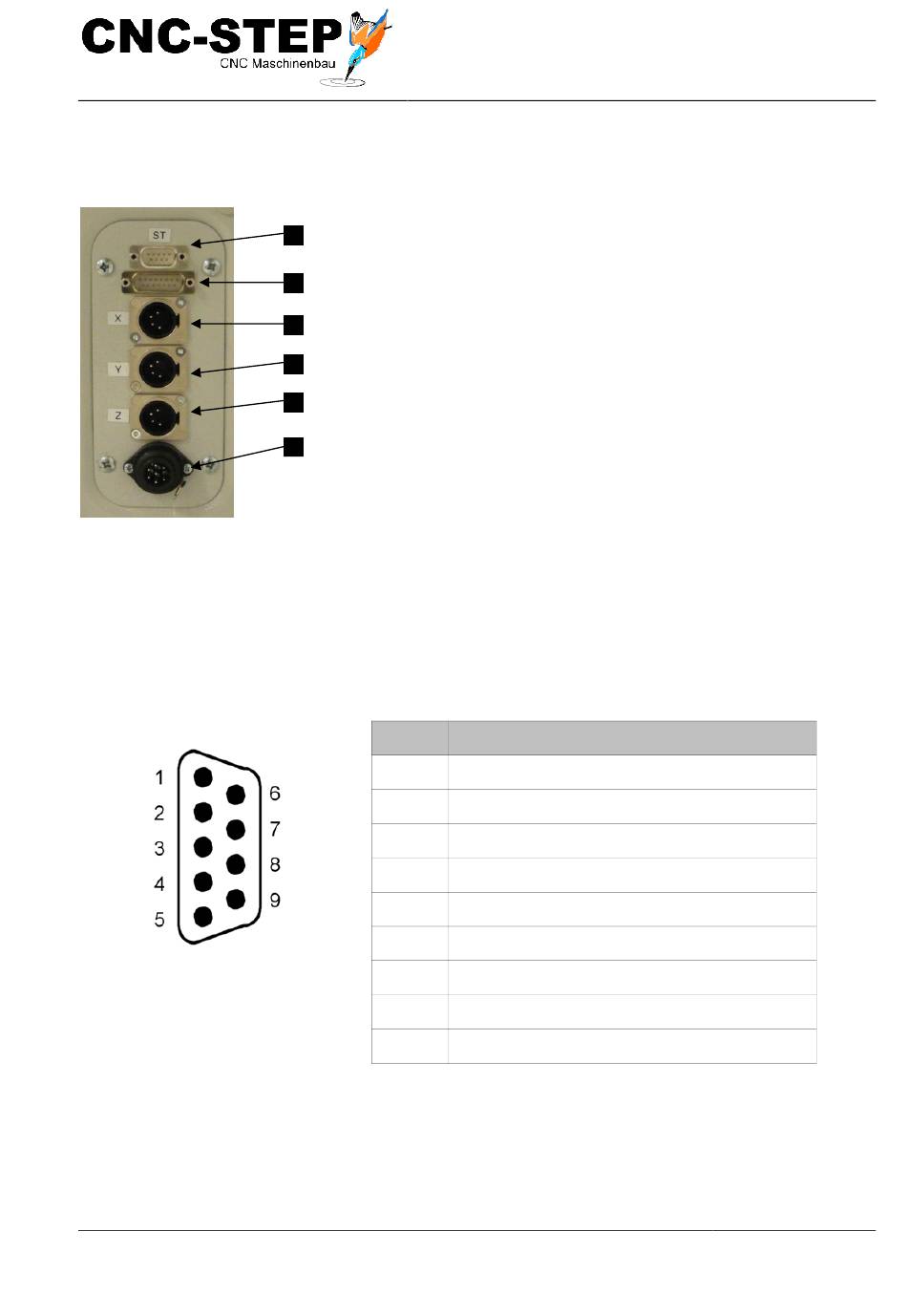

Fig. 17: Connections
4 .5 .1 C o n t ro l s i g n a l s ( S T )
Fig. 18: Assignment ST connector
Sub-D
CNC-STEP e.K. ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
The connectors of the step motor cables or control line ST are
1
labelled as follows:
• Connection ST emergency stop, reference switch and
2
socket pin 15. (Fig. 17/1)
3
• Motor connection C step motor, the C-axis including
the reference switch (tangential knife to the Z-axis)
4
(Fig. 17/2)
5
• Motor connection to the X-axis (Fig. 17/3)
• Motor connection of the Y-axis (Fig. 17/4)
6
• Motor connection of the Z-axis (Fig. 17/5)
• connector HF-spindle on the Z-axis (Fig. 17/6)
Pin Nr. Signal
Limit C / Pin15 jack High-Z
1
limit X
2
limit Y
3
limit switch Z
4
Emergency stop (closed = OK, open = stop)
5
N.C.
6
N.C
7
N.C.
8
Ground, shield
9
