4 .3 .2 Y- a x i s w i t h c a r r i a g e

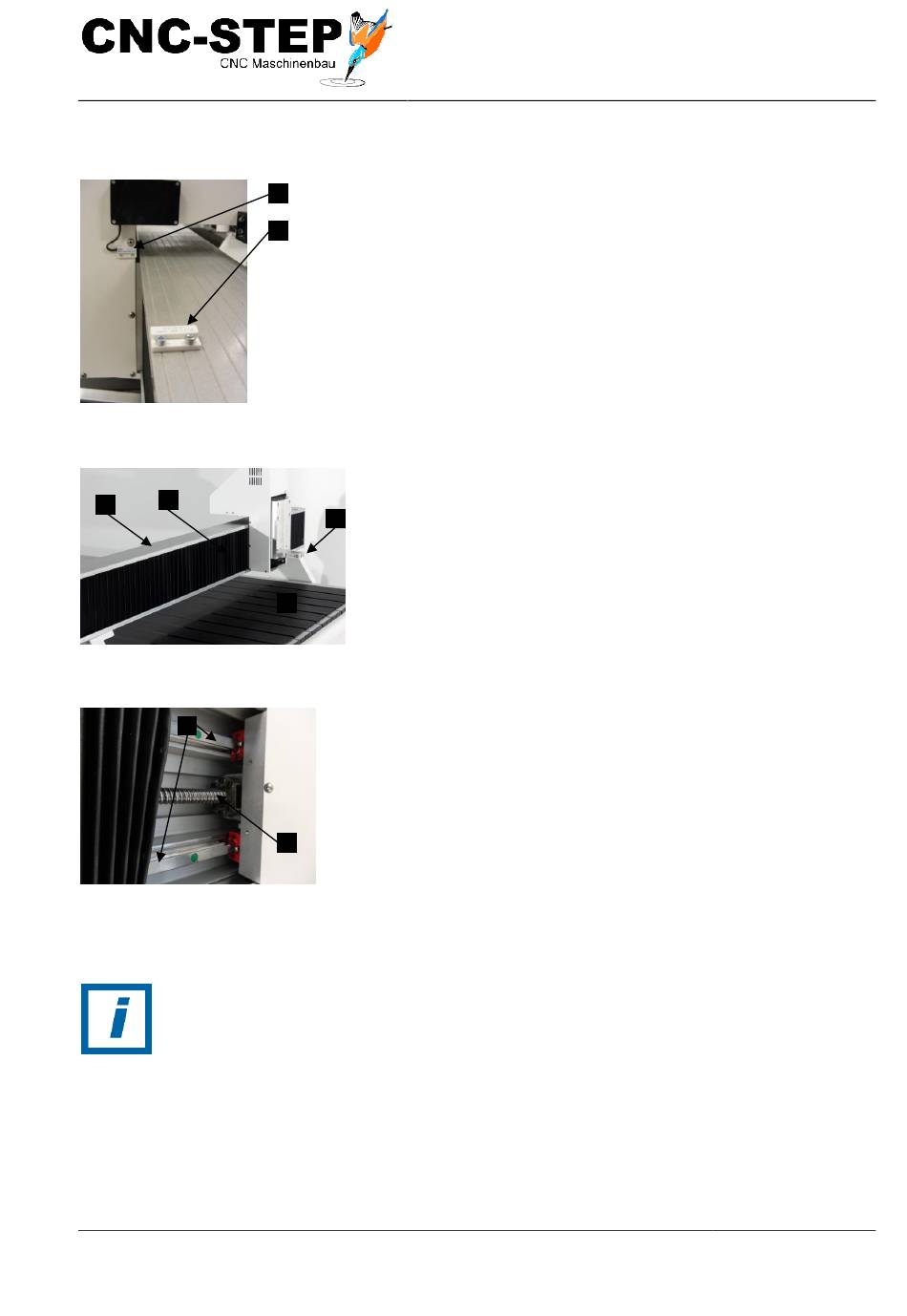

Fig. 10: Y-Bridge
3
1
Fig. 11: Y-bridge
1
Fig.12: Y-carriage bellow opened
HINT:
Reference switches are required for axes without absolute position encoder to
feature in the initialization of the axis by a known reference point (zero point of the
axis). From this position, all other positions are then calculated relative to the
process of the axis via software.
CNC-STEP e.K. ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
1 Reference switch Y-axis
1
2 Magnetic contact Y-axis
2
1 Y-bridge
2 Tool holder (43H7 holder)
2
3 bellow
1 Linear guides
2 Ball screw
The two linear guides (Fig. 12/1) and the ball screw (Fig. 12/2)
are located on the Y-bridge (Fig. 11/1) and represent the y-axis.
Along the Y-bridge the tool holder(Fig. 11/2) is moved with
2
suitable tool(43H7 tool holder).
