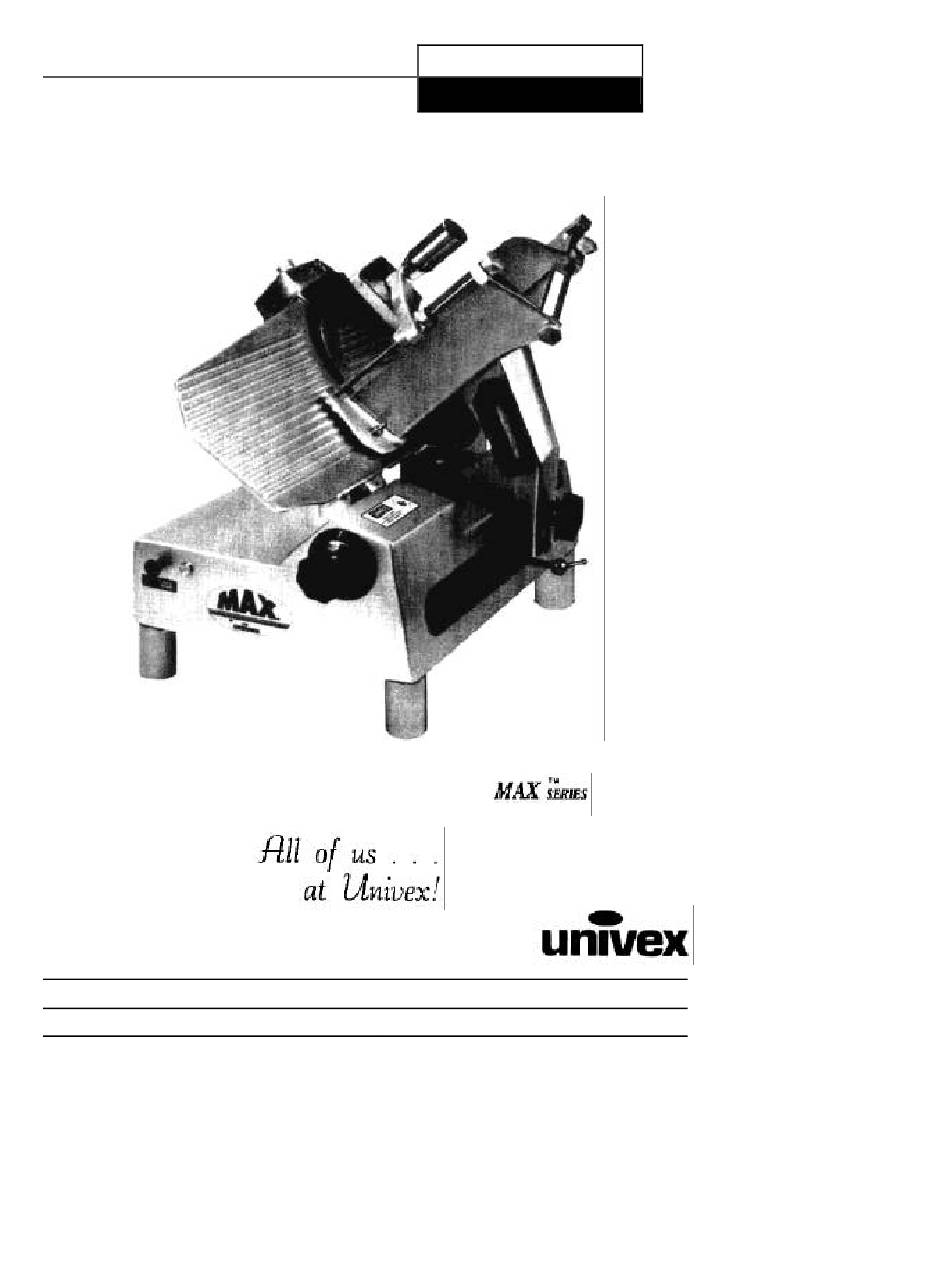

  • Page 1 INSTRUCTION 8512 MANUAL Slicer SERIES WE THANK YOU FOR YOUR PURCHASE OF OUR MODEL 8512 SLICER. 8512/498...

  • Page 2: Table Of Contents

    8512 TABLE OF CONTENTS DESCRIPTION PAGE Table of Contents List of Illustrations Introduction Installation Instructions Safety Warnings Operating Instructions Sharpening Instructions Operator's Care of Slicer - Cleaning Instructions Lubrication Instructions Trouble Shooting Guide Repair Instructions Including Disassembly, Replacement and Reassembly 9-11 Replacement Parts 12-21...

  • Page 3: Figure 1 Overall View Of Meat Slicer

    8512 OVERALL VIEW OF MEAT SLICER MODEL 8512 Figure 1 1 INDICATOR LIGHT CARRIAGE ARM 2 ON-OFF SWITCH 10 ELECTRIC CORD 3 FENCE 11 CARRIAGE ARM KNOB 4 KNIFE SHARPENER 12 AUTO CLUTCH LEVER 5 KNIFE GUARD 13 PROTECTIVE GUARD 6 CARRIAGE 14 GRADUATED KNOB 7 ADJUSTMENT SPACER...

  • Page 4: Introduction

    For SAFETY, follow the cleaning instructions on Page 6. INSTALLATION The most efficient installation of your Univex slicer will depend upon the layout of your kitchen. Locate your slicer where it will save steps for the operator and be sure to provide sufficient clearance around it for ease of maintenance and cleaning, as well as for efficient and safe use.

  • Page 5: Operating Instructions

    8512 OPERATION INSTRUCTIONS The Univex slicer is designed to meet the cook's demand for an efficient, sturdy slicer. The Univex slicer will give unfailing performance over a period of years, when operated and maintained according to instructions contained herein. START/STOP SWITCH The slicer is started by pulling the ON/OFF switch (Figure 1 [2]) out to the ON position.

  • Page 6: Operator's Care Of Slicer - Cleaning Instructions

    8512 3. The knife cutting area should be clean and free from food, especially grease. Grease will ruin the ability of a grinding stone to sharpen an edge. The stone simply will not cut. If cleaning is necessary, follow the procedure outlined on Page 6. Remember to unplug the electrical supply cord.
  • Page 7 8512 Never use detergents nor wash the slicer or any of its parts is a dishwashing machine or the clear protective finish will be damaged. Warning Wash body of slicer using warm water and mild soap using a clean soft cloth. Under no circumstances should the slicer be hose rinsed.

  • Page 8: Lubrication Instructions

    8512 LUBRICATION INSTRUCTIONS A = Clean and apply mineral C = 140 WT USDA oil. oil weekly. Change when changing gears B = Apply Petro-Gel (4400408) often as D = Lubricated for life. required to maintain light film. Page7...

  • Page 9: Troubleshooting Guide

    8512 TROUBLESHOOTING GUIDE TROUBLE POSSIBLE CAUSE REMEDY 1. Slicer will not operate. 1.1 Electrical service down. 1.1 Check electrical service. Replace fuse or reset circuit 1.2 Burned switch contacts. breaker as necessary. 1.3 Motor capacitor defective. 1.2 Clean or replace. 1.3 Replace 1.4 Burned out motor.

  • Page 10: Repair Instructions Including Disassembly, Replacement And Reassembly

    8512 REPAIR INSTRUCTIONS (including disassembly, replacement and reassembly) KNIFE (Removal) (Figure 3) 1. WARNING Disconnect electrical power cord. 2. Remove carriage assembly (Fig. 6). 3. Remove knife guard knob (Fig. 3 [35]) and carefully remove knife guard. 4. Loosen sharpener lock pin (Fig. 7 [13]), lift and relock in up position. 5.
  • Page 11 8512 E. Remove lama by turning counter-clockwise. F. Push knife support assembly from bottom and remove. 2. GEAR REPLACEMENT A. With knife support assembly removed, check gear (Fig. 3 [7]) for wear. If worn, replace. B. Remove snap ring (Fig. 3 [6]). C.
  • Page 12 8512 ELECTRICAL ASSEMBLY 1. WARNING DISCONNECT ELECTRICAL SUPPLY 2. Remove four rubber feet (Fig. 2 [24]) and 4 extension legs (Fig. 2 [52]). 3. Remove bottom cover (Fig. 2 [19]). 4. Remove casing cover (fig. 8 [22]). 5. Discharge capacitors by jumping across terminals with electrically protected screwdriver. 6.

  • Page 13: Replacement Parts

    8512 BASE ASSEMBLY Figure 2 ILLUS. NO. PART NO. DESCRIPTION QTY. 8512300A SUPPORT, CARRIAGE, ALSO FIG. 4 [6] 6509098 SET SCREW, M6-1.0 X 8MM 8512823 BOLT, CONE CLUTCH 8512826 BUSHING, SPRING 8512827 SET SCREW, M5-0.8 X 5MM 8512828 SPRING 8512824 8512829 KNOB, CONE CLUTCH 8512818...
  • Page 14 8512 BASE ASSEMBLY Figure 2 (CONT.) ILLUS.NO. PART NO. DESCRIPTION QTY. 8512835 PULLEY (For 115V/100V) 8512835A PULLEY (For 220V) 8512837 V BELT (For 115V/100V) 8512837A V BELT (For 220V) 8512637 VENT, PLASTIC 8512248 LEG, EXTENSION Page 13...

  • Page 15: Figure 3 Casting And Blade Assembly

    8512 CASTING and BLADE ASSEMBLY Figure 3 ILLUS. NO. PART NO. DESCRIPTION CASTING 8512203 8512215 SEAL 8512216 SEAL 8512217N ROD, CUTTER SUPPORT 8512218 RETAINING RING 8512220 GEAR 8512222A SUPPORT, BLADE, INCLUDES 4 THRU 13 8512223 SPACER, BEARING 1030019 BEARING 8512225 RETAINING RING 8512226 BUSHING, TAPERED...
  • Page 16 8512 CASTING and BLADE ASSEMBLY Figure 3 Page 15...

  • Page 17: Figure 4 Arm Assembly

    8512 ARM ASSEMBLY Figure 4 ILLUS. NO. PART NO. DESCRIPTION QTY. 7510038 RUBBER SHOCK ABSORBER 8512314 SPRING, DAMPER 8512313 SCREW, SOC HD CAP M8-1.25 X 30MM 8512312 ROD, ROUND GUIDE 8512301 BUSHING 8512300 ARM SUPPORT 8512316 BAR, FRAME 8512318 WASHER, EXTERNAL TOOTH 8512317 SCREW 6509033...

  • Page 18: Figure 5 Slice Control Assembly

    8512 SLICE CONTROL ASSEMBLY Figure 5 ILLUS. NO. PART NO. DESCRIPTION QTY. 7510067 BOLT, SOC HD CAP M6-1.0 X 20MM 8512527 BOLT, HEX HD M8-1.25 X 30MM 8512526 8512525 WASHER, EXTERNAL TOOTH M6 7510065 SCREW, HEX HD M6-1.0 X 20MM 7512076 SUPPORT, TAPER 8512839...

  • Page 19: Figure 6 Carnage Assembly

    8512 CARRIAGE ASSEMBLY Figure 6 ILLUS NO. PART NO. DESCRIPTION QTY. 8512432 SPACER, ADJUSTMENT 8512437 STUD & KNOB, ADJUSTMENT SPACER 8512448 STUD 8512433 BUSHING, ADJUSTMENT SPACER 8512925 SUPPORT, LAST SLICE DEVICE 8512924 HANDLE, LAST SLICE DEVICE 8512926 LAST SLICE DEVICE 6509153 KNOB, LAST SLICE DEVICE SHAFT 8512428...

  • Page 20: Figure 7 Sharpener Assembly

    8512 SHARPENER ASSEMBLY Figure 7 ILLUS NO. PART NO. DESCRIPTION QTY. 7510151 SHARPENER ASSEMBLY WITH COVER 6509153 KNOB, COVER 6509151 COVER, SHARPENER 6509150 NUT, COVER SPACER 6509149 SPACER. COVER 6509125 WASHER, SET PIN 6509137 SCREW 6509138 WASHER 7510120 SET PIN, SHARPENER 8512728 PIN, SHARPENER CASTING 6509147...

  • Page 21: Figure 8 Electrical Assembly

    8512 ELECTRICAL ASSEMBLY 115v, 60hz, 1ph 220v, 50hz, 1ph Figure 8 ILLUS. NO. PART NO. DESCRIPTION QTY. 8512844 MOTOR, 115V, 60HZ, 1PH, 1/2HP, 100V, 50/60HZ, 1PH 8512844A MOTOR, 220V, 50HZ, 1PH, 1/2HP 8512601 8512602 RUBBER SHOCK ABSORBER 8512932 WORM GEAR 8512935 BUSHING/NUT 8512644...
  • Page 22 8512 ELECTRICAL ASSEMBLY Figure 8 Page 21...

  • Page 23: Figure 9 Schematic 115V, 60Hz, 1Ph, 100V, 50/60Hz, 1Ph

    8512 SCHEMATIC 115V, 60HZ, 1PH 100V. 50/60HZ, 1PH Figure 9 Page 22...

  • Page 24: Figure 10 Schematic 220V, 50Hz, 1Ph

    8512 SCHEMATIC 220V, 50HZ, 1PH FIGURE 10 Page 23...
