BEA EAGLE ARTEK Installation Manual

JOIN OUR
COMMUNITY!
DESCRIPTION
1
2
5
TECHNICAL SPECIFICATIONS
Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Max. detection range:
Min. detection speed:
Supply voltage**:
Max power consumption:
Output**:
Max. switching voltage:
Max. switching current:
Mounting height:
Degree of protection:
Temperature range:
Dimensions:
Tilt angles:
Material:
Weight:
Cable length:
* Other use of the device outside of the permitted purpose can not be guaranteed by the manufacturer.
** External electrical sources must be within specified voltages, max 15W and ensure double insulation from primary voltages.
EAGLE ARTEK

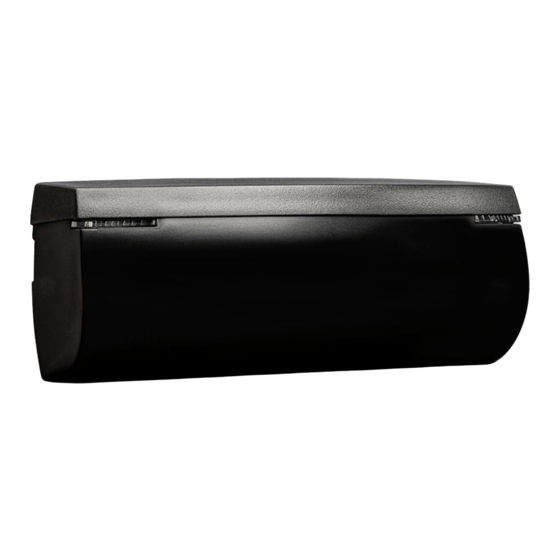

UNIDIRECTIONAL OPENING SENSOR
FOR AUTOMATIC DOORS*
User's Guide for software version SW 0100 and higher.
(refer to tracking label on product).
Microwave
24.15 GHz
< 20 dBm EIRP
< 5 mW/cm²
Motion
Wide : 4 m × 2m | Narrow : 2 m × 2.2 m @2.2 m high
5 cm/s
12V to 24V AC +/- 10% (50 - 60 Hz) ; 12V to 24V DC +30% / -10%
< 1 W
Solid-state relay (free of polarity)
30V AC / 42V DC
100mA (resistive)
From 1.8 m to 4 m
IP54 (IEC/EN 60529)
From -20 °C to + 55 °C
120 mm (L) × 50 mm (H) × 50 mm (W)
0° to 90° vertical; -30° to +30° lateral
ABS
120 g
2.5 m
3
4
1.
2.
3.
4.
5.
Specifications are subject to changes without prior notice.
Measured in specific conditions.

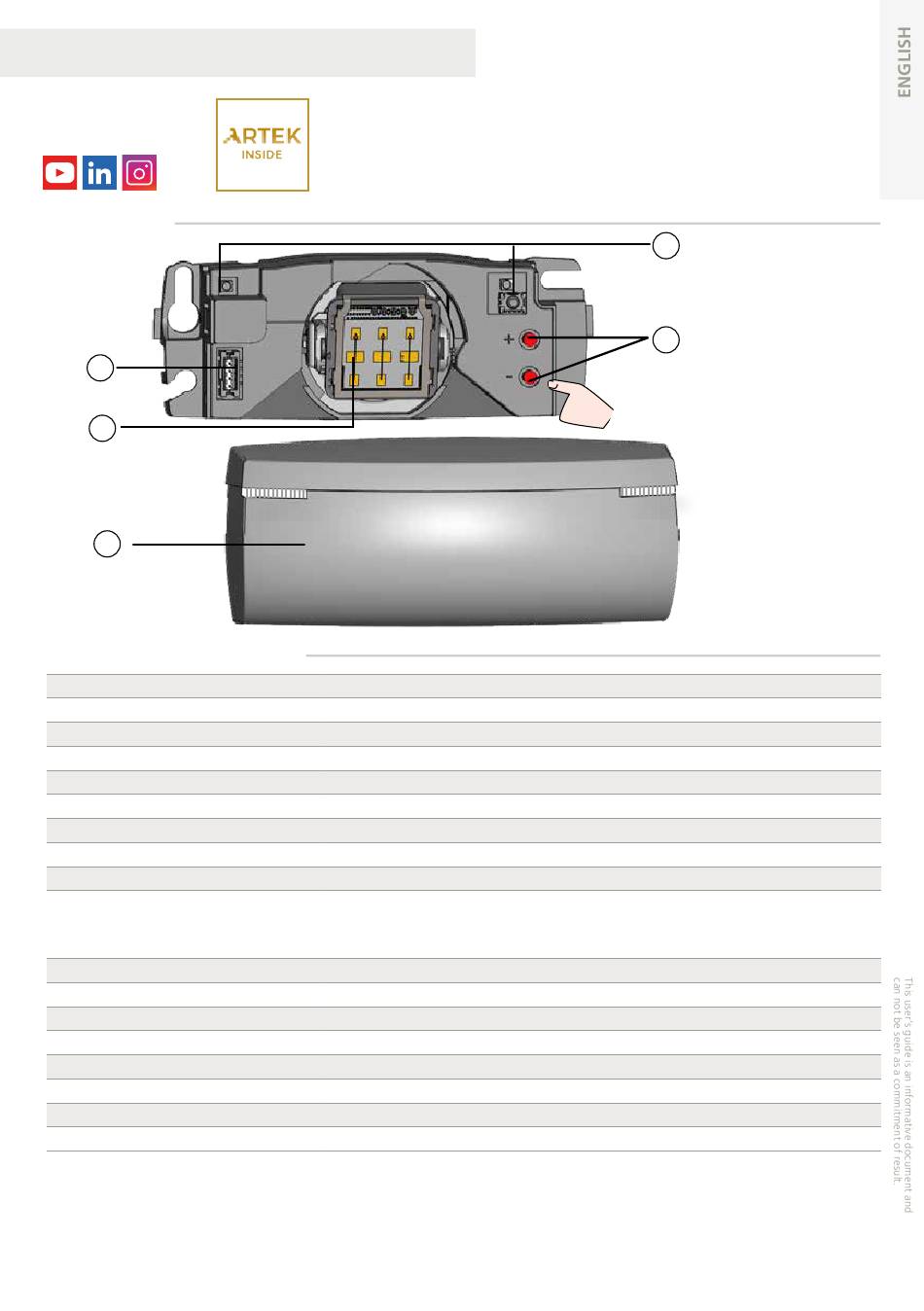

main connector
antenna
LEDs
push buttons
cover
1
